Cigarette Lighter and Charging Sockets (As of 09/02 Up To 09/06)

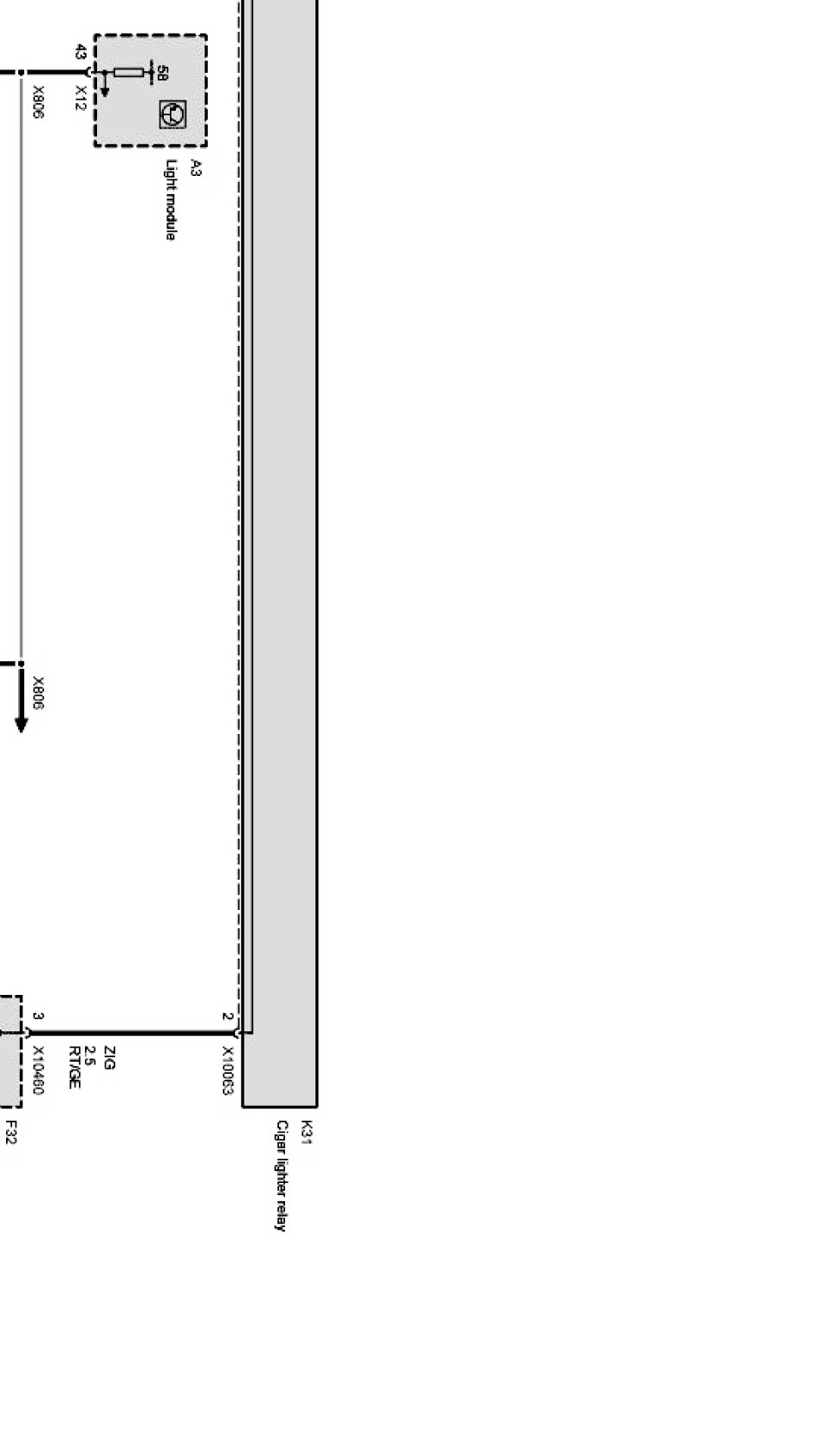

Cigarette lighter and charging sockets Part 1:

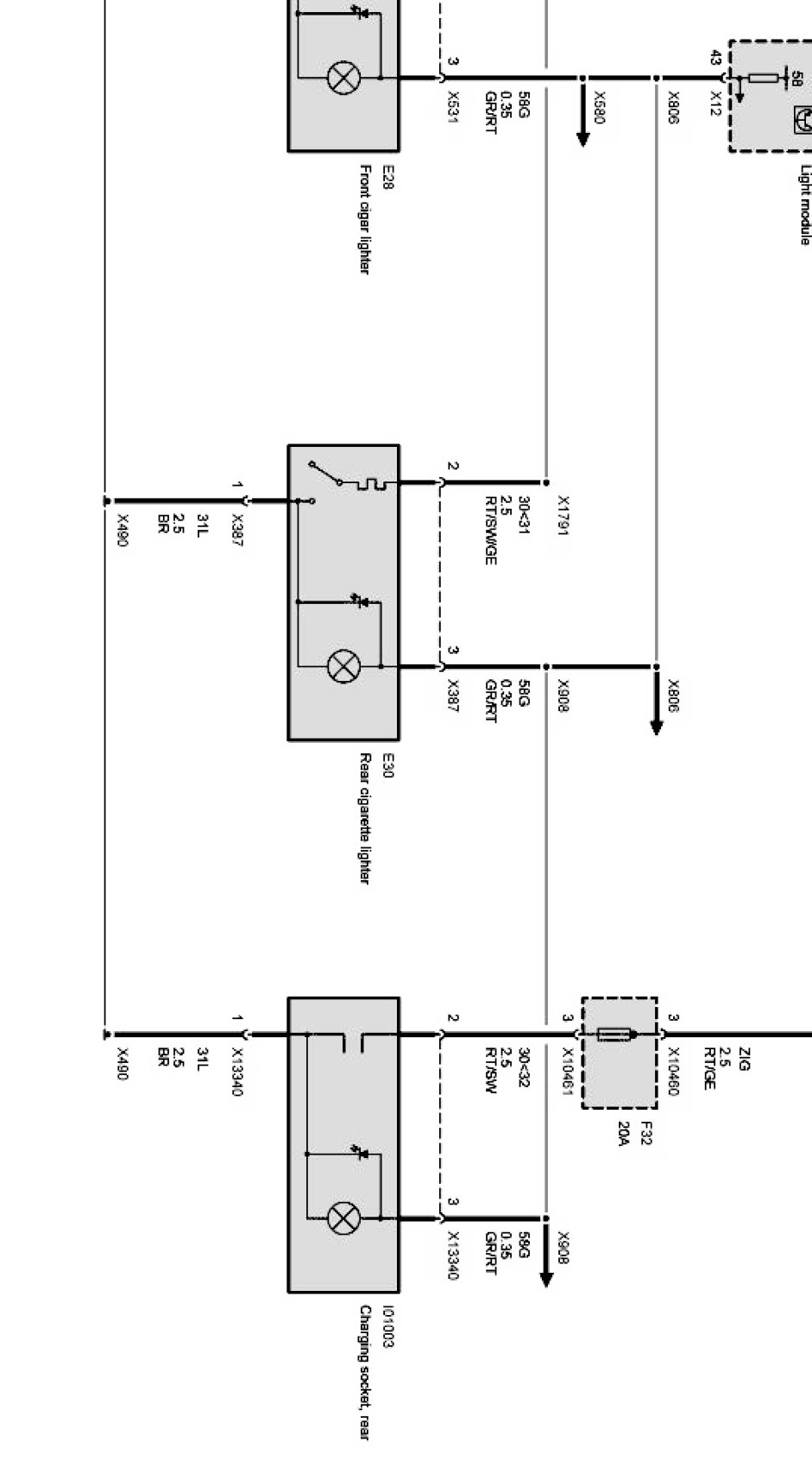

Cigarette lighter and charging sockets Part 2:

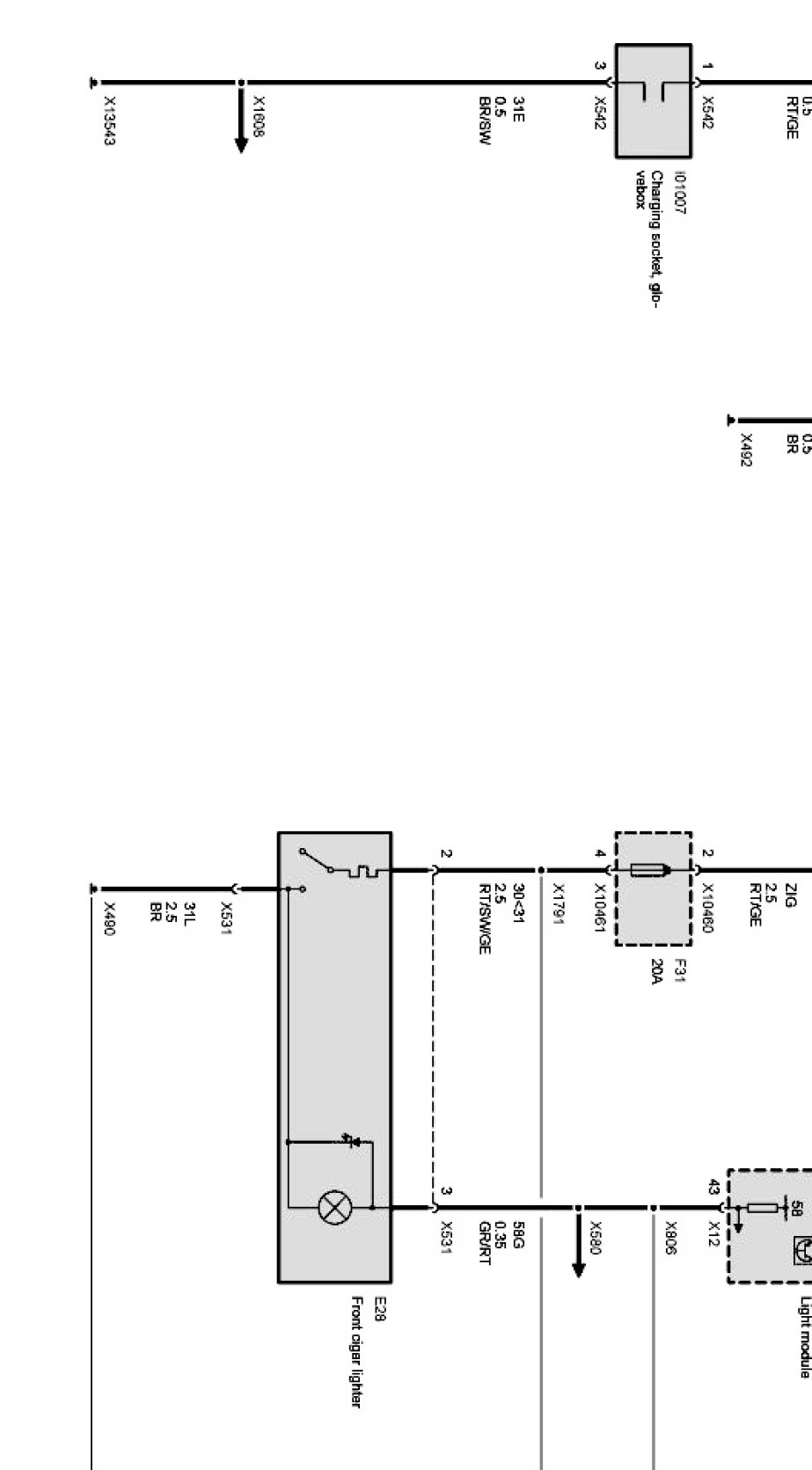

Cigarette lighter and charging sockets Part 3:

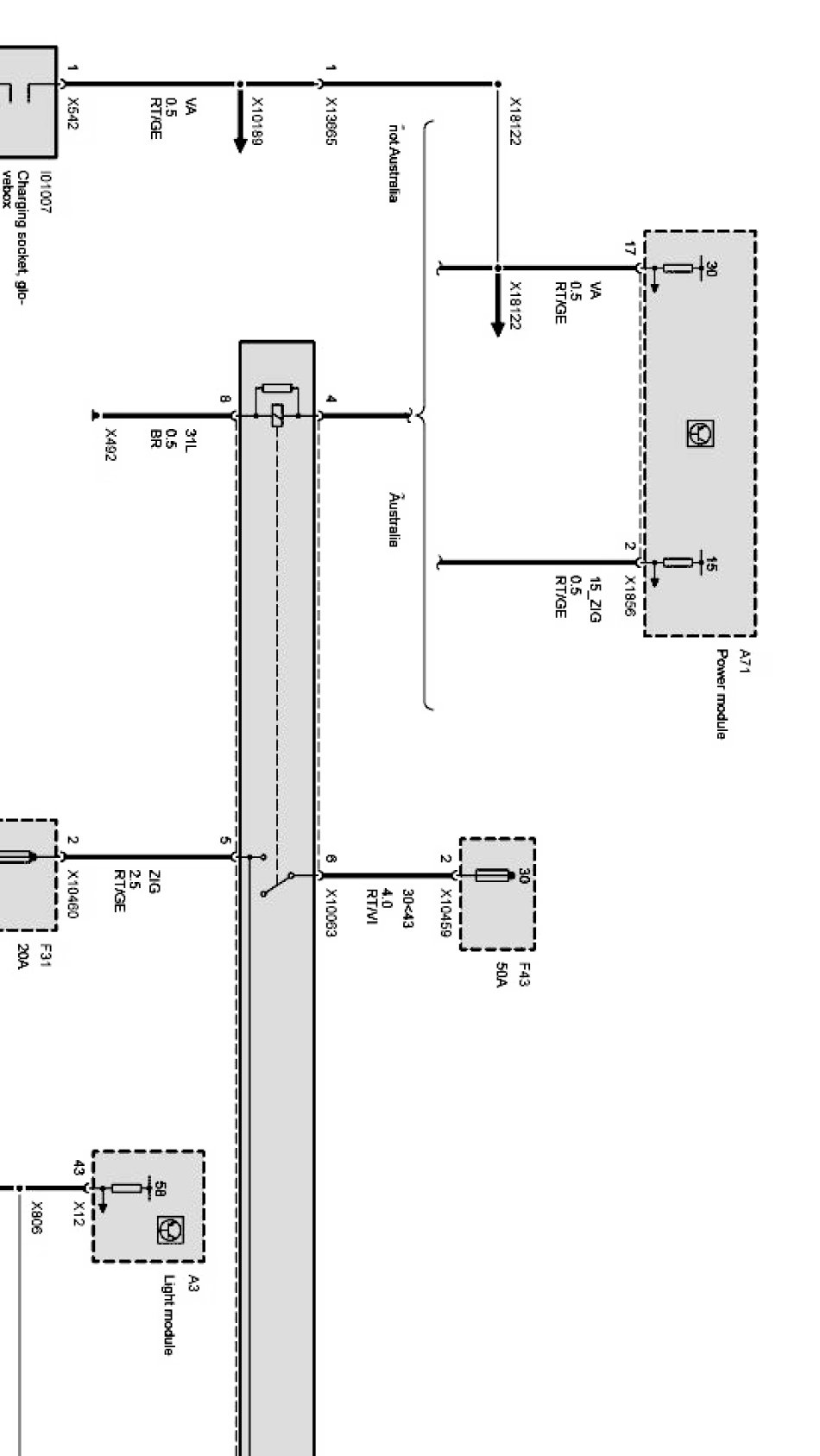

Cigarette lighter and charging sockets Part 4:
