A23 Driver's Door Module (As of 09/02 Without CA Comfort Access Without Soft Close)

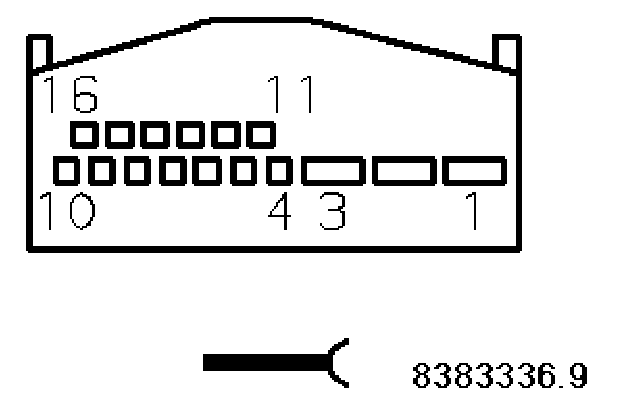

X1128:

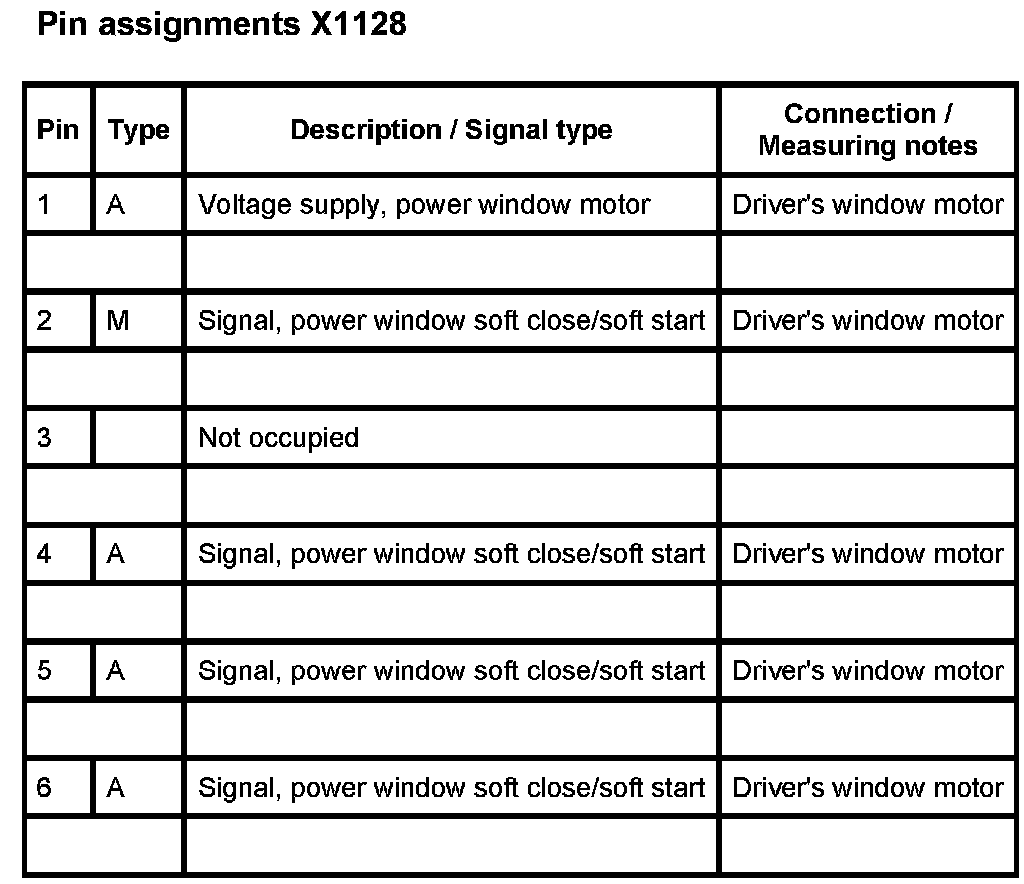

X1128 - Part 1:

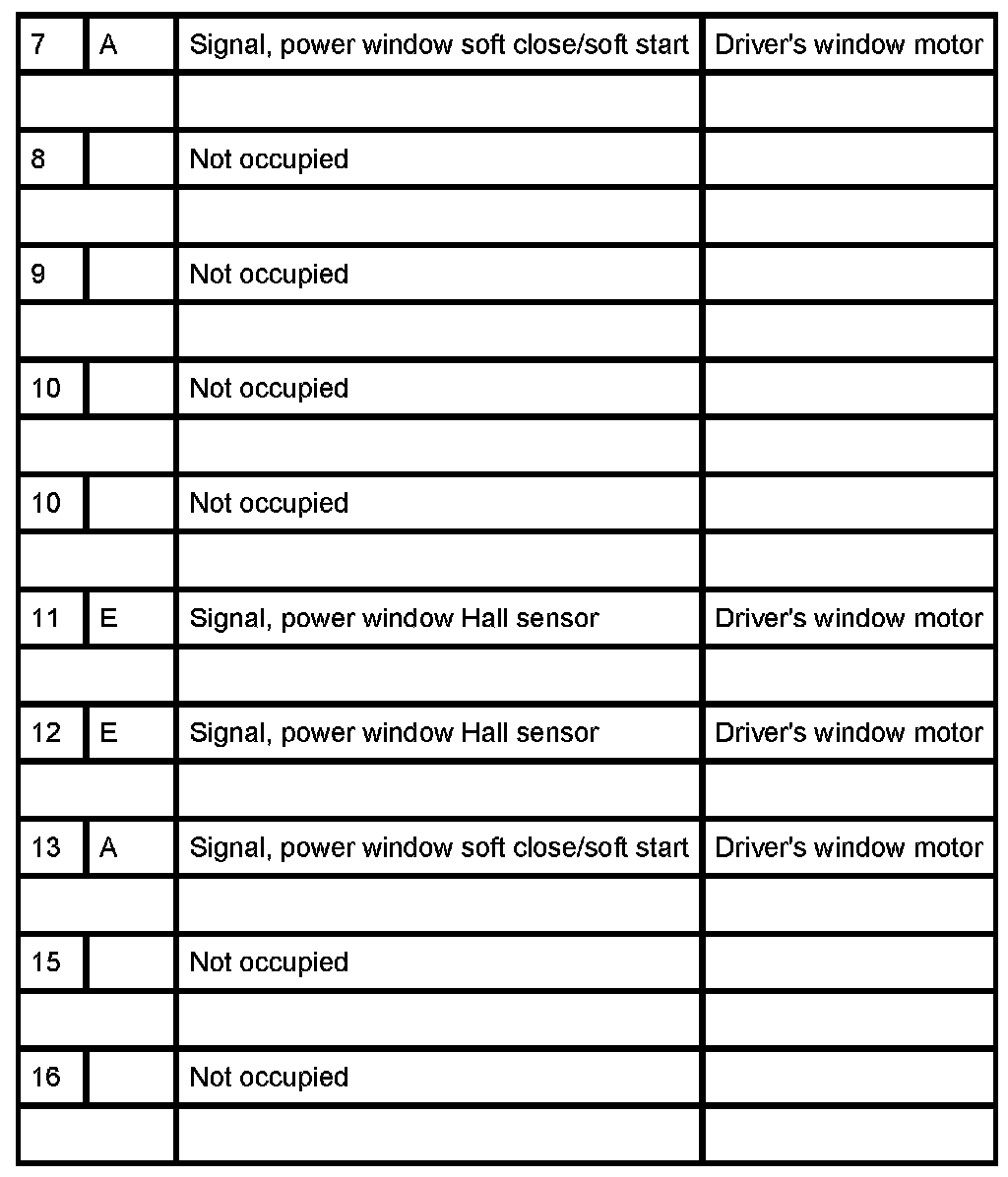

X1128 - Part 2:
