Home >> BMW >> 2007 >> 750Li (E66) V8-4.8L (N62TU) >> Repair and Diagnosis >> Body and Frame >> Bumper >> Front Bumper >> Front Bumper Cover / Fascia >> Service and Repair >> 51 11 ... - Overview of front bumper (from 03/05)

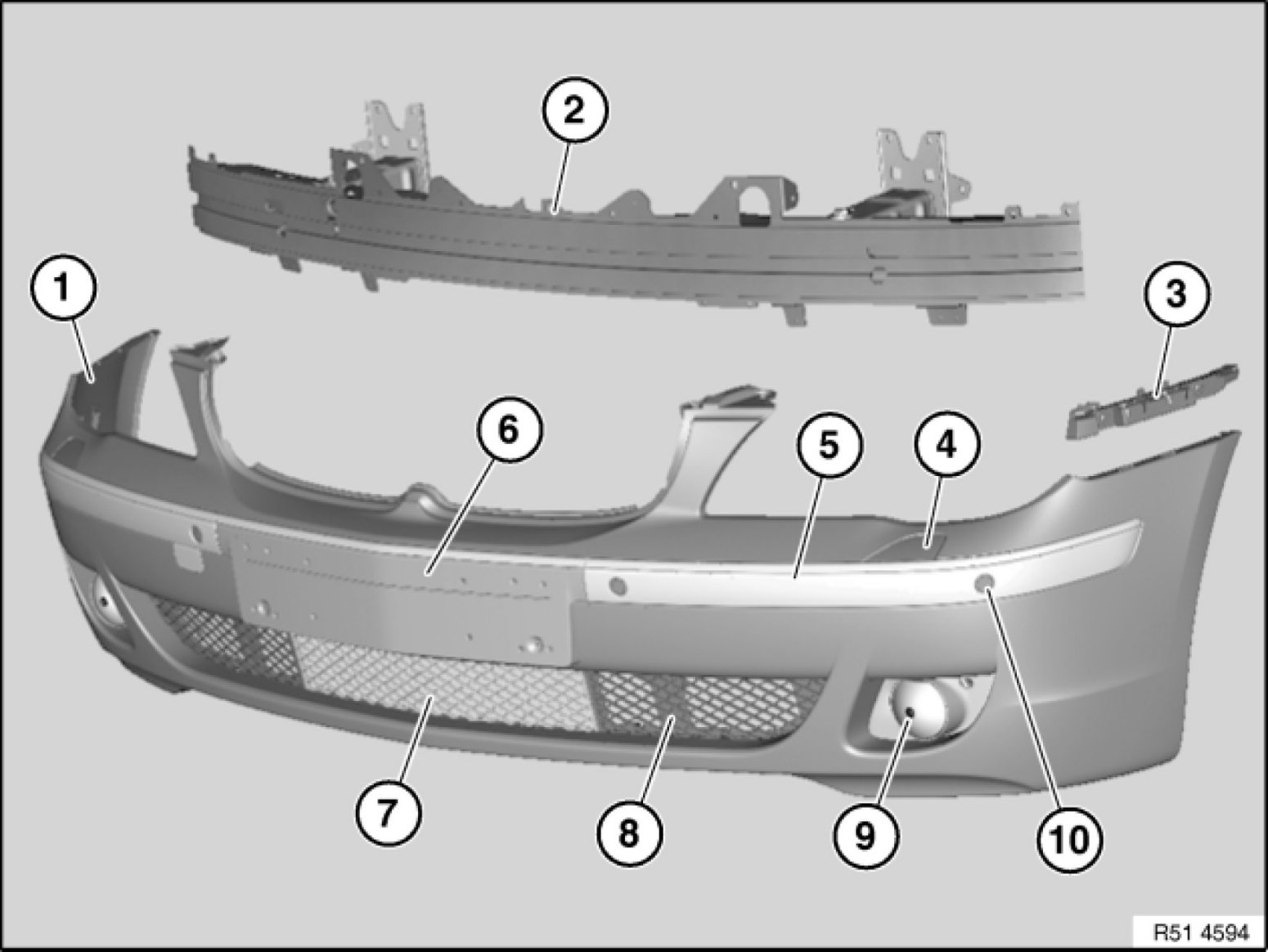

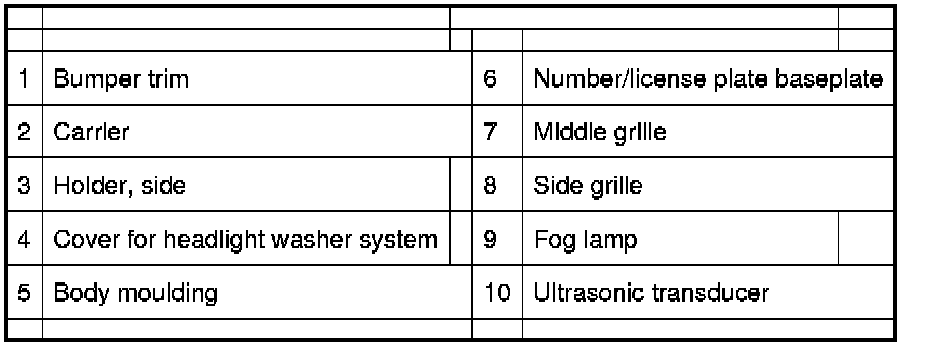

51 11 ... - Overview of front bumper (from 03/05)




51 11 ... - Overview of front bumper (from 03/05)
