Removing and Installing/Replacing Audio Unit (On Rear Center Armrest)

61 31 371 - Removing and installing/replacing audio unit (on rear center armrest)





Necessary preliminary tasks:
- Remove rear center head restraint Removing and Installing/Replacing Rear Middle Head Restraint.
- Remove rear trim Removing and Installing/Replacing Wood Trim on Rear Center Armrest.
- Remove control unit in rear center armrest Removing and Installing (Replacing) Control Unit in Center Armrest at Rear.





Installation:

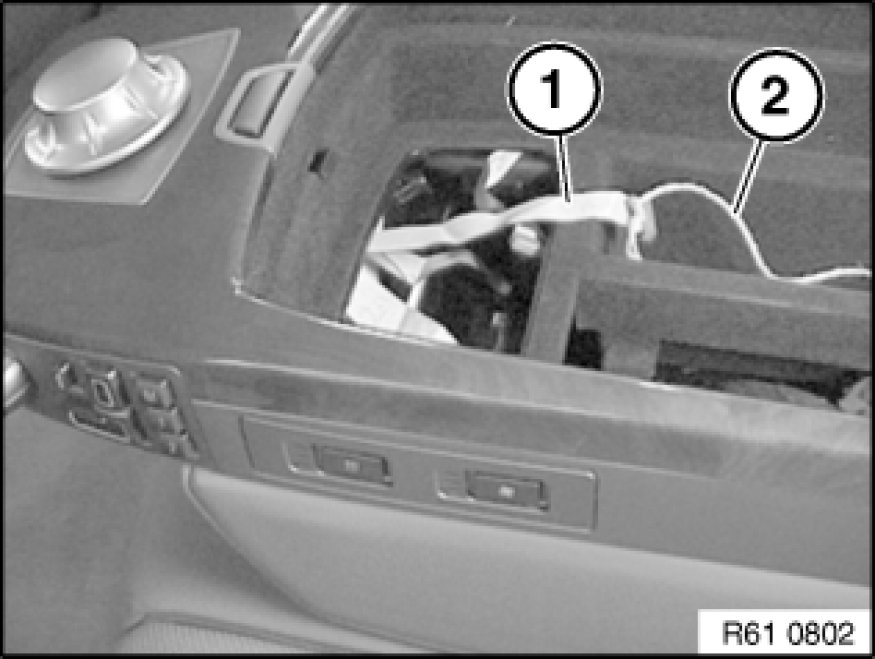

Attach a cord (2) as illustrated to lead for audio unit (1) to make it easier to feed in later.

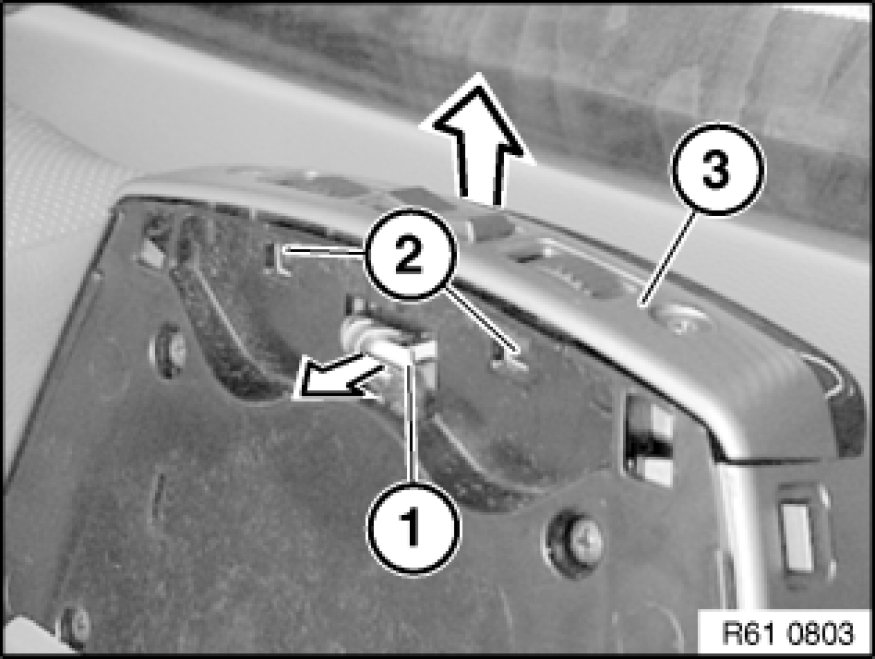

Disconnect plug connection (1) in direction of arrow.
Press catches (2) and remove audio unit (3) in direction of arrow.
