Replacing Front Ride-Height Sensor

37 14 511 - Replacing front ride-height sensor





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Note:

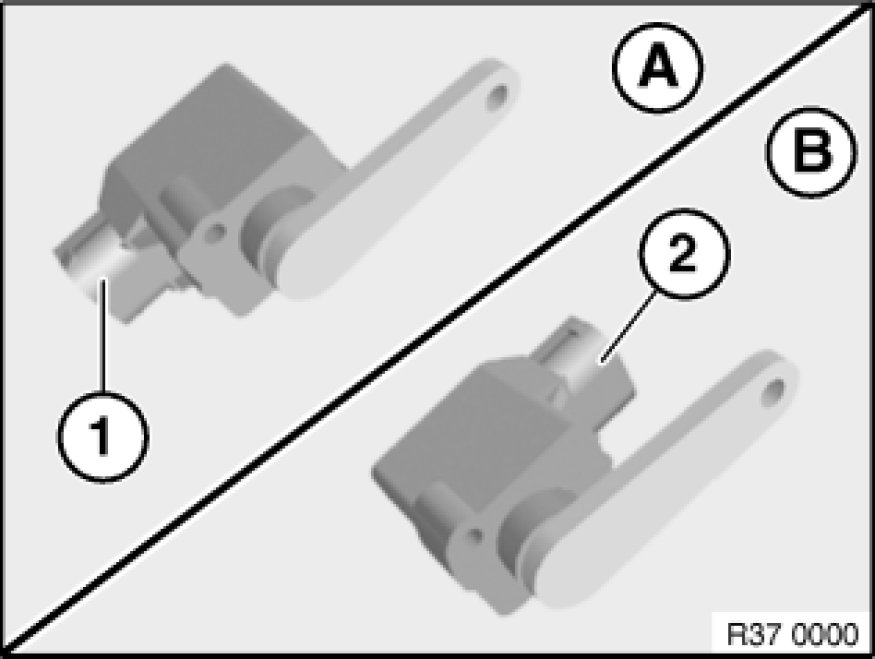

- Build date up to 03/04: Variant (A) - connection (1) points downwards
- Build date from 03/04: Variant (B) - connection (2) points upwards

Build date up to 03/04:

Important!
If the front ride-height sensor has been installed twisted in relation to variant (A), e.g. due to wiring harness replacement, the following control units must be recoded.
- Light module with headlight vertical aim control
- Adaptive headlight





Necessary preliminary tasks:
- If necessary, remove right steering gear cover





Shown on build date up to 03/04:
Release nut (1) and disconnect jointed rod.
Tightening torque 37 14 7AZ Electric Components.
Release screws (2), remove ride-height sensor from bracket and disconnect plug connection (3).

Installation Note:
Sensor lever must point from ride-height sensor to right front wheel.
Build date up to 03/04: If necessary, tie back connecting cable for ride-height sensor.
Tightening torque 37 14 6AZ Electric Components.





After installation:
- Check headlight adjustment Adjusting Headlights, correct if necessary
