Removing and Installing Engine Compartment Suppression Lines (Grounding Cables)

12 - Removing and installing engine compartment suppression lines (grounding cables) (N62/TU)





Necessary preliminary tasks:
- Read out fault memory of DME control unit; if necessary, work through test schedules
- Switch off ignition
- Disconnect battery negative lead
- If necessary, remove acoustic cover
- Remove intake hose Service and Repair
- Remove intake filter housing





Release screw connection (1) of intake filter mounting.
Pull ignition coil covers (2) out of rubber grommets.

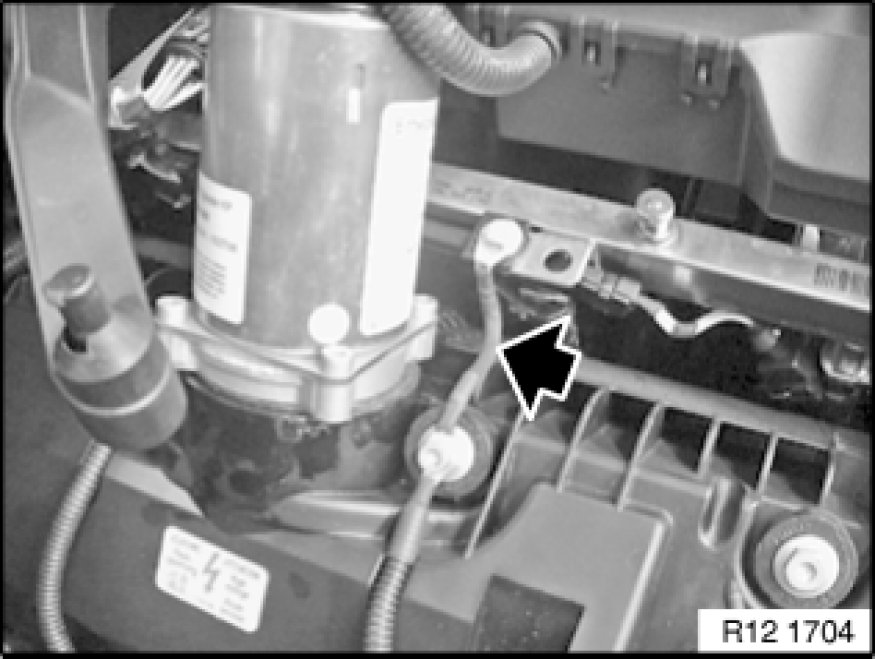

Release front screw connection of fuel injector wiring harness, screw down grounding strap with crimp connection again in upward direction.
Release ignition coil ground screw connection and screw other end of grounding strap to ignition coil ground again.

Installation:
Tightening torque 12 52 3AZ [1][2]Power and Ground Distribution.

The picture shows the right cylinder bank, the procedure for the left cylinder bank is identical.

Add final details to vehicle, read out fault memory.
