Removing and Installing (Replacing) Long Range Sensor (LRR Sensor) (M-Kit)

66 31 016 - Removing and installing (replacing) long range sensor (LRR sensor) (M-kit)





Special tools required:
- 00 9 317 00 9 317 Trim Panel Wedge

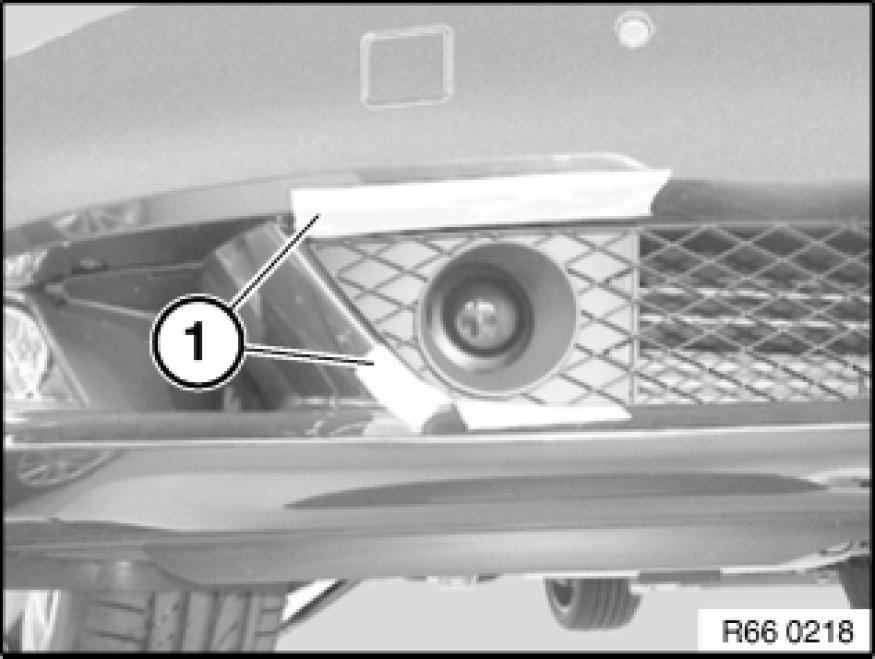

Tape off bumper in working area (1) with yellow plastic adhesive tape.

Lever out trim with special tool 00 9 317 00 9 317 Trim Panel Wedge and remove.

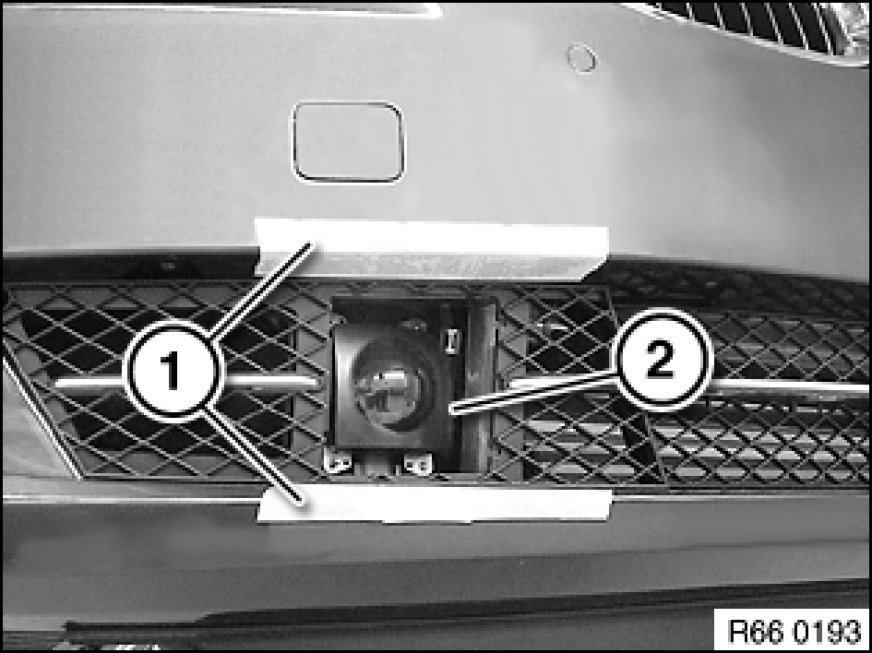

Firmly press down plastic adhesive tape (1) in working area again.

Unclip long range sensor (2) from mounting.

Installation:
Make sure long range sensor (2) is correctly and securely seated.

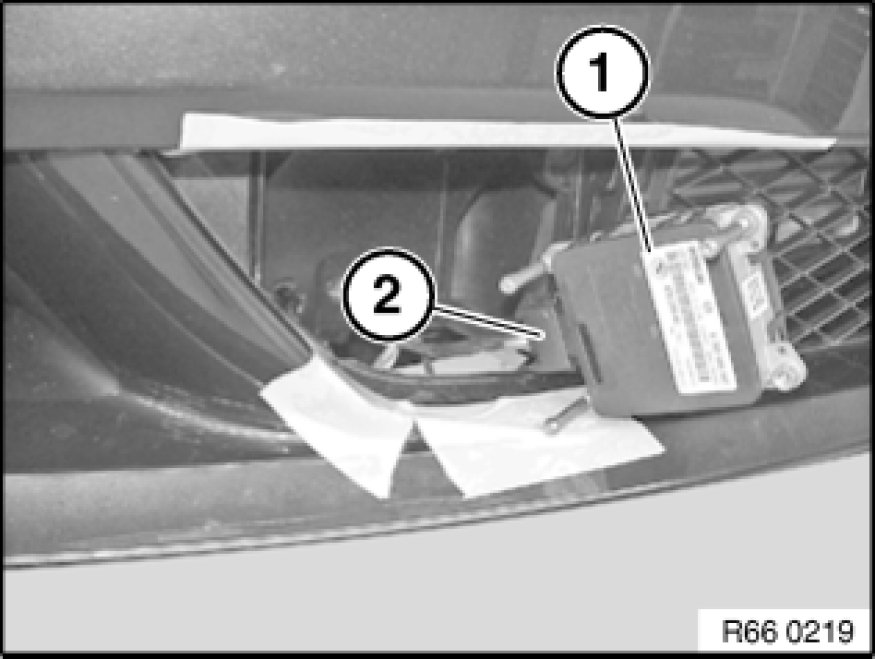

Secure long range sensor (1) against falling out.

Disconnect plug connection (2) and remove long range sensor (1).





Replacement:

- Carry out LRR sensor adjustment Adjustments using BMW diagnosis system
- Carry out programming/coding Programming and Relearning
