BMW
>>
2007
>>
650i Convertible (E64) V8-4.8L (N62TU)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Oscilloscope Patterns and Waveforms
>>
Variable Intake System
Variable Intake System
The Oscilloscope Image Should Only Be Used As A Guide Value.
Waveform:

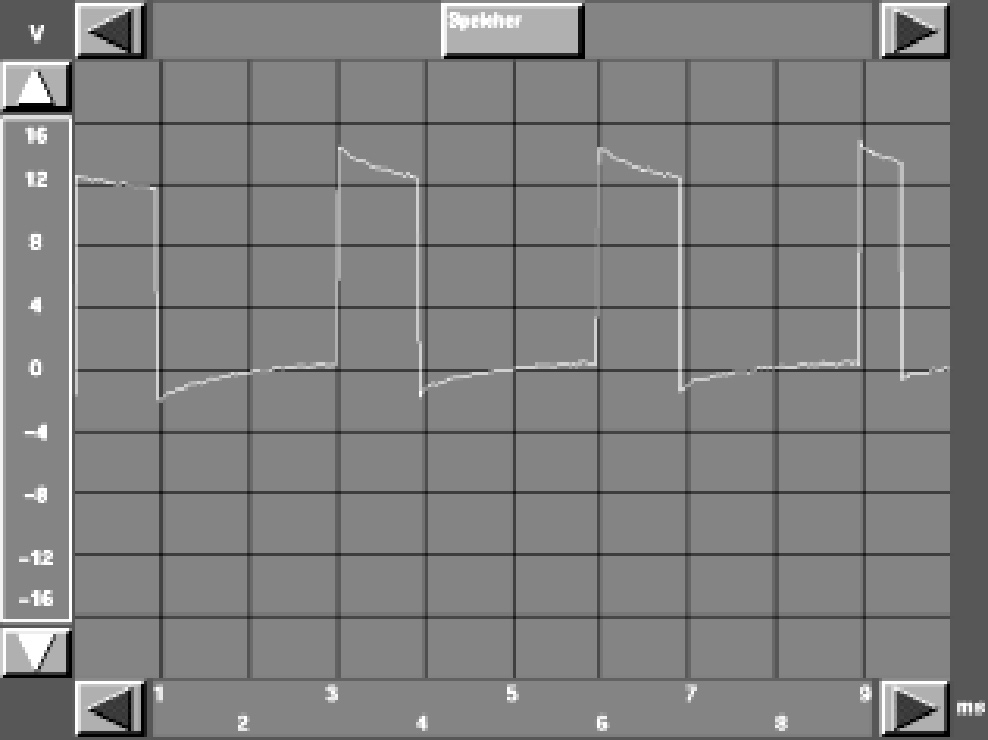

Activation signal variable intake system
