Timing Chain: Service and Repair

11 31 052 - Replacing both timing chains (N62/N62TU)





Special tools required:
- 11 2 001 11 2 000 Puller
- 11 2 002 11 2 000 Puller
- 11 2 003 11 2 000 Puller
- 11 2 007 11 2 000 Puller





Necessary preliminary tasks:
- Remove lower timing case cover Removing and Installing Bottom Timing Case Cover (N62 / N62TU)





Remove timing chain (1).
Remove timing chain (5).
Release screws (7).
Remove guide rails (3 and 6).
Remove tensioning rails (2 and 4).

Installation:
Maintain tension of timing chains when installing timing case cover.
Observe sparking protection on timing case cover.
Make sure timing chain (1) is correctly installed when placing it in guide rail (3).

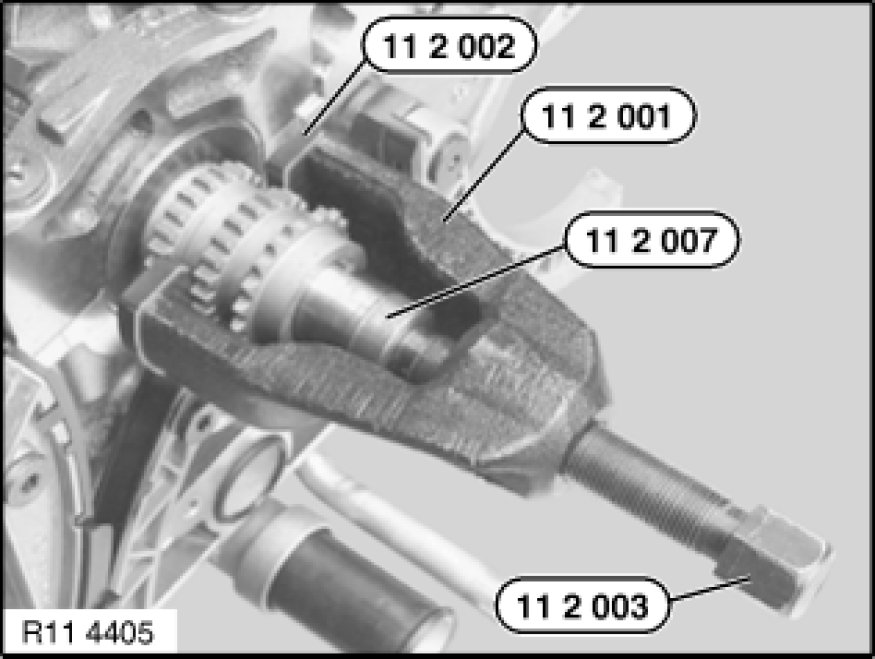

Attach special tools 11 2 001 11 2 000 Puller and 11 2 002 11 2 000 Puller to crankshaft.
Insert special tool 11 2 007 11 2 000 Puller and remove sprocket wheel with special tool 11 2 003 11 2 000 Puller.

Installation:
Check sprocket wheels for wear, replace if necessary.
Heat sprocket wheel to 60 °C.

Warning!
Burning hazard! Wear gloves.





Assemble engine.
