Steptronic Switch (N62TU Engine)

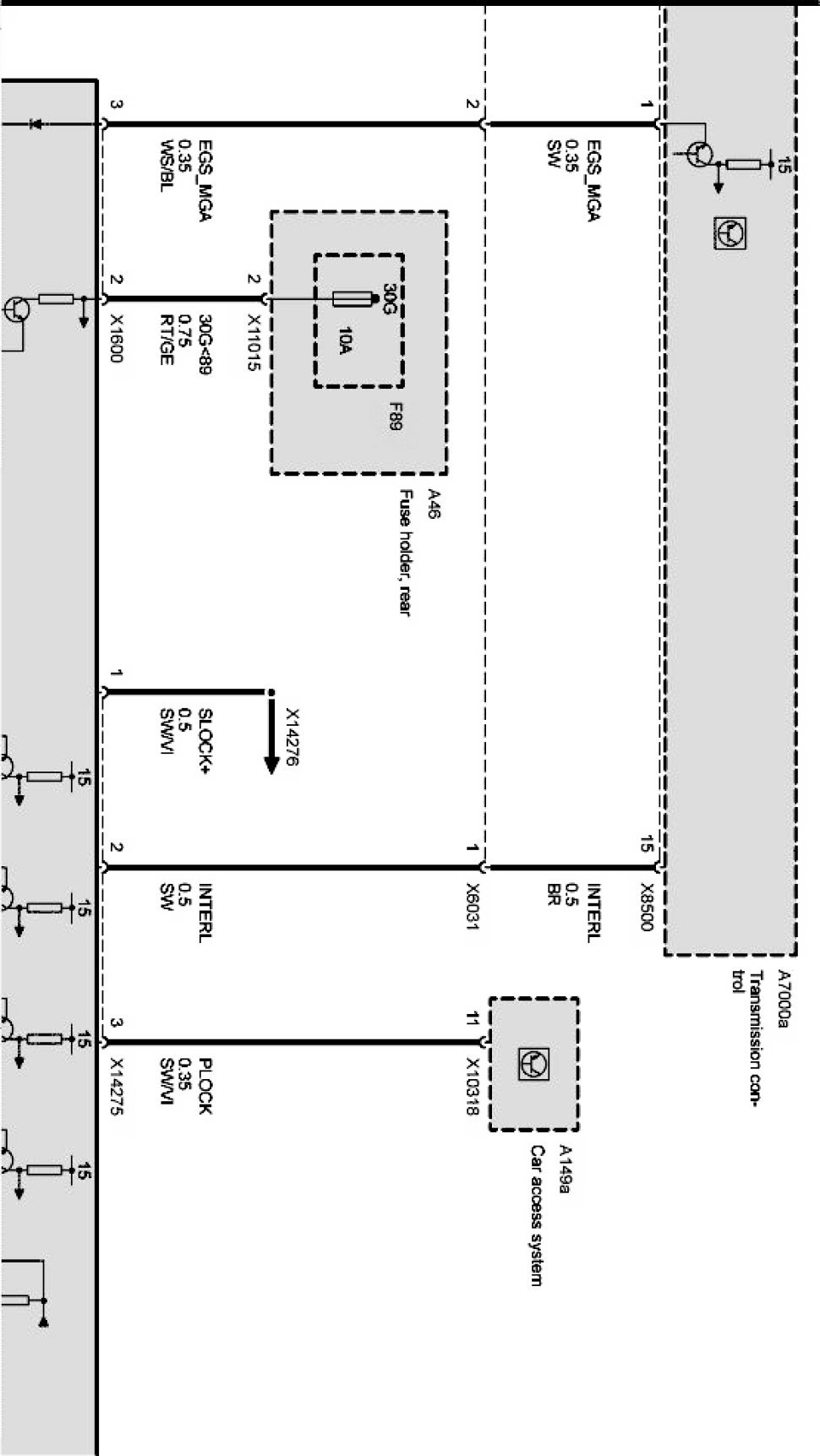

Steptronic switch Part 1:

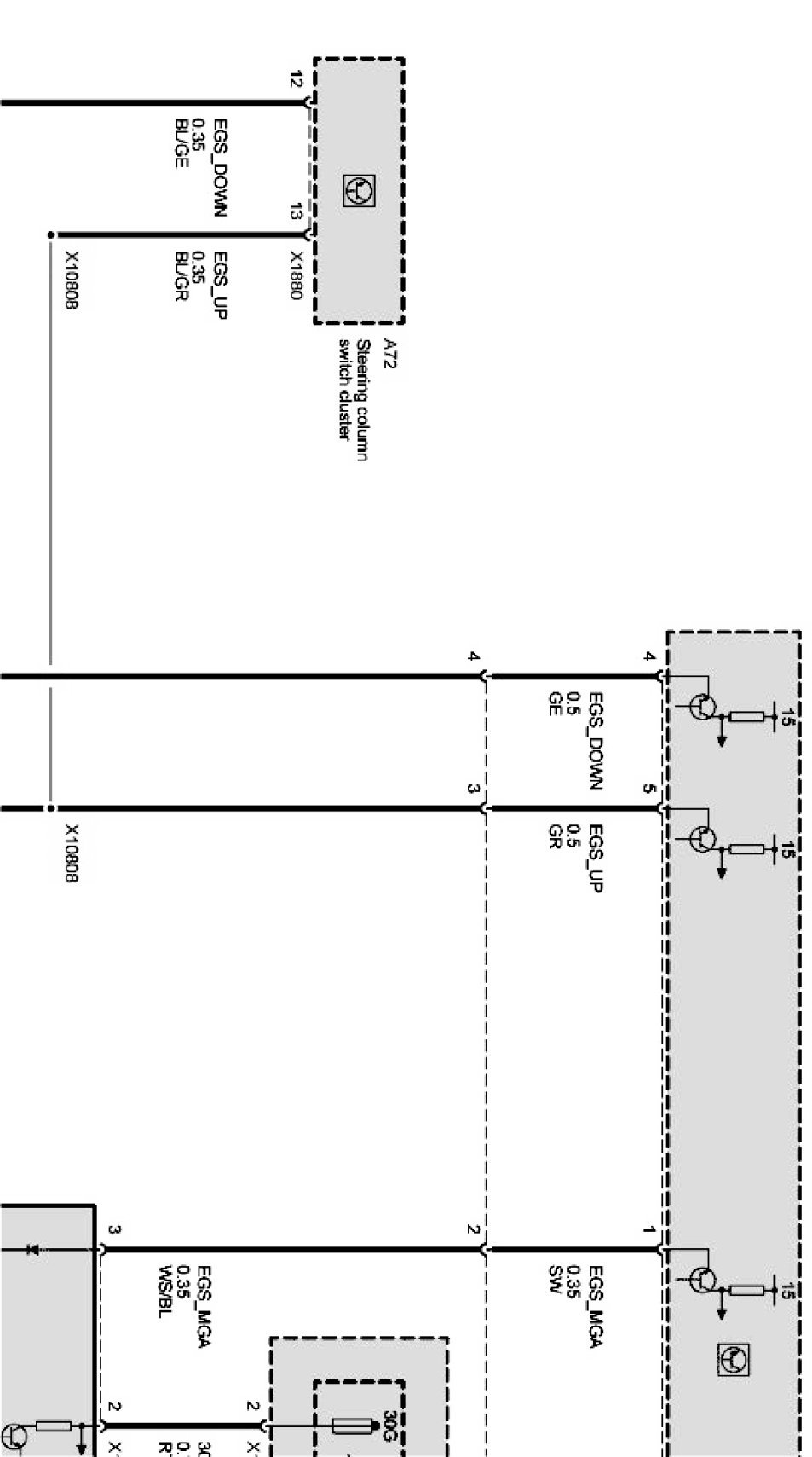

Steptronic switch Part 2:

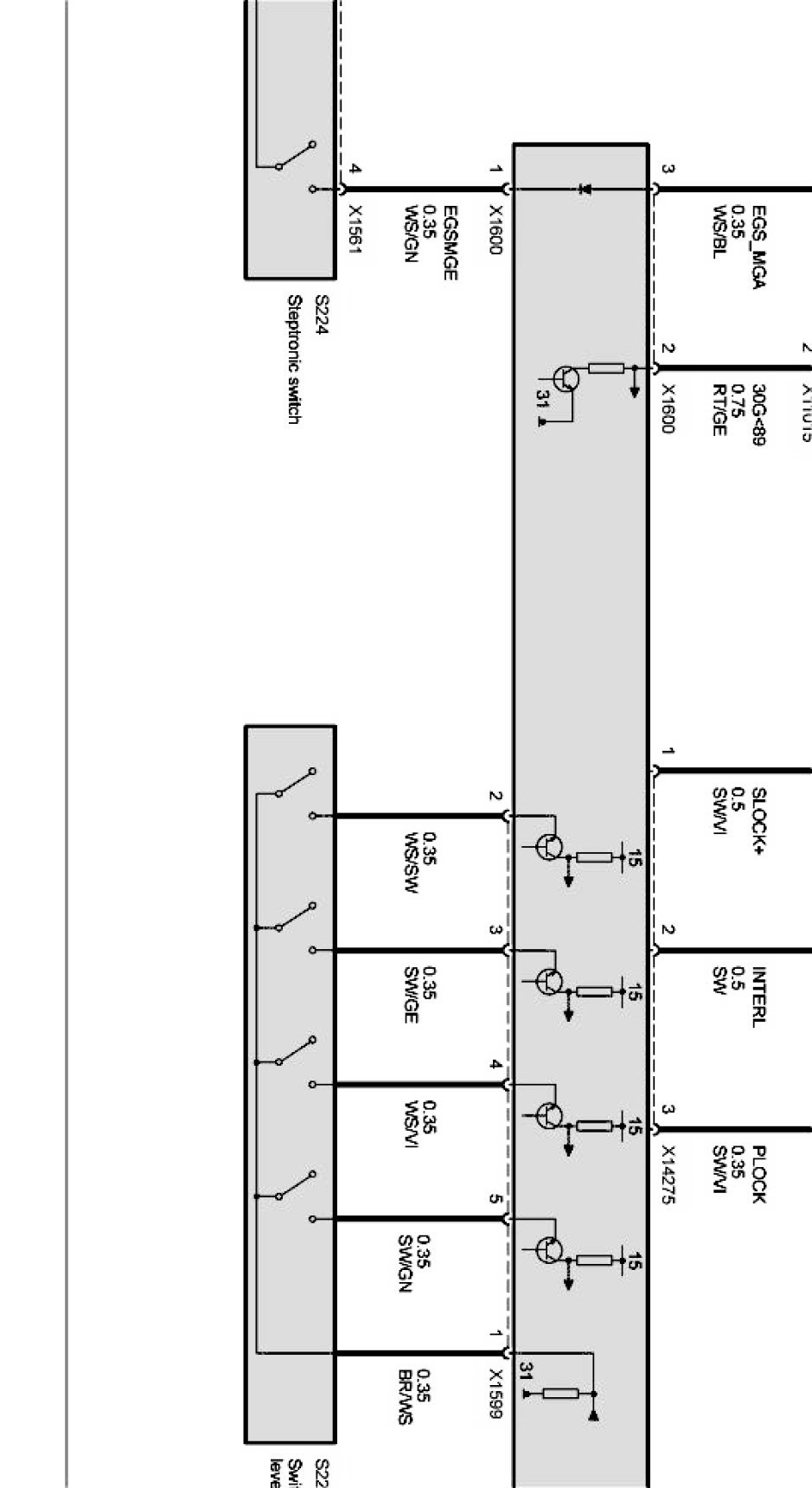

Steptronic switch Part 3:

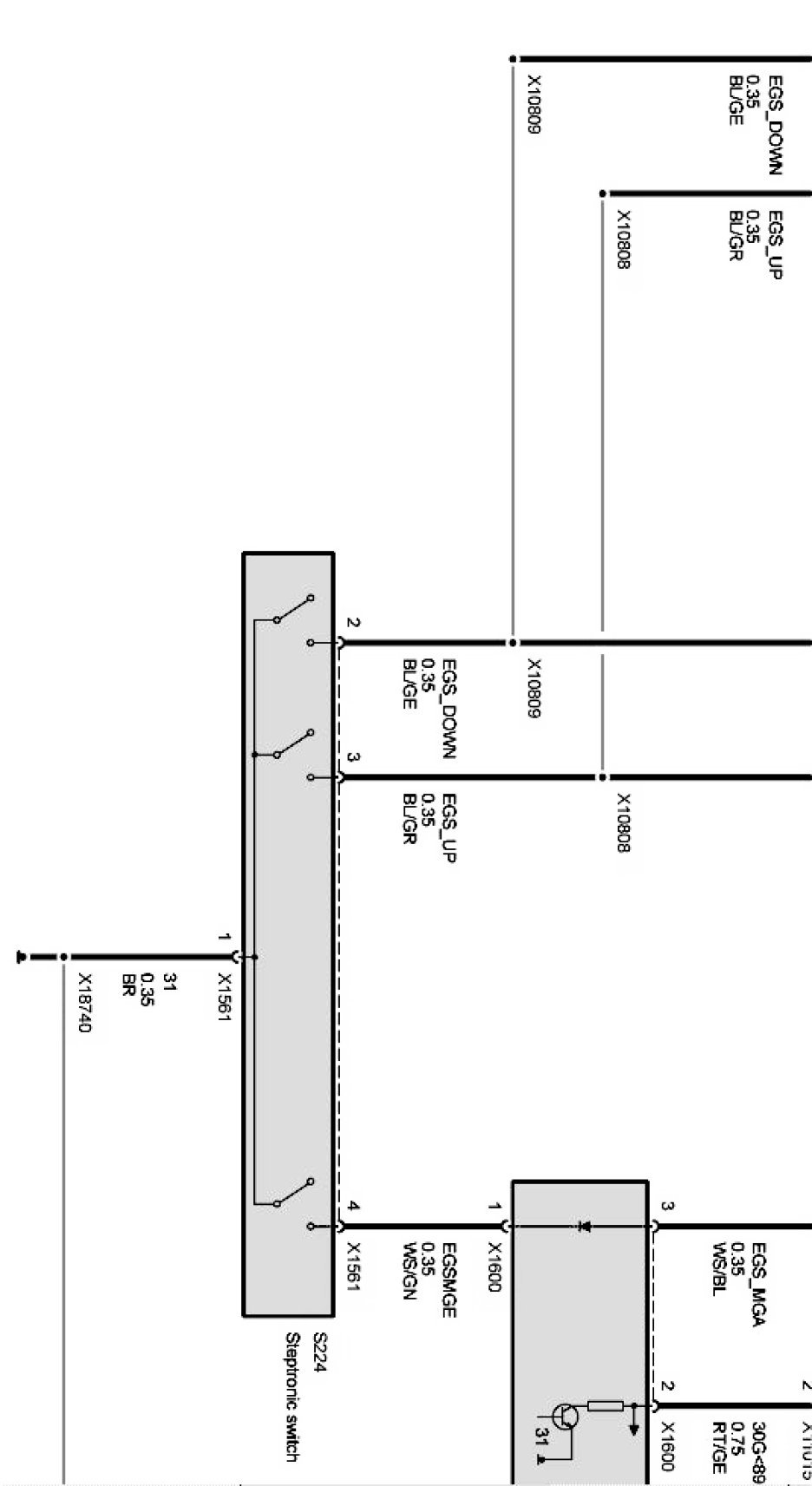

Steptronic switch Part 4:

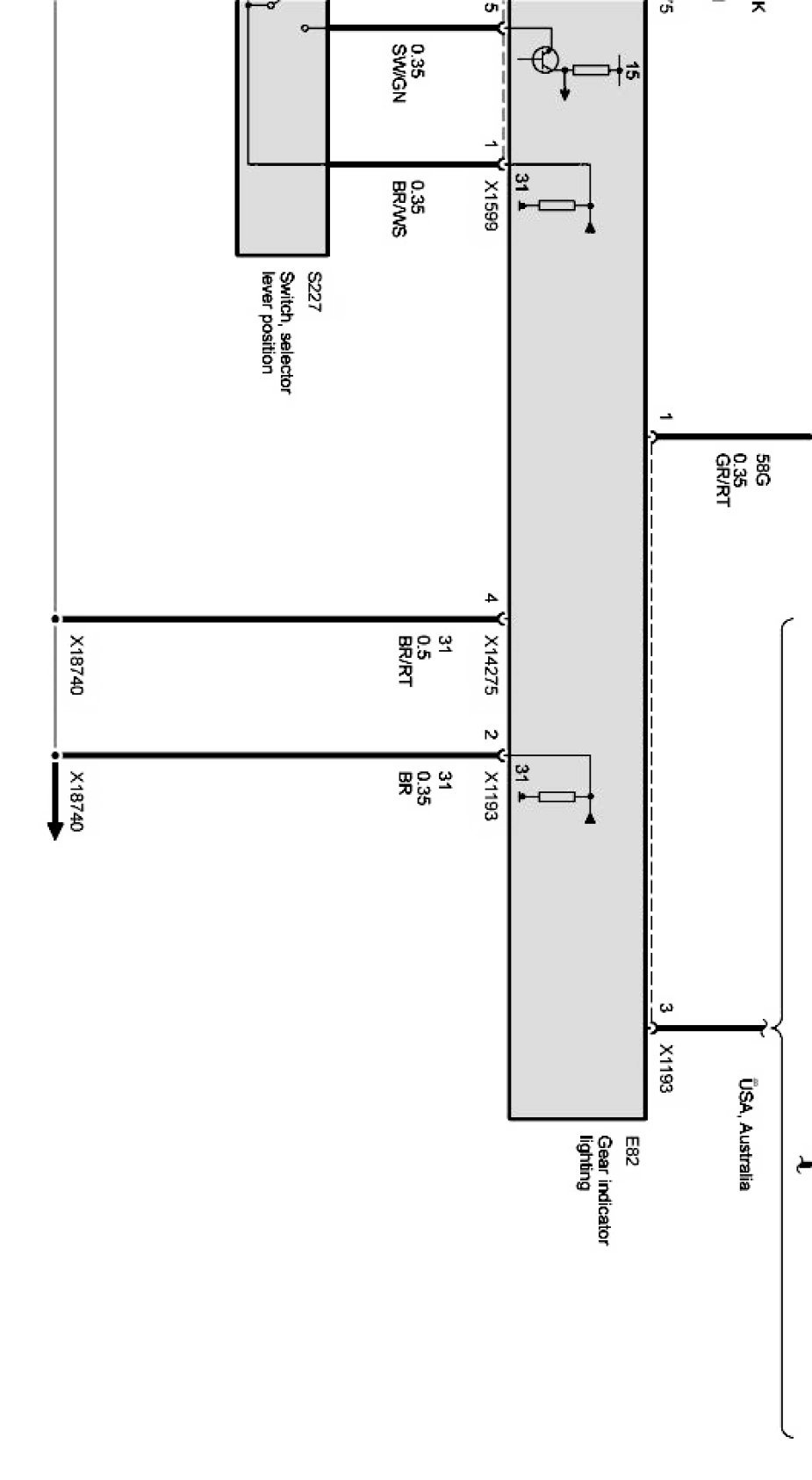

Steptronic switch Part 5:

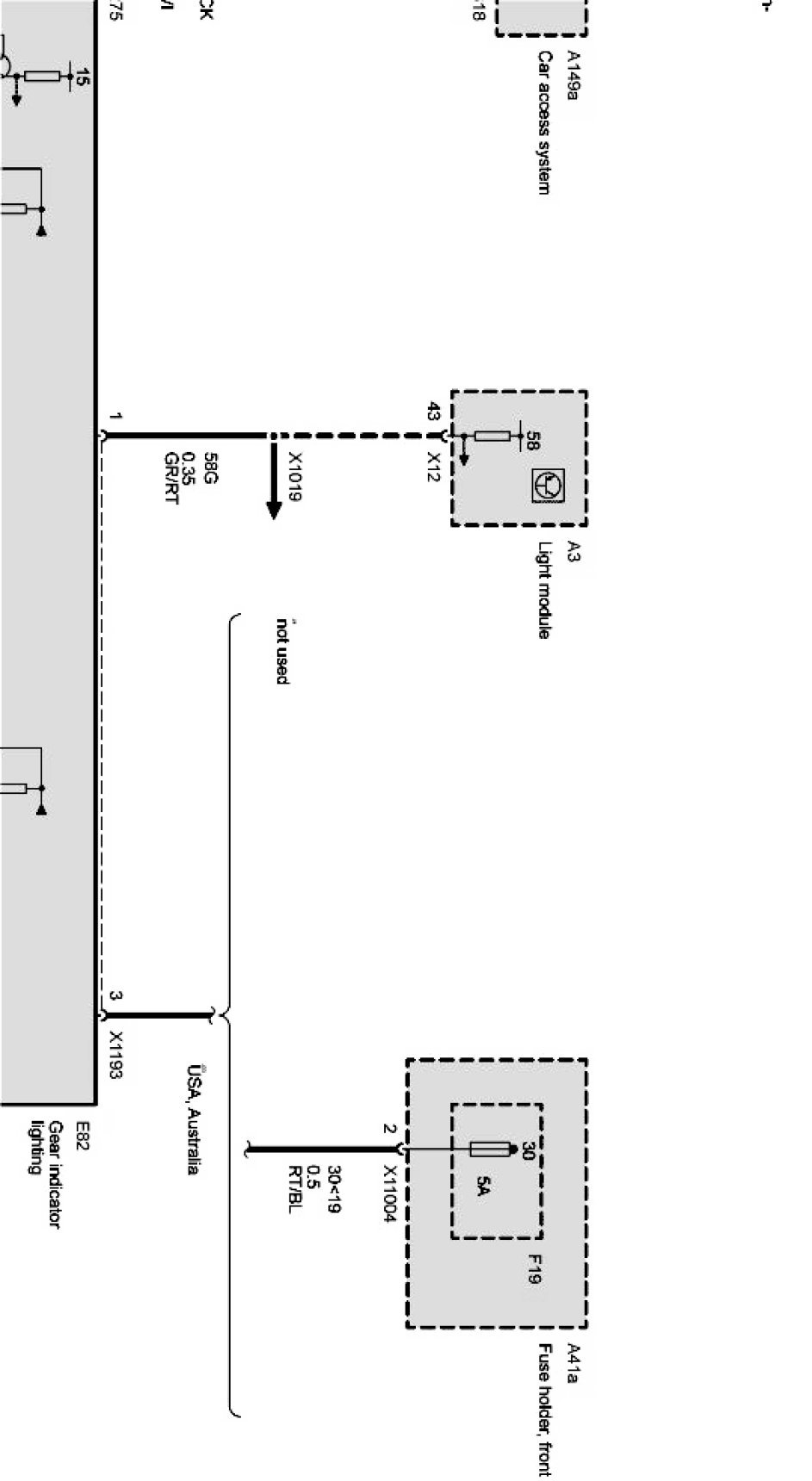

Steptronic switch Part 6:
