Home
>>
BMW
>>
2007
>>
650i Convertible (E64) V8-4.8L (N62TU)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Chassis
>>
Wheel Slip Control System (Except M5/M6)
>>
Without DSC (Dynamic Stability Control) Premium
>>
Sensor System
>>
Supply, Control Module, Dynamic Stability Control (DSC As of 09/05)
Supply, Control Module, Dynamic Stability Control (DSC As of 09/05)
Supply, control module, dynamic stability control (DSC) Part 1:

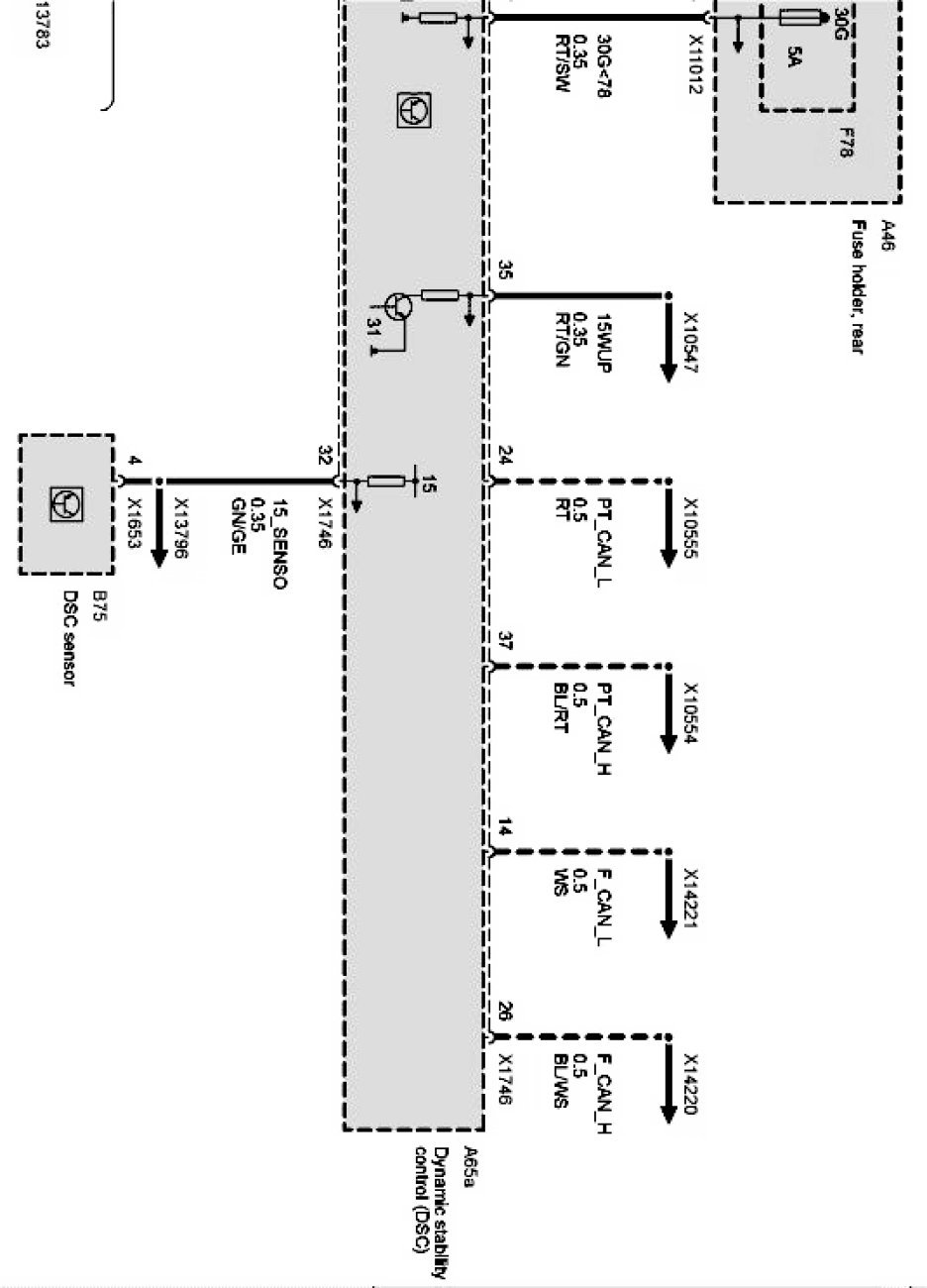

Supply, control module, dynamic stability control (DSC) Part 2:
