Removing and Installing (Replacing) Left or Right Short Range Sensor (SRR Sensor) (M Technik Aerodynamic Kit)

66 31 020 - Removing and installing (replacing) left or right short range sensor (SRR sensor) (M Technik aerodynamic kit)





Important!
To ensure correct SRR operation, there must be no mechanical damage (e.g. dents) to the bumper in the SRR area, nor must filler work or multilayer paintwork (more than two paint coats) have been carried out.





Necessary preliminary tasks:
- Remove front bumper trim 51 11 156 Removing and Installing Front Bumper Trim

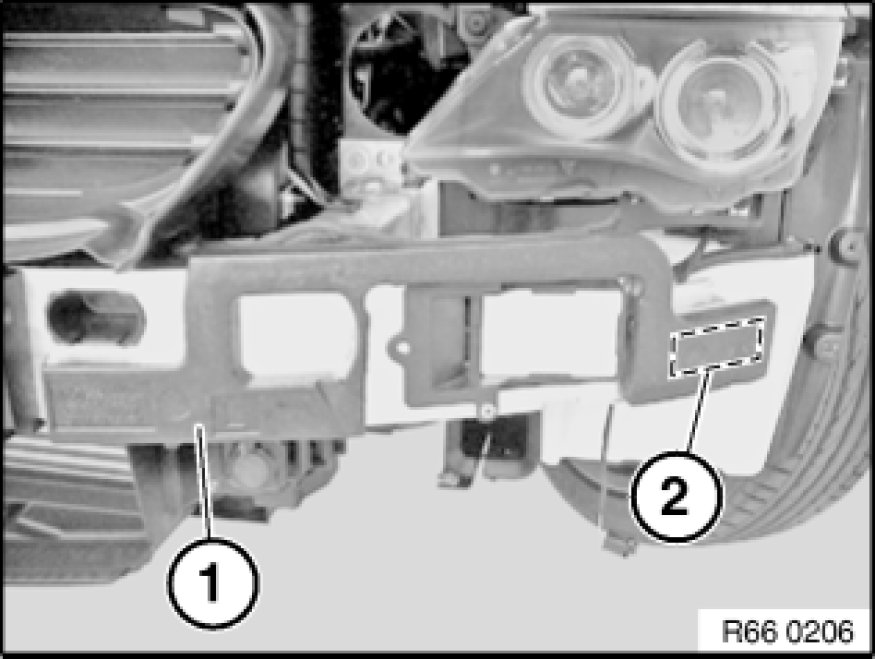

Remove impact absorber (1) and carefully detach adhesive tape in area (2).

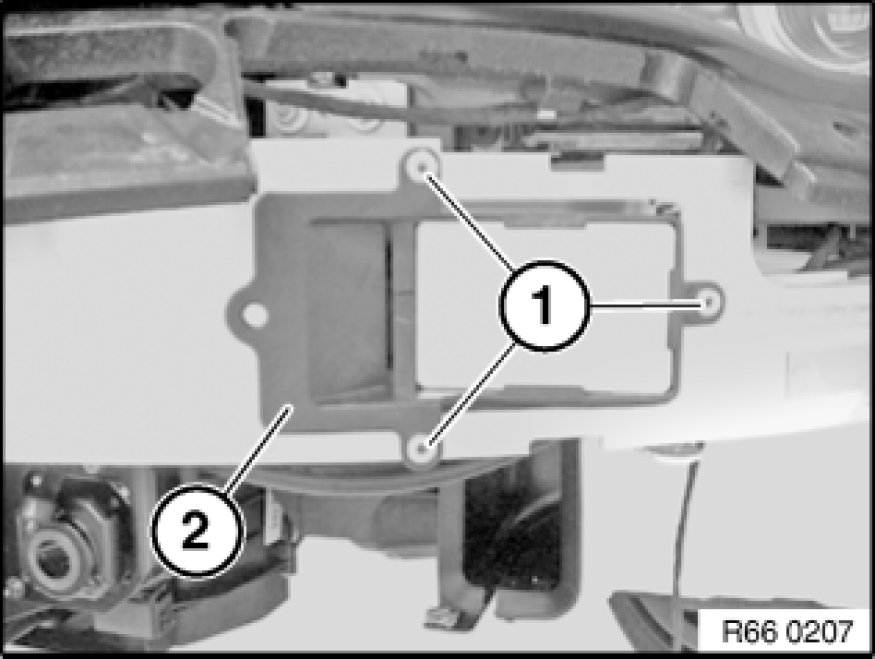

Drill out riveted joints (1) and remove bracket (2) for SRR sensor.
Disconnect associated plug connection and remove SRR sensor from bracket (2).





After installation:
Adjustment can only be carried out with the BMW diagnosis system:
Service functions:
- Chassis
- Cruise control (ACC)
- Adjust short range sensors
