Removing and Installing/Replacing Roller Sun Blind on Side Window of Left or Right Rear Door (Up To 03/07)

51 16 405 - Removing and installing/replacing roller sun blind on side window of left or right rear door (up to 03/07)





Necessary preliminary tasks:
- Remove rear door trim panel Removing and Installing Rear Left or Right Door Trim Panel (Up To 03/07)

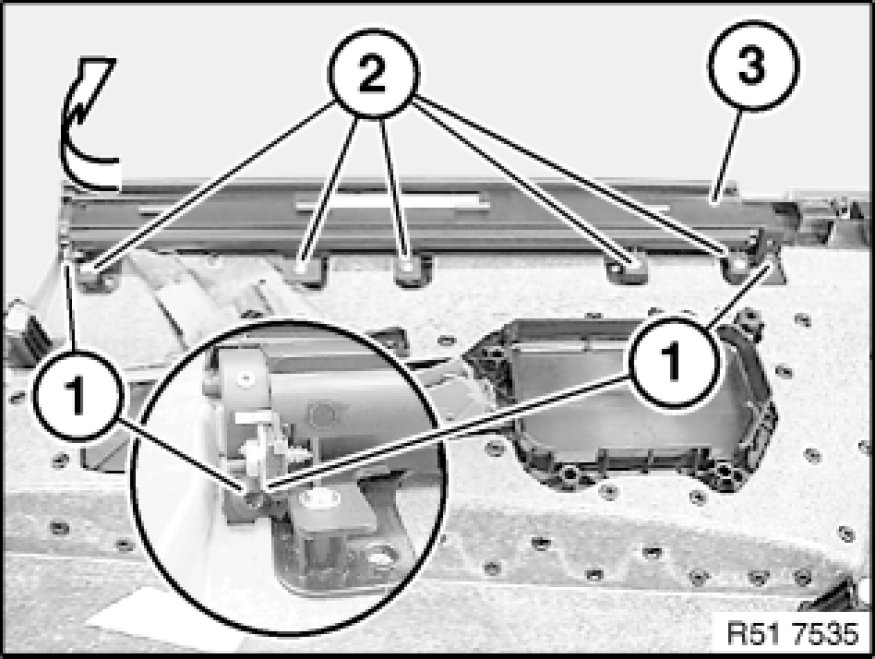

Release screws (1 and 2) and remove roller sun blind (3) in direction of arrow.





Security version:

Installation:
Roller sun blind is modified.

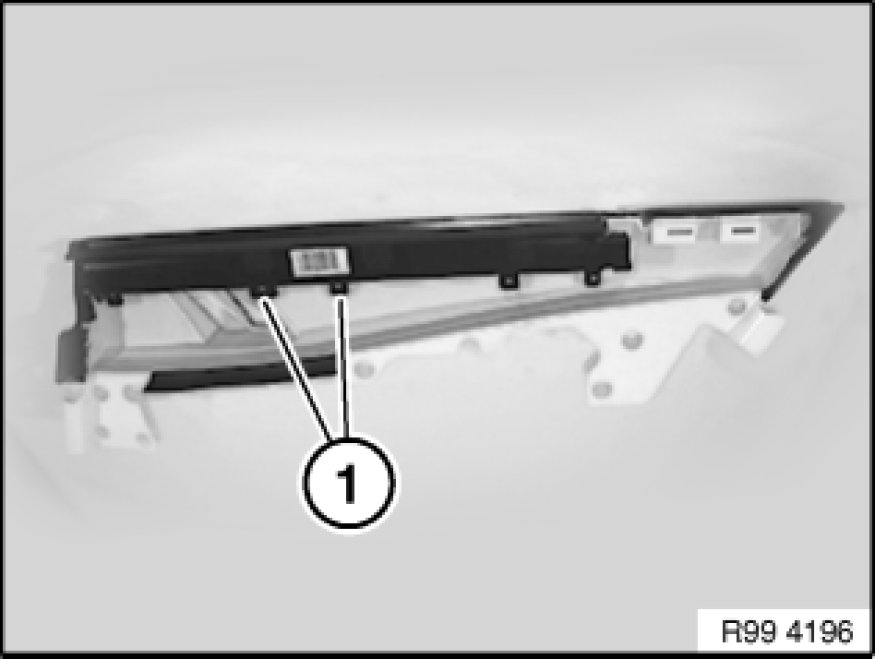

Screws (1) are shortened. Door trim panel may be damaged with unshortened screws (1).
