64 11 869 Replacing Servodrive for Blending Flap

64 11 869 - Replacing servodrive for blending flap





Important!
Servomotors must be re-addressed in the event of replacement!
Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and A/C function
- Flap motors
- Re-address flap motors





Necessary preliminary tasks:
- Remove trim panel for pedal assembly 51 45 185 Removing and Installing/Replacing Panel For Pedals.

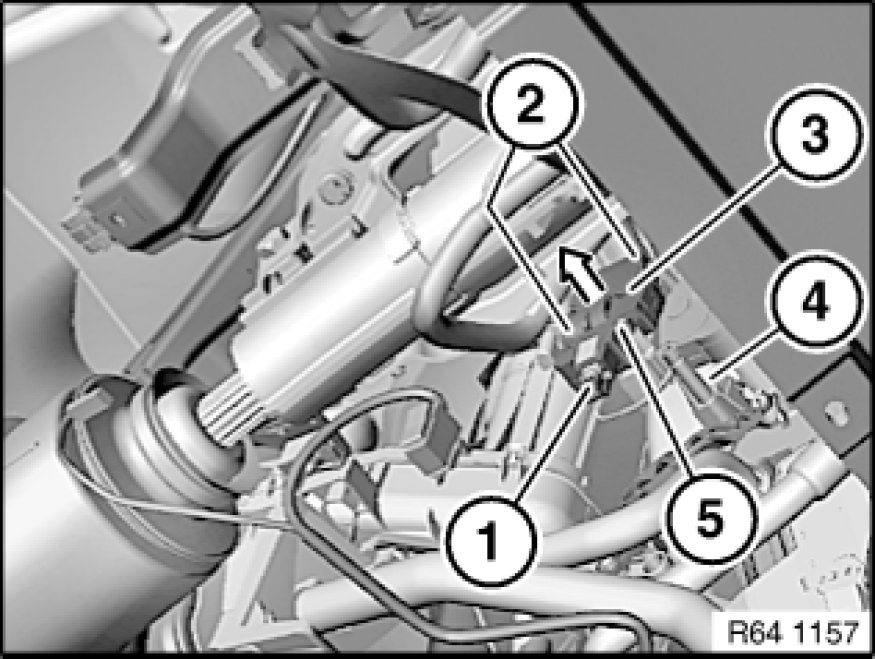

Unfasten plug connection (1) and disconnect.
Release screws (2).
Detach servodrive for blending flap (3) in direction of arrow from heater/air conditioner (4).

Installation Note:
Place servodrive for blending flap (3) over guide pin (5).
