64 11 850 Replacing Servodrive For Rear Compartment Flap

64 11 850 - Replacing servodrive for rear compartment flap





Important!
Servomotors must be re-addressed in the event of replacement!
Addressing can only be carried out with the BMW diagnosis system.
Service functions:
- Body
- Heating and A/C function
- Flap motors
- Re-address flap motors





Necessary preliminary tasks:
- Remove trim for instrument panel 51 45 181 Removing and Installing/Replacing Bottom Right Trim For Instrument Panel, bottom right

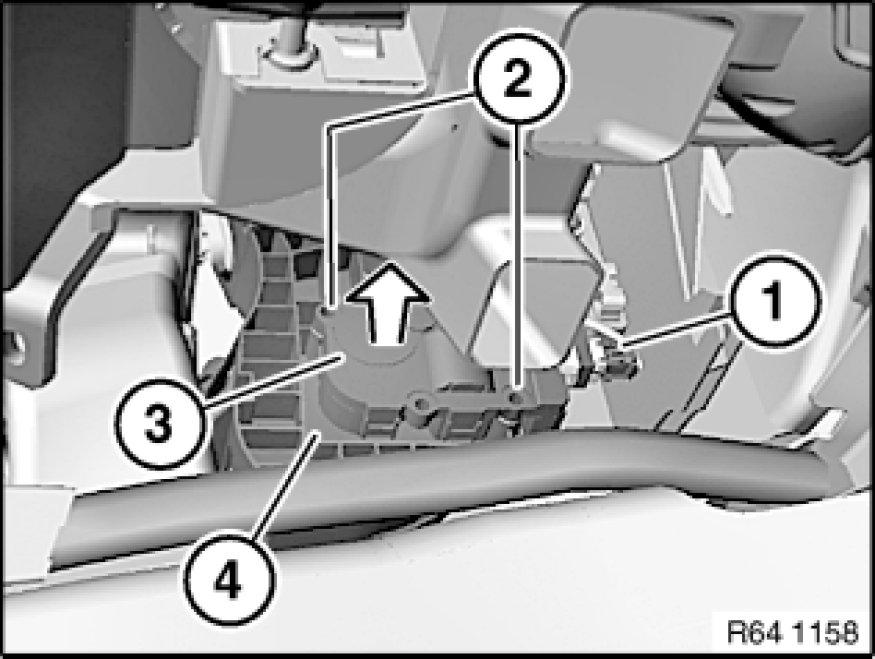

Unfasten plug connection (1) and disconnect.
Release screws (2).
Detach servodrive for rear compartment flap (3) in direction of arrow from heater/air conditioner (4).

Installation Note:
Place servodrive for rear compartment flap (3) exactly onto heater/air conditioner (4).
