Home >> BMW >> 2007 >> 335xi Sedan AWD (E90) L6-3.0L Turbo (N54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessories and Optional Equipment >> Police / Special Vehicle Options >> Radio Teledux 9 With Double Masking

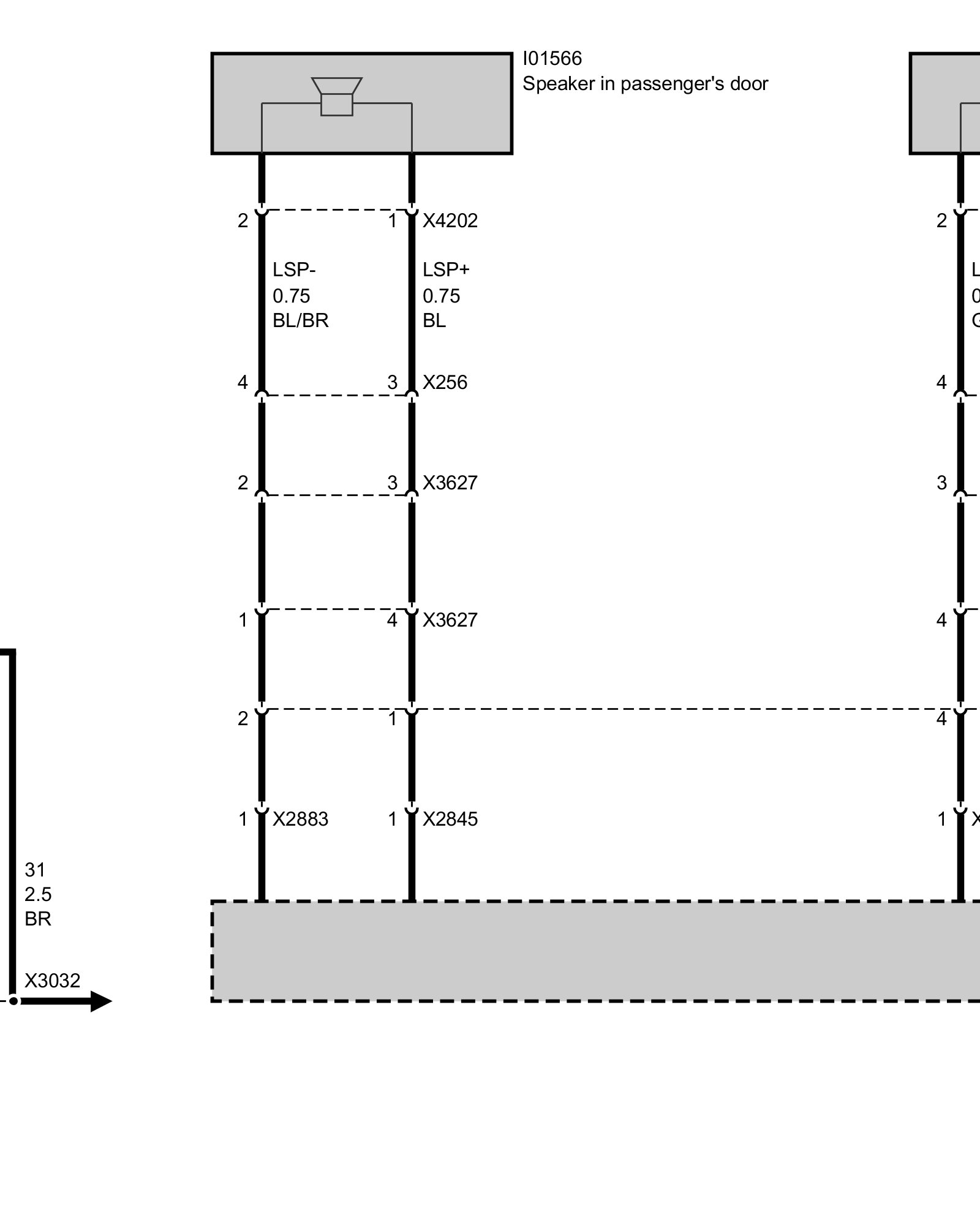

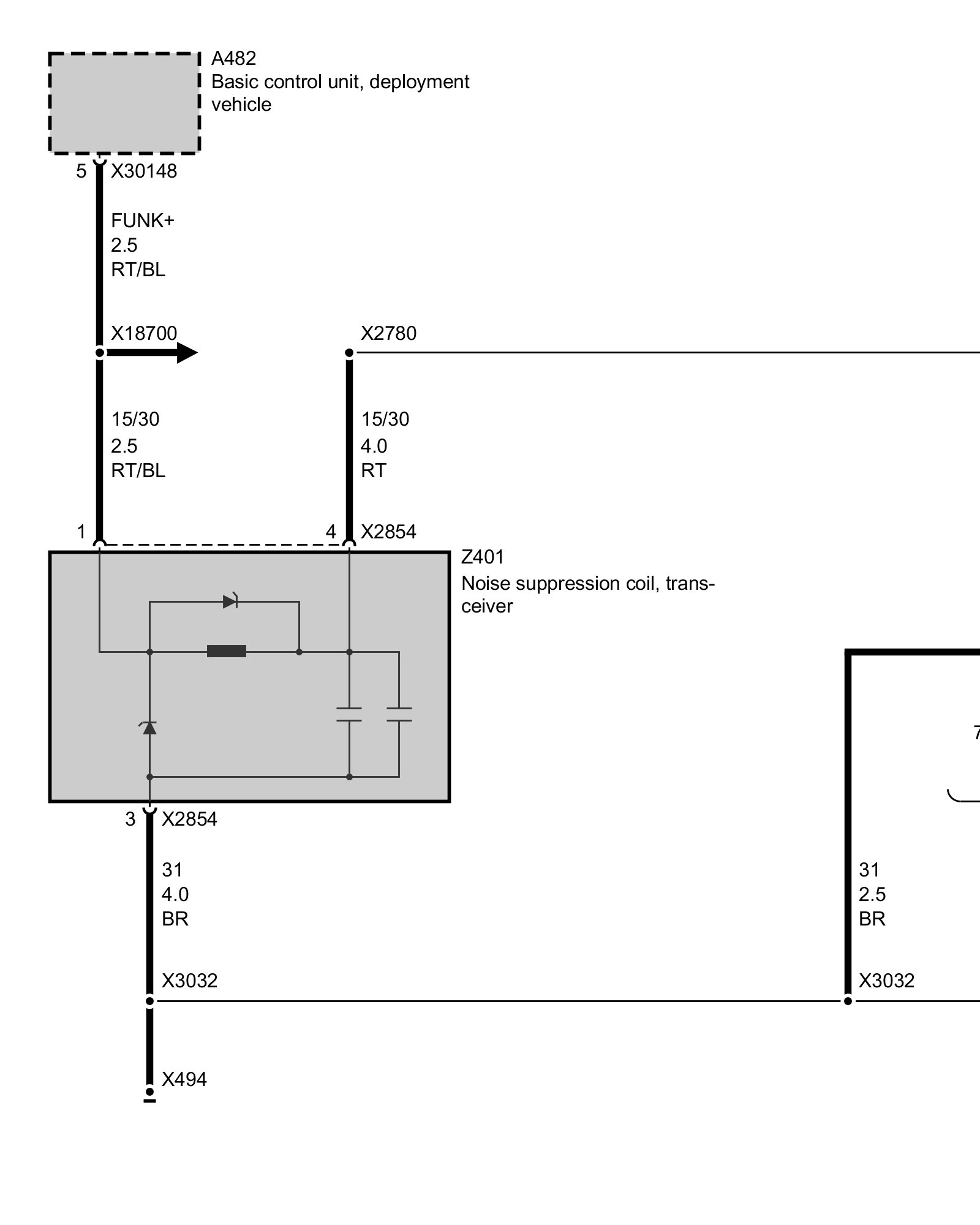

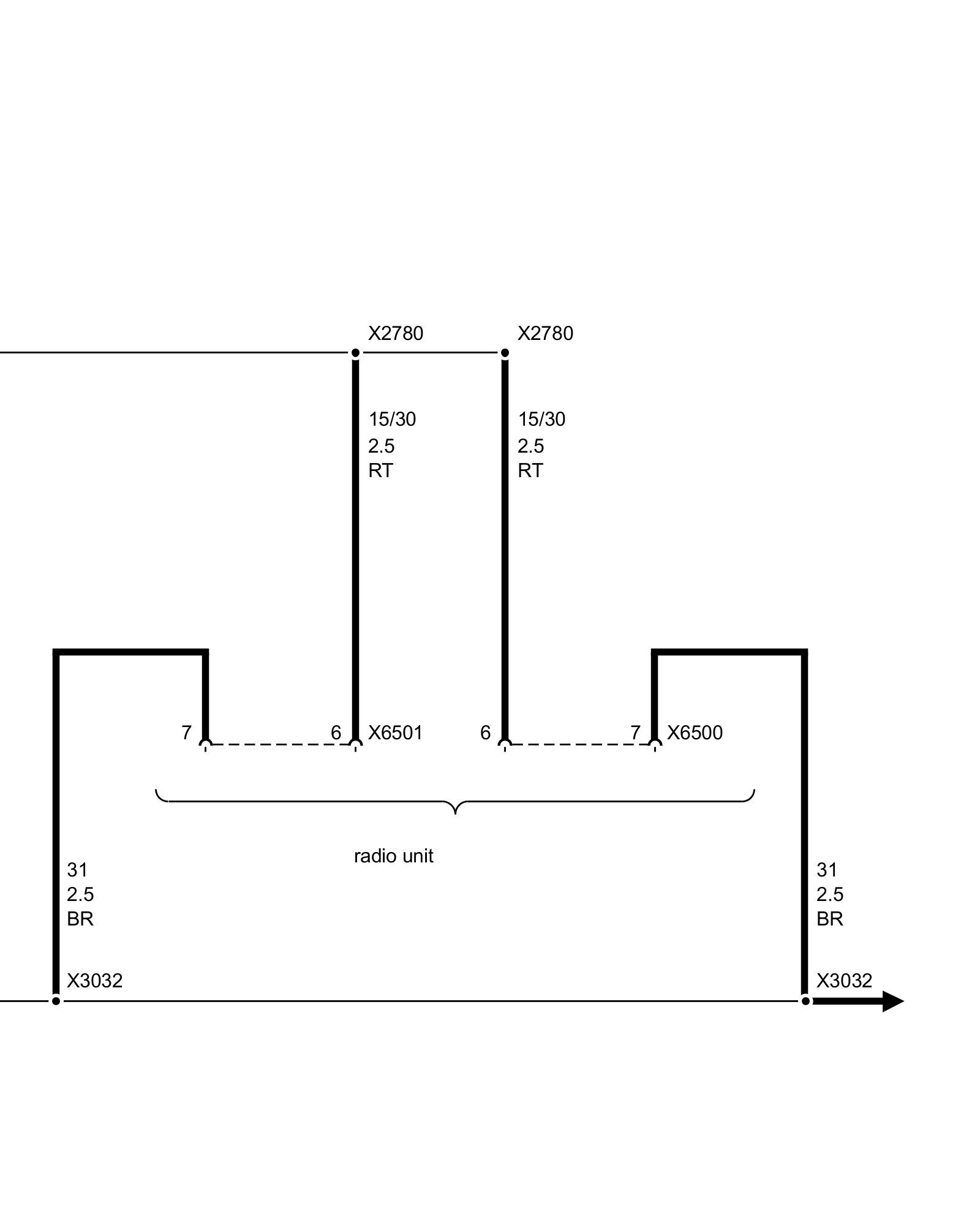

Radio Teledux 9 With Double Masking



Radio Teledux 9 With Double Masking
