Wipers/Washers - Wipers Park Out Of Position

SI B 61 05 08
General Electrical Systems

May 2008
Technical Service

SUBJECT
Windshield Wiper Parks out of Position

MODEL
E90, E91 (3 Series) produced up to April 29, 2006

SITUATION
The windshield wiper parks approximately 10 to 15 degrees (2-3 cm) out of position.

CAUSE
Windshield wiper relay fault

CORRECTION
In the case of a customer complaint, replace the blue windshield wiper relay (P/N 61 36 6 918 816), located behind the fuse box access panel in the glove box, with relay P/N 61 36 6 980 177 (green).





PARTS INFORMATION

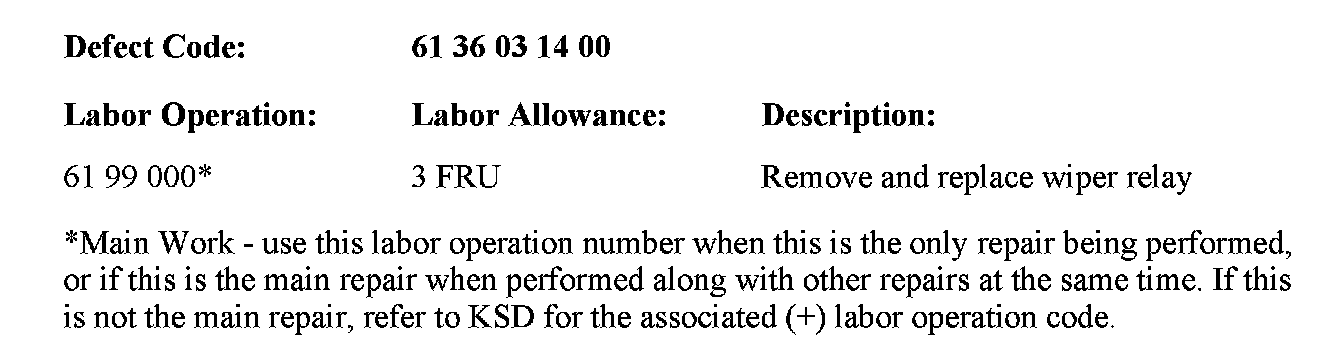

WARRANTY INFORMATION





Covered under the terms of the BMW New Vehicle Limited Warranty.
