Strut Mount: Service and Repair

31 33 001 (Removing And Installing) Replacing Front Left Or Right Spring Strut Support Bearing







NOTE: Procedure is described in the document "Replacing front left or right spring strut".







Replacement:
Vehicle with spacer ring:

NOTE: Spacer ring (A) is fitted in vehicles with "rough road package" version.

Unscrew nuts.

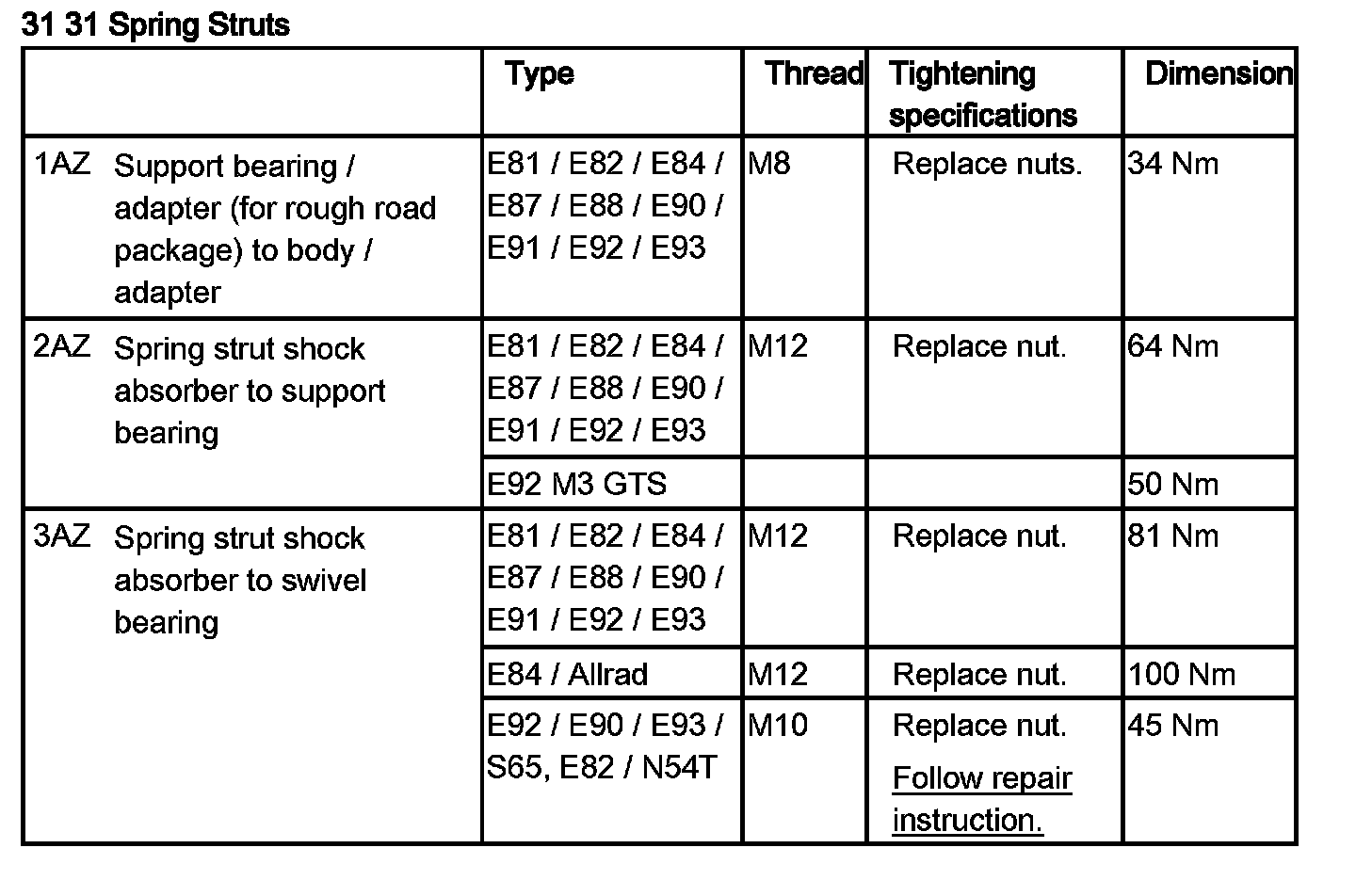

Tightening torque 31 31 1AZ.

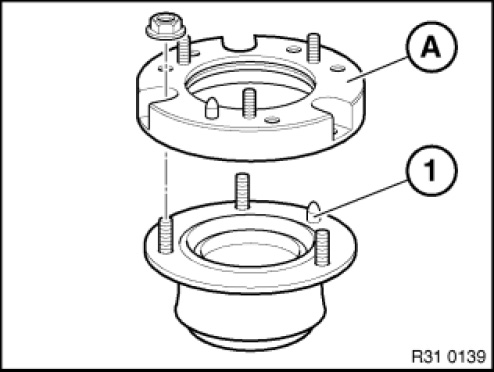

Remove spacer ring (A) from support bearing.

Installation note:
Align spacer ring (A) using centering pin (1) to support bearing and place in position.
Replace self-locking nuts.

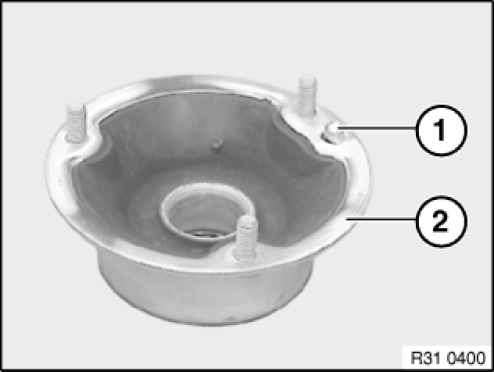

If necessary, twist/drive out centring pin (1)

NOTE: If a support bearing (2) was fitted without centring pin (1), the centring pin (1) of the new support bearing (2) must be driven or twisted out.







After installation:
- If a support bearing is installed without a centring pin, perform a wheel alignment.
