31 35 021 Replacing Rubber Mounts of Stabilizer Retaining Fixture on Front Axle Carrier



31 35 021 Replacing rubber mounts of stabilizer retaining fixture on front axle carrier







Necessary preliminary tasks:
- Remove stabilizer from front axle carrier

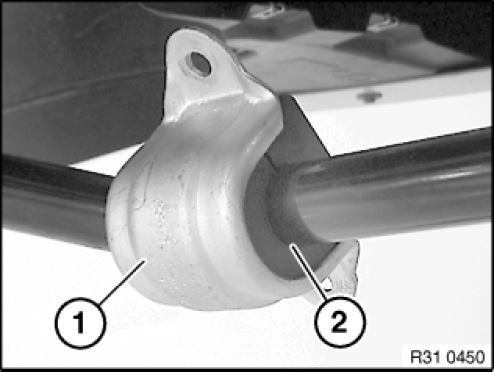

Remove retaining bracket (1) and rubber mount (2) on both sides.

Installation:
Keep retaining bracket (1), rubber mount (2) and stabilizer clean and free from oil and grease.
