Removing and Installing/Replacing Front Controller

61 31 195 - Removing and installing (replacing) front controller





Necessary preliminary tasks:
- Remove trim for storage compartment 51 16 212 Removing and Installing Trim for Storage Compartment
- Replacement only: Remove knob for controller [1][2]61 31 192 Replacing Knob For Controller (Until 09/2008)

Important!
Risk of damage
Install knob for controller only when controller is installed.

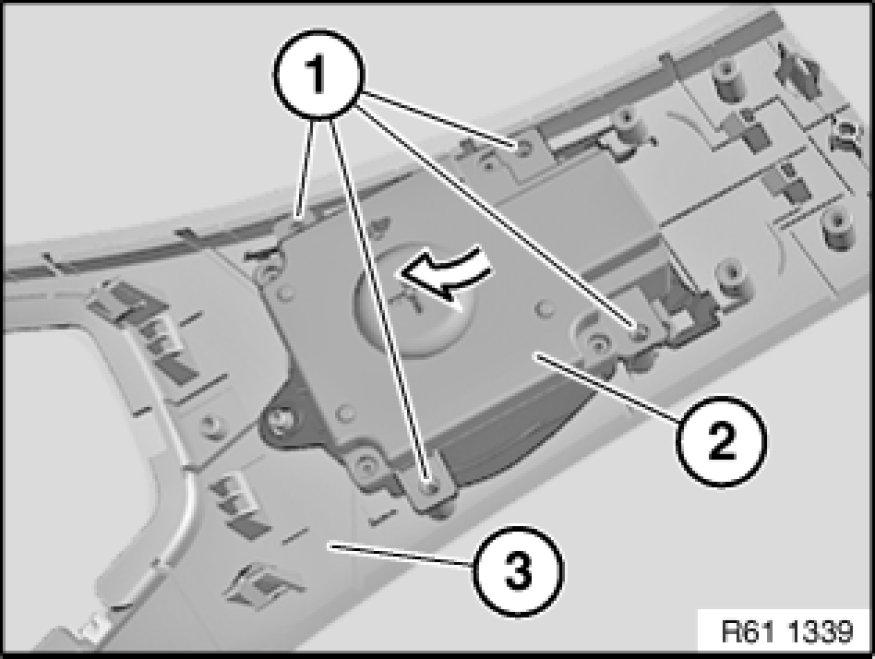

Release screws (1).
Feed controller (2) in direction of arrow out of trim (3) and remove.





Replacement:
Carry out programming/coding Programming and Relearning.
