51 71 482 Removing and Installing/Replacing Left or Right Trailing Link (on Rear Axle) (Up to 03/2007)

51 71 482 Removing and installing/replacing left or right trailing link (on rear axle) (up to 03/2007)







IMPORTANT:
Observe safety information for raising the vehicle
Driving without the trailing link is not permitted.

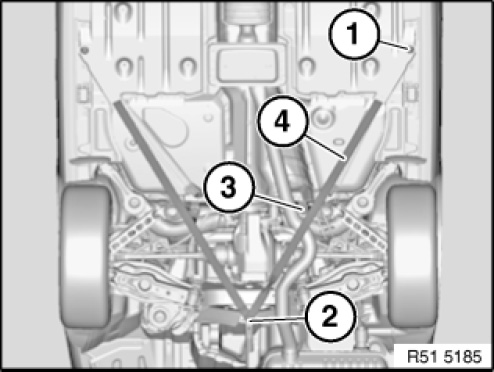

Release screws (1, 2, 3).
Remove trailing link (4).

Installation note:
Make sure screws are installed in correct positions.
- Screw (1) M12x35
Tightening torque 51 71 25AZ.
- Screw (2) M12x50
Tightening torque 51 71 26AZ.
- Screw (3) M10x25
Tightening torque 51 71 20AZ.

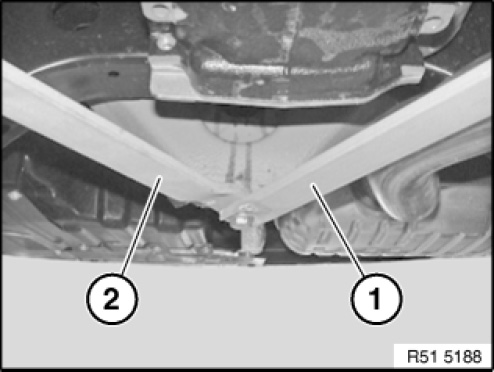

IMPORTANT: Left trailing link (1) must be installed under right trailing link (2).
