Home >> BMW >> 2007 >> 328xi Coupe AWD (E92) L6-3.0L (N52K) >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning Functions (IHKA Integrated Automatic Heating/Air Conditioning) >> As of 03/07 to 09/07

As of 03/07 to 09/07

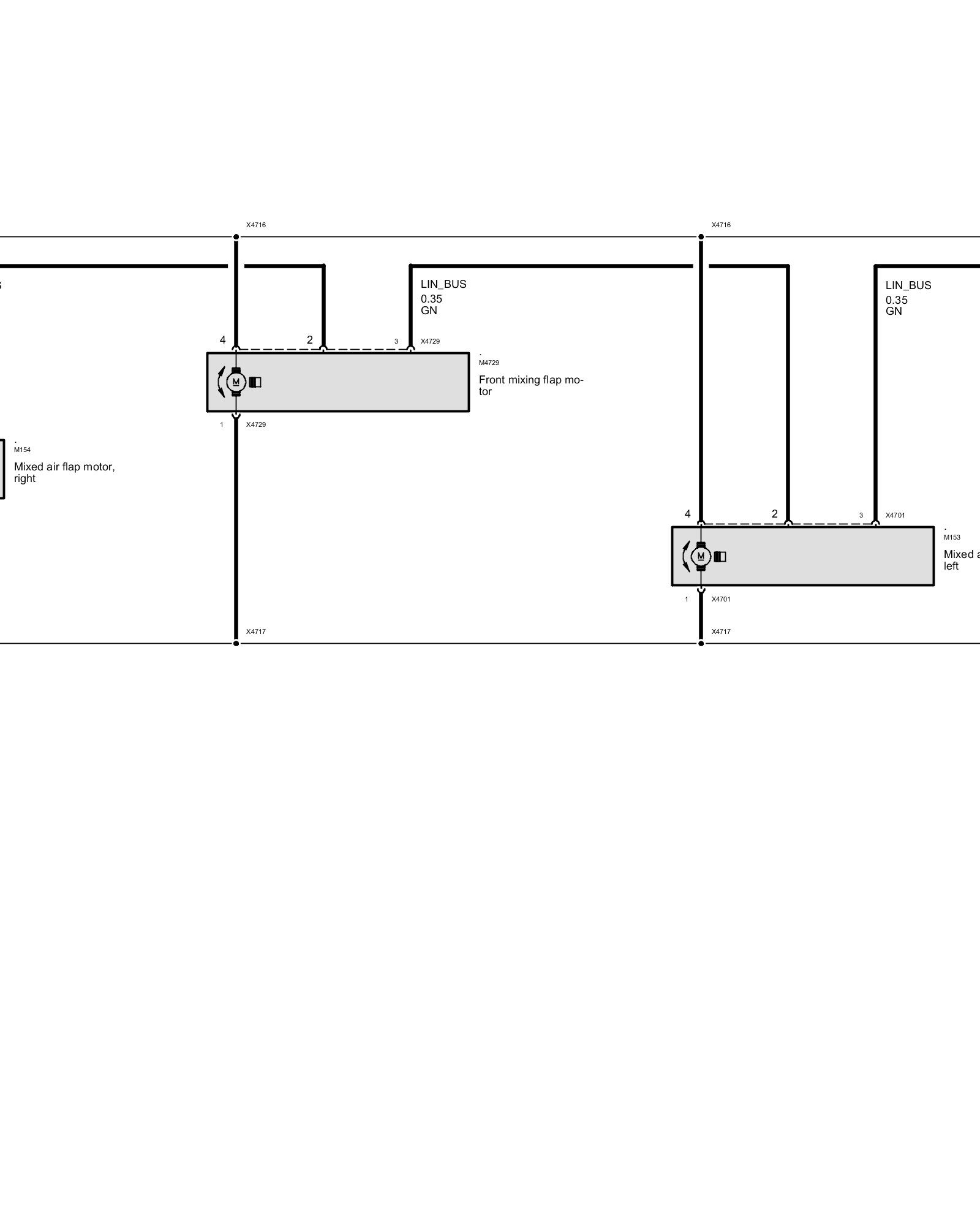

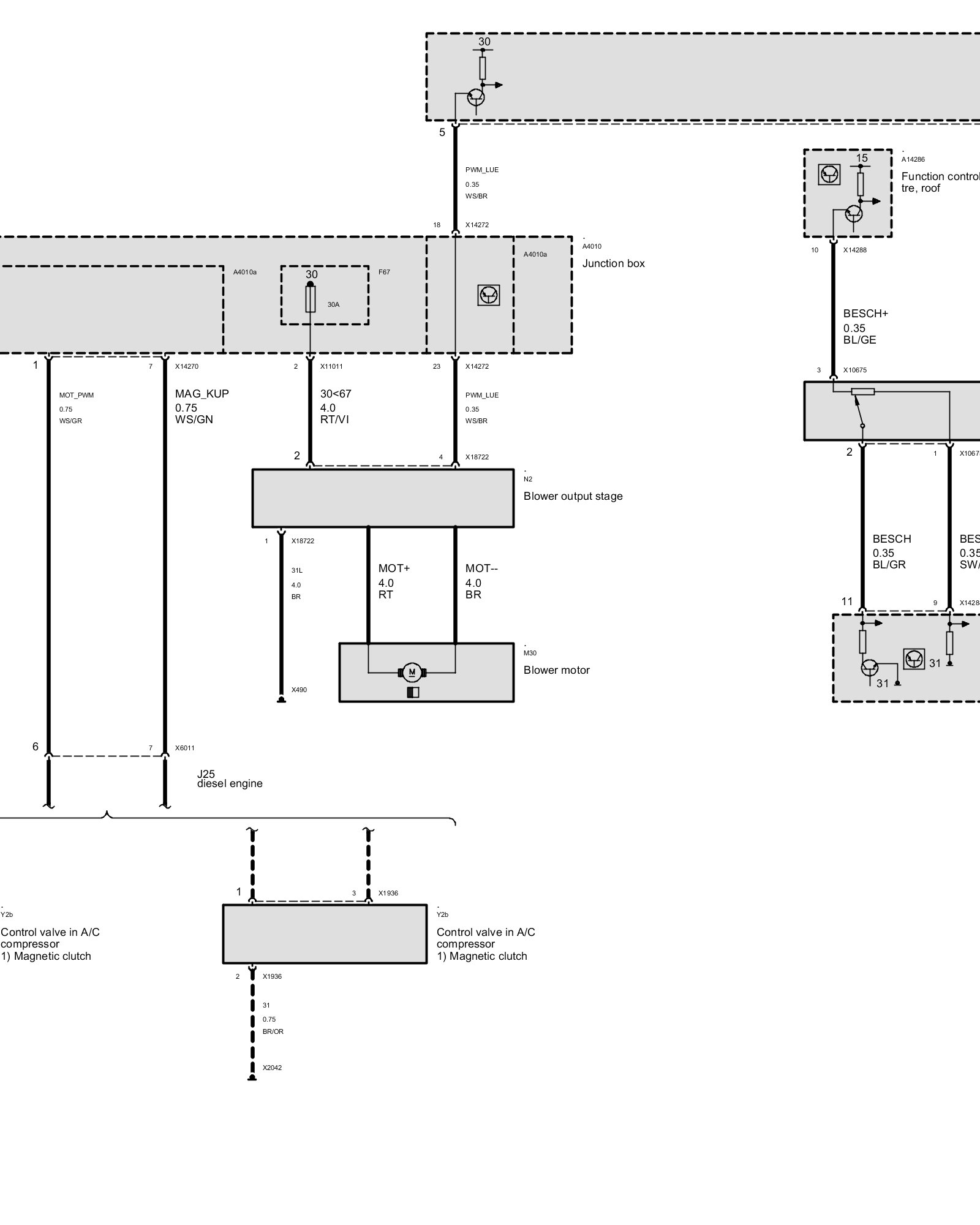

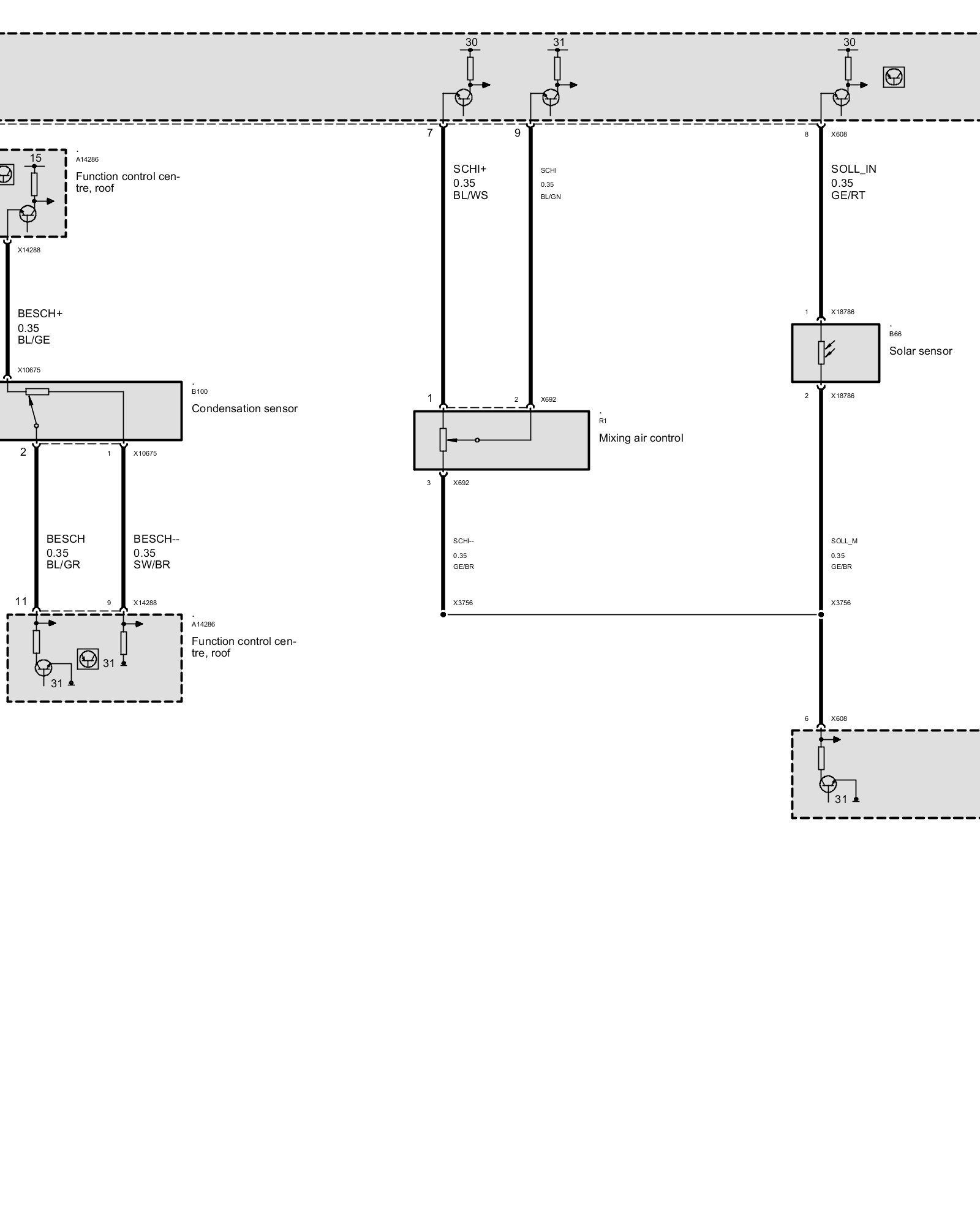

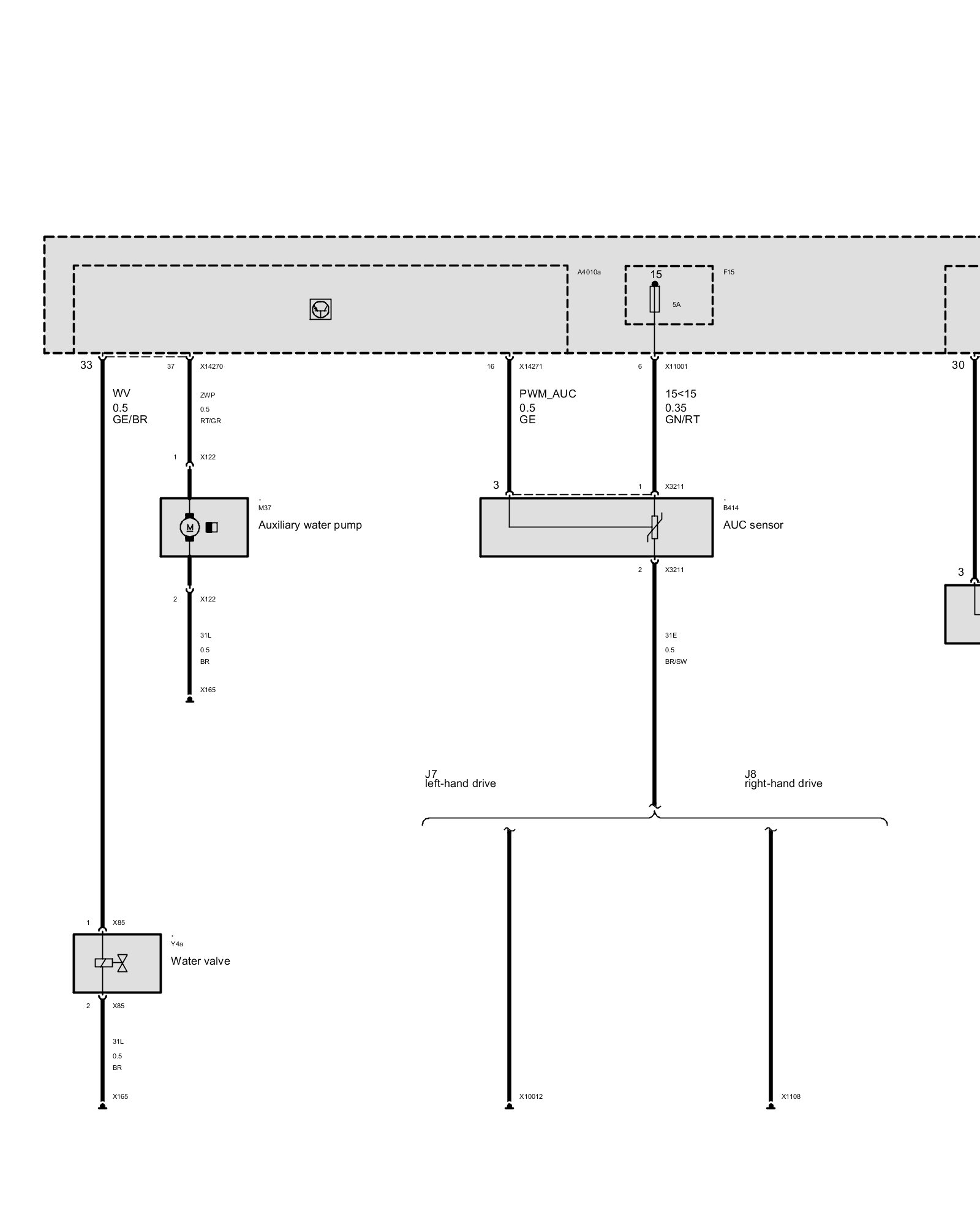

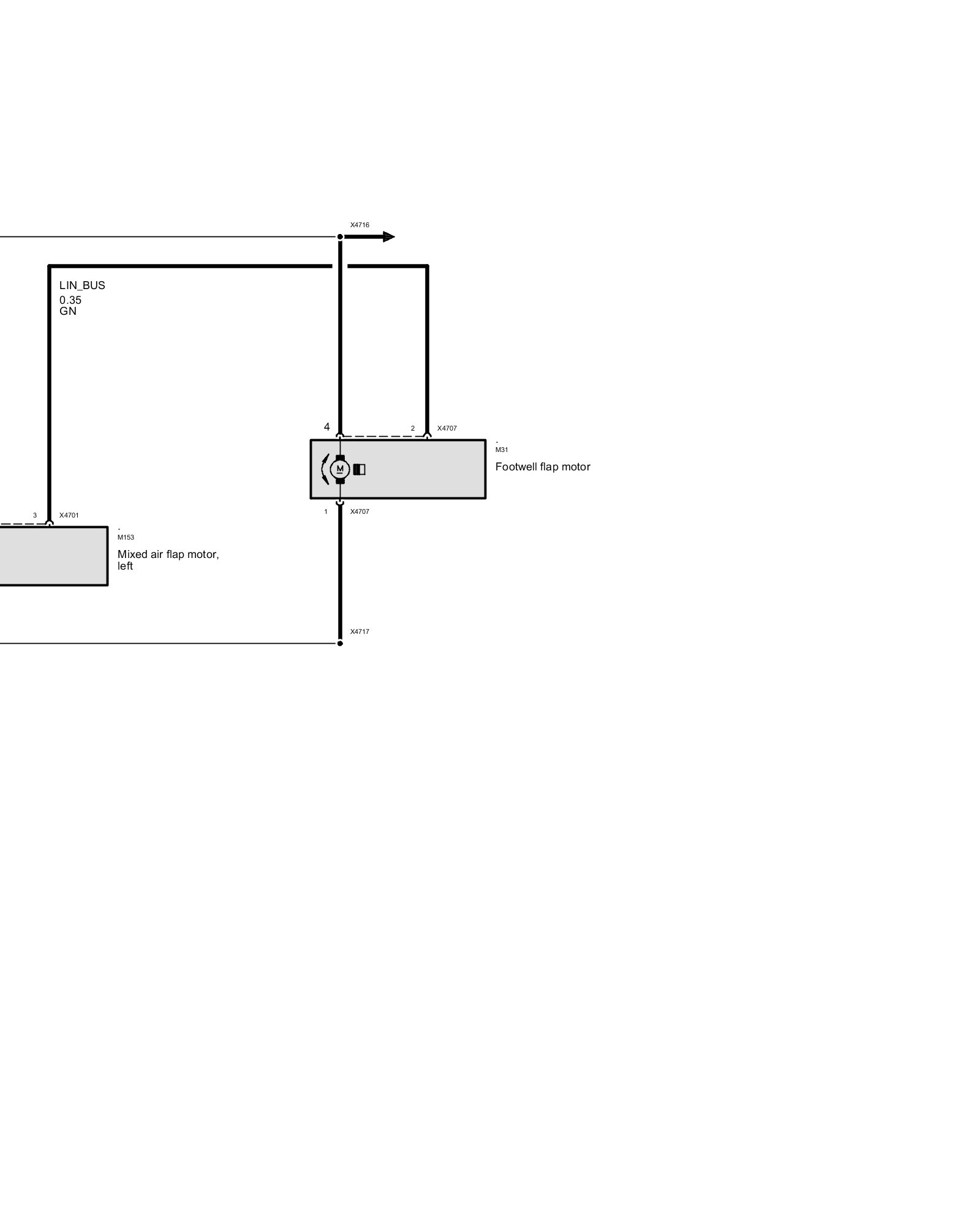

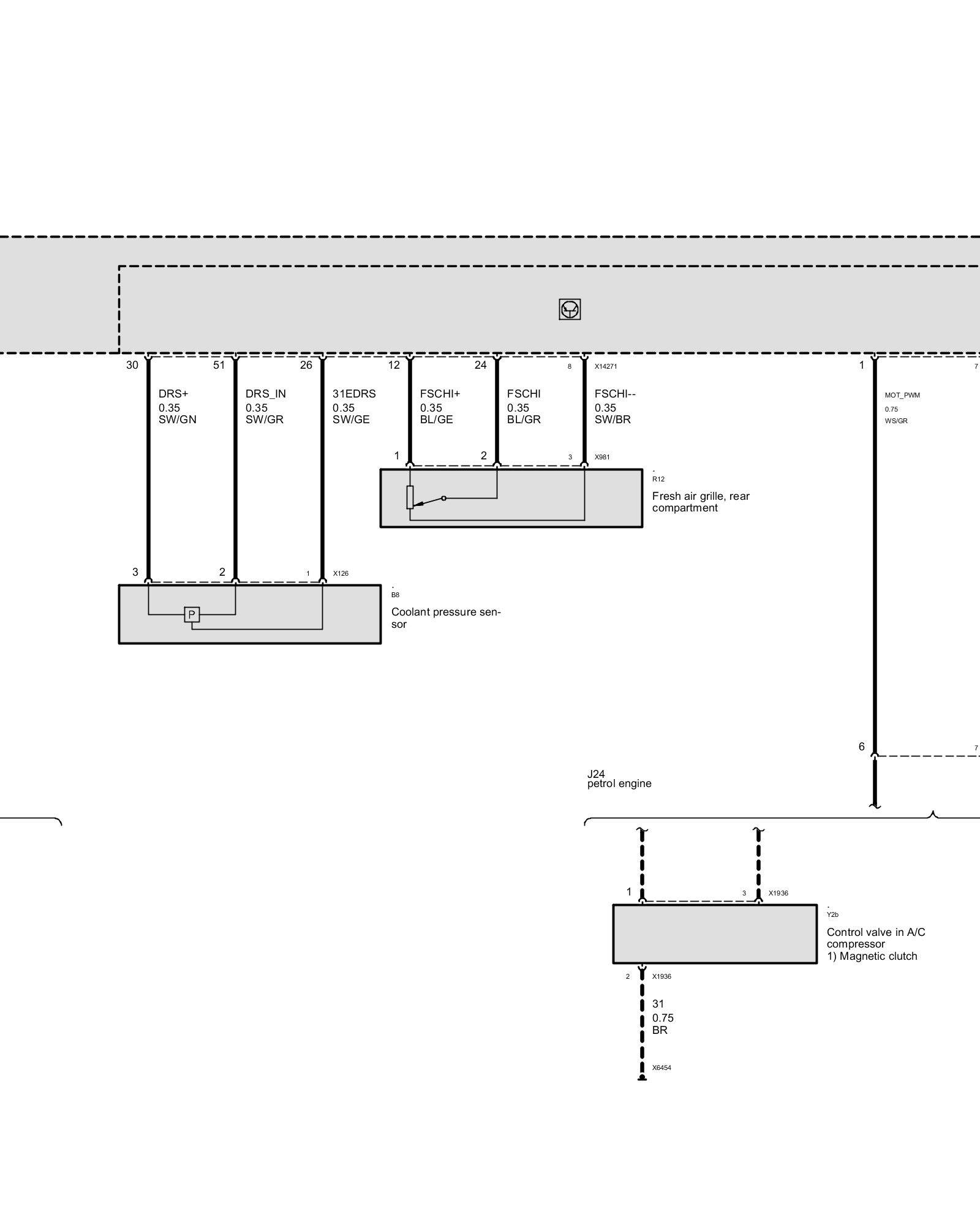

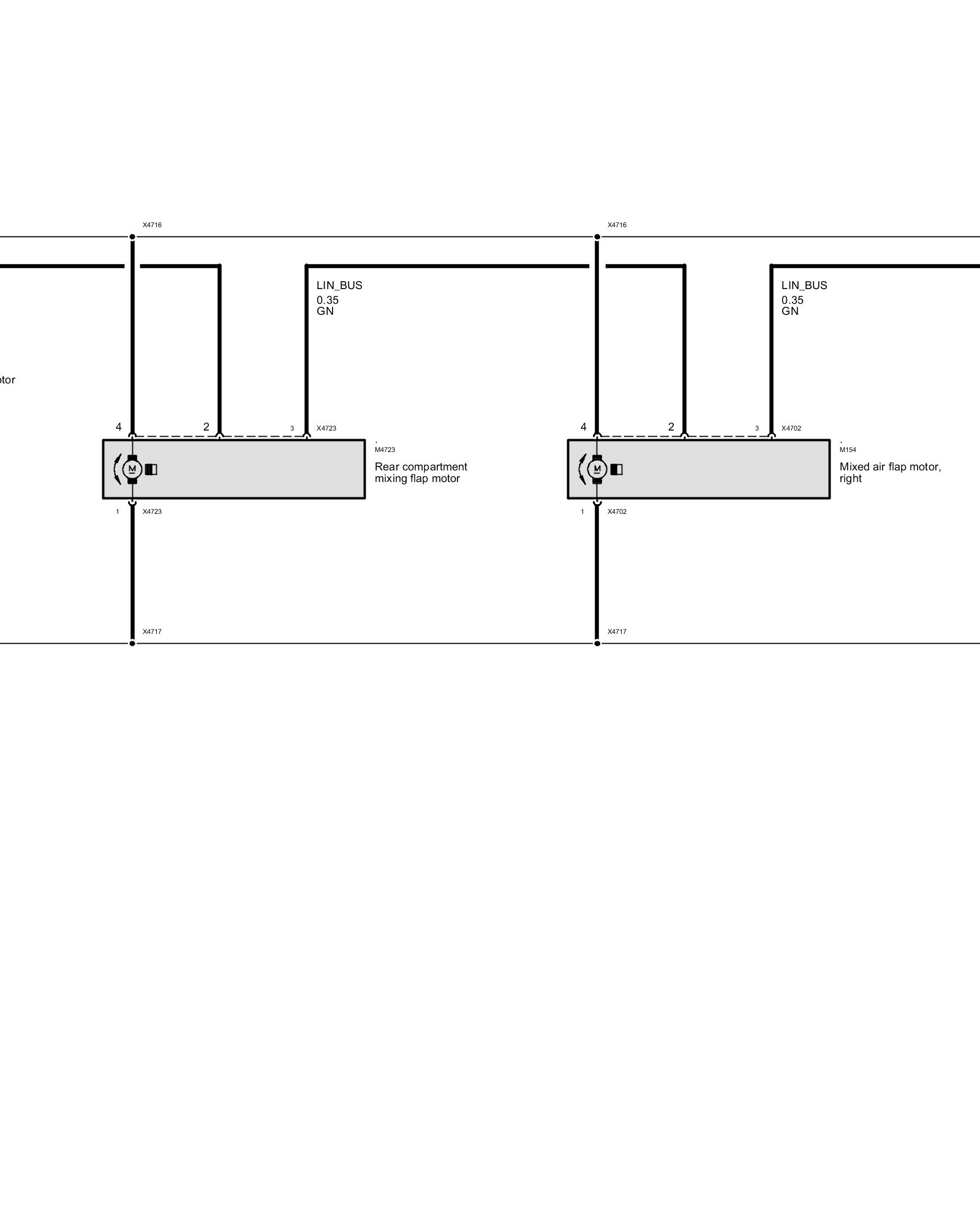

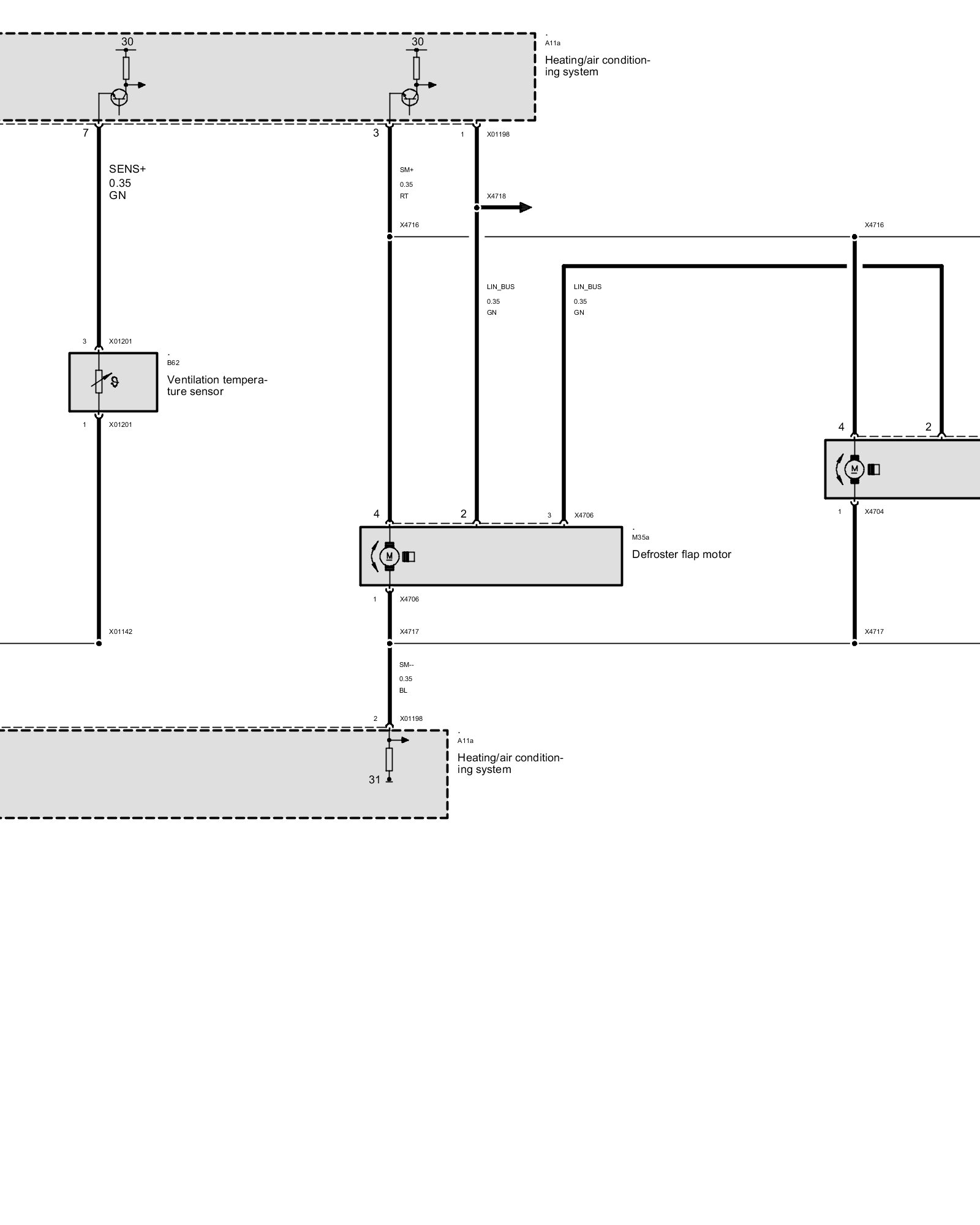

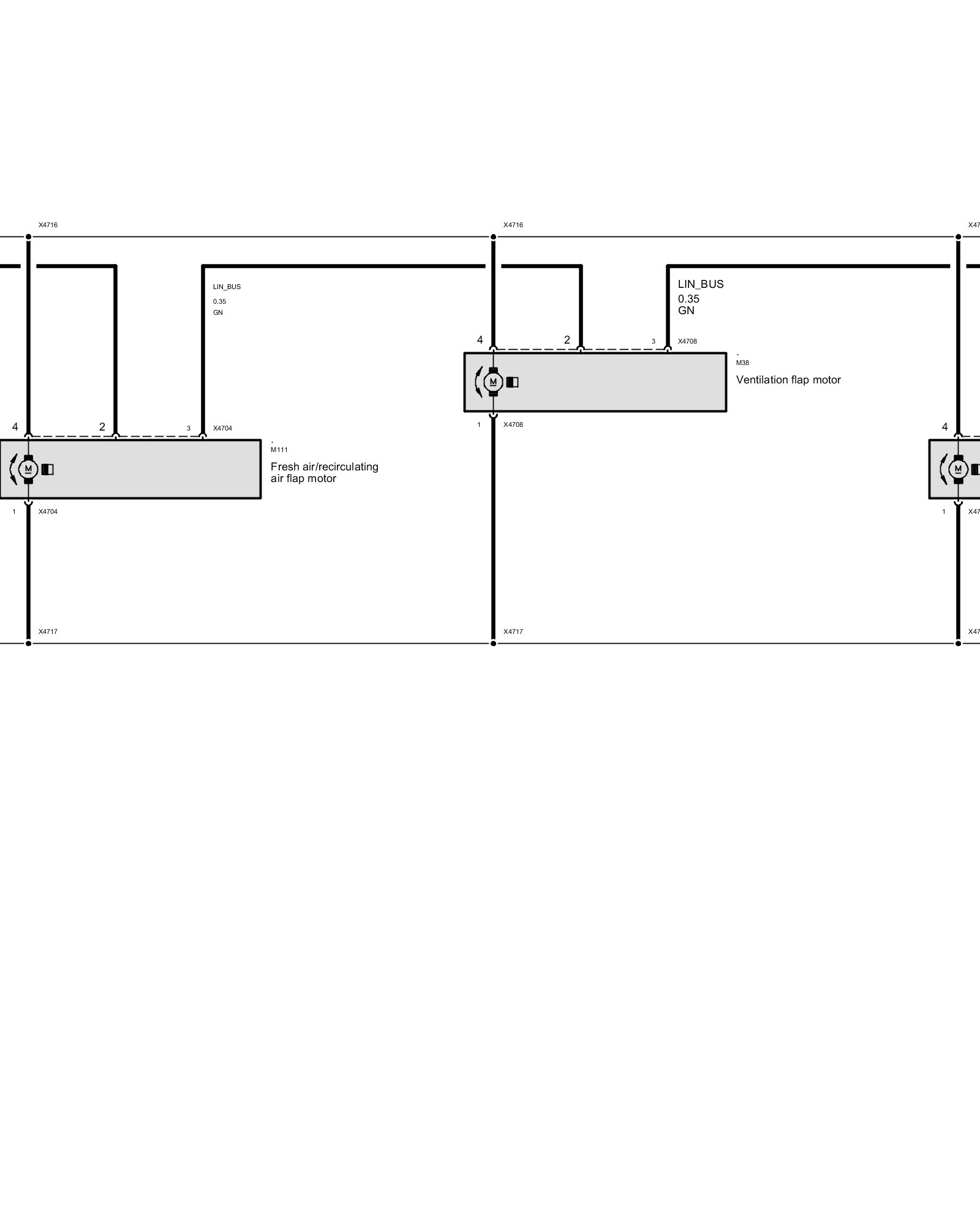

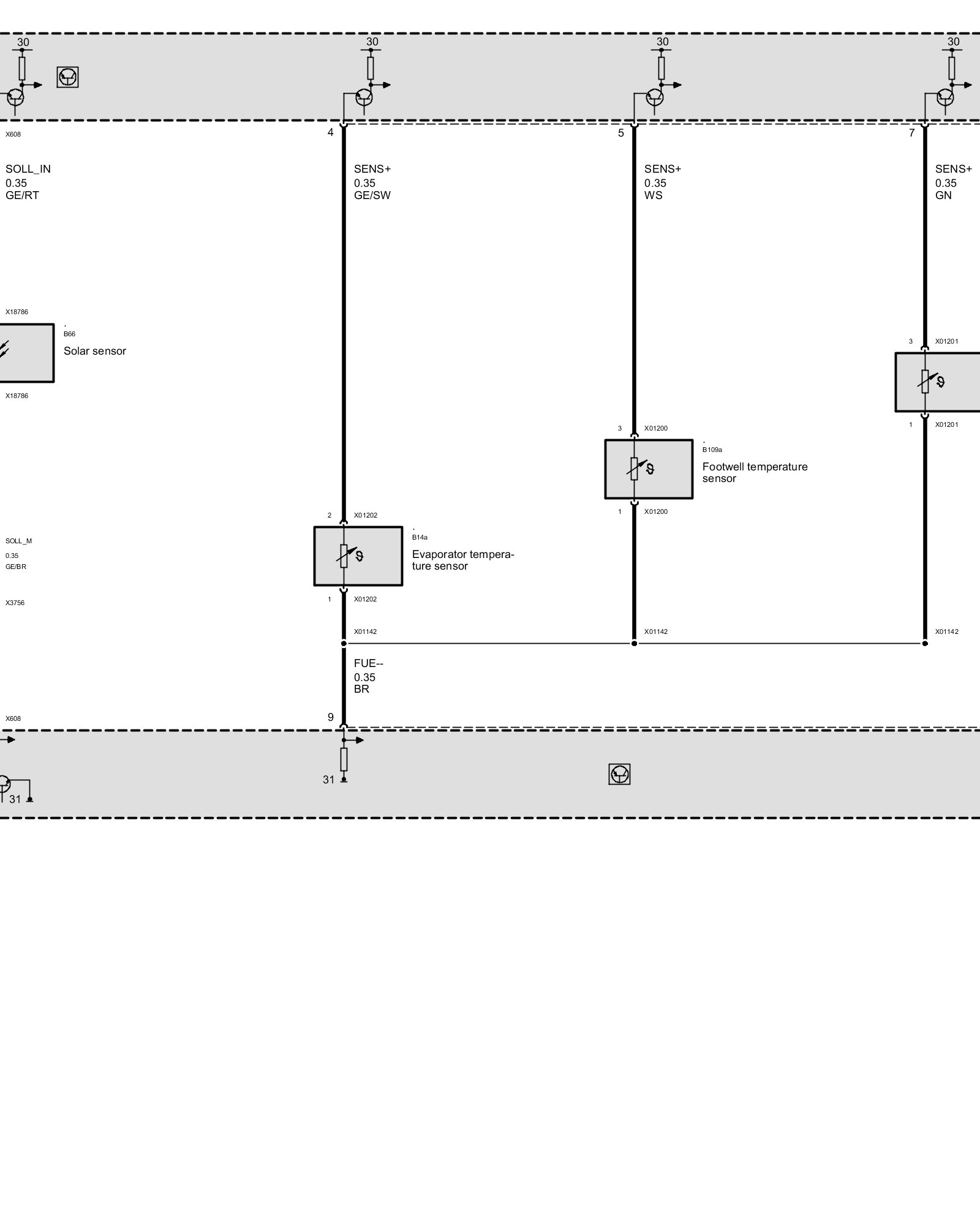

Heating and Air Conditioning Functions

As of 03/07 Up to 09/07
