Roller Cover

Roller cover
Repair instruction for roller cover

Cause
Too much side play between roller cover and mounting

Repair instruction
1. Shift the roller cover to the centre of mounting and remove
2. Undo the mounting on one side
3. Shift the mounting inwards by a maximum of 2 mm
4. Tighten the mounting again and fit the roller cover
5. Check the unlocking procedure by applying one side of the roller cover to a mounting
6. Check the play between the roller cover and the mounting (2 to 3 mm)

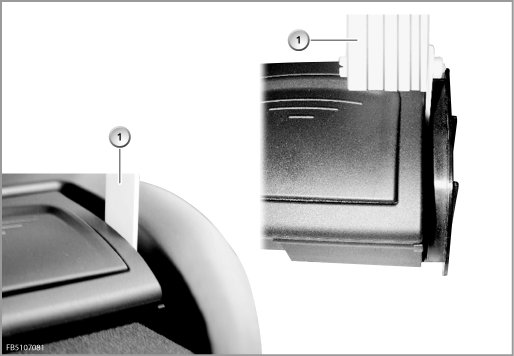

Play of roller cover






(1) Feeler gauge
