Guide Pulley, Pullout Tube

Telescopic tube guide pulley
Repair instruction for telescopic tube guide pulley

Cause
The guide pulley (1) of the telescopic tube is broken.






(1) Guide pulley
Repair instruction
1. Remove the roller cover from the vehicle
2. Turn the flap upwards
3. Drill out the rivets (if present)
4. Undo the screws from the handle and remove the handle
5. Pull out the telescopic tube
6. Guide in the new telescopic tube
7. Insert the new handle and secure with two screws
8. Install the roller cover in the vehicle
9. Carry out function test

Notes

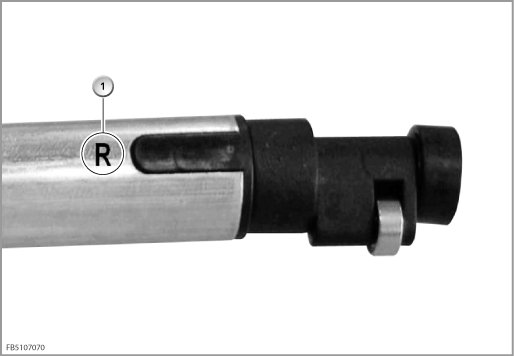

- The identification mark (1) on the telescopic tube must point to the right in the direction of travel!
- Do not drill or rivet the new telescopic tube!






(1) Identification mark
