DME Control Module

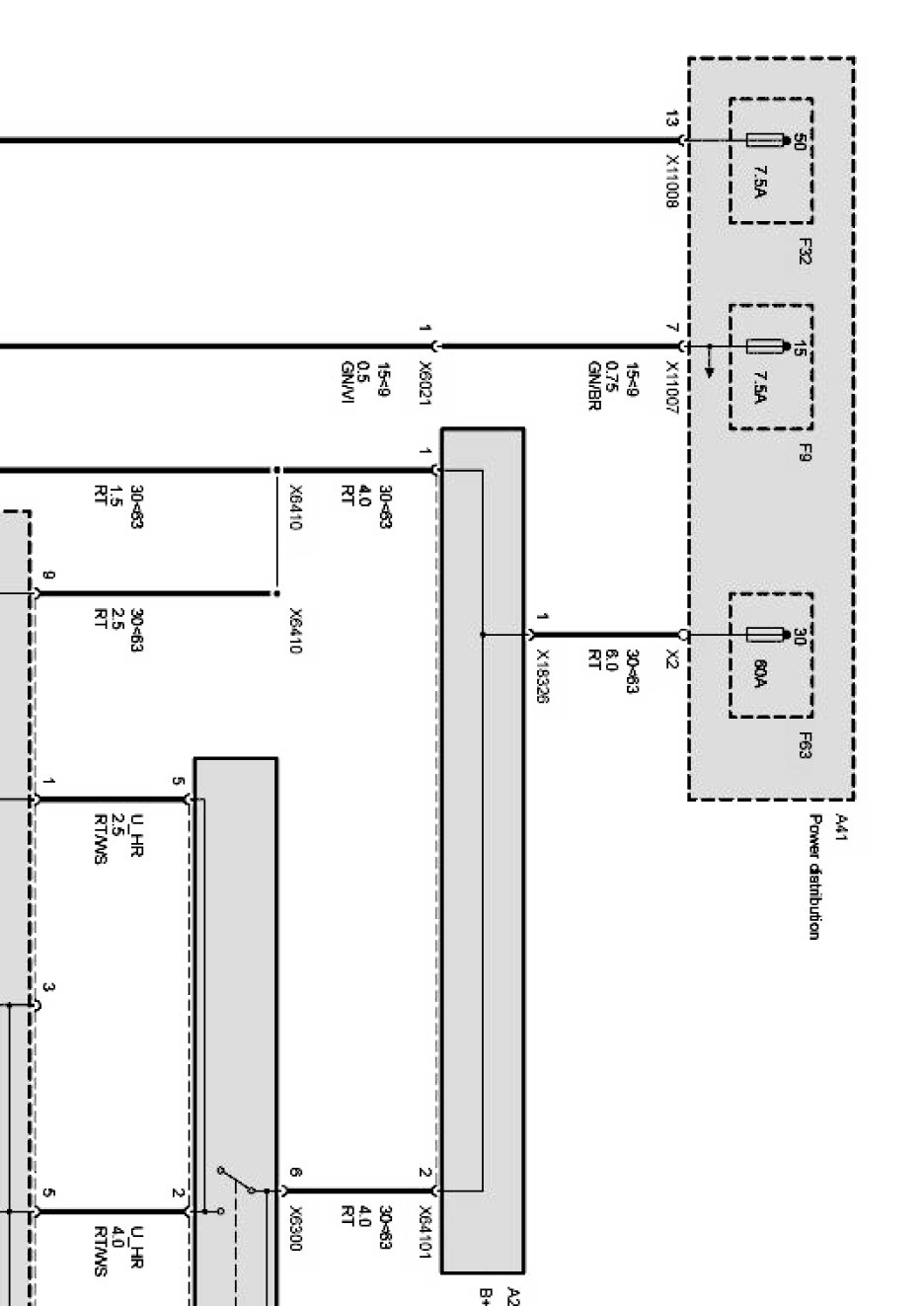

Voltage supply Part 1:

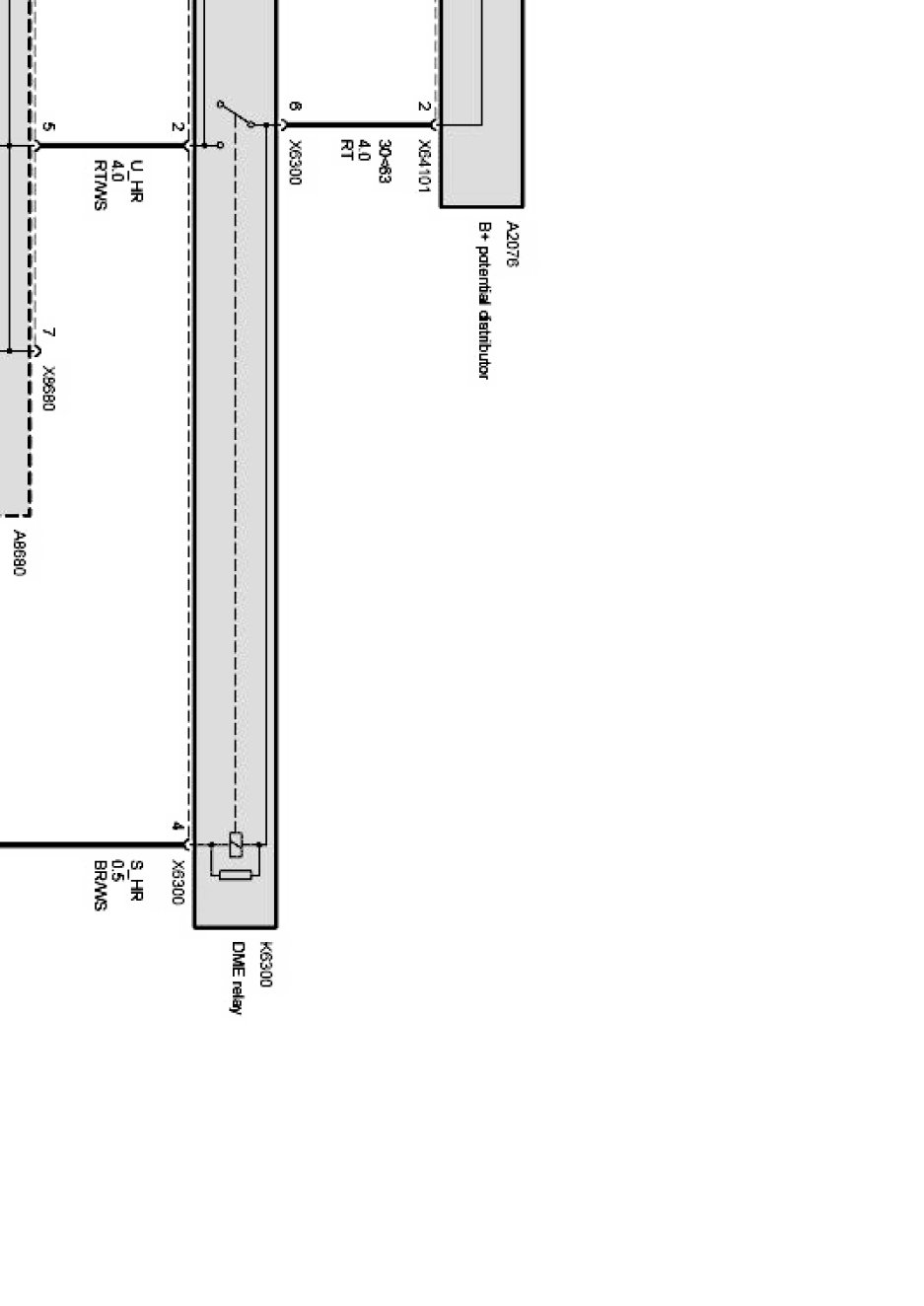

Voltage supply Part 2:

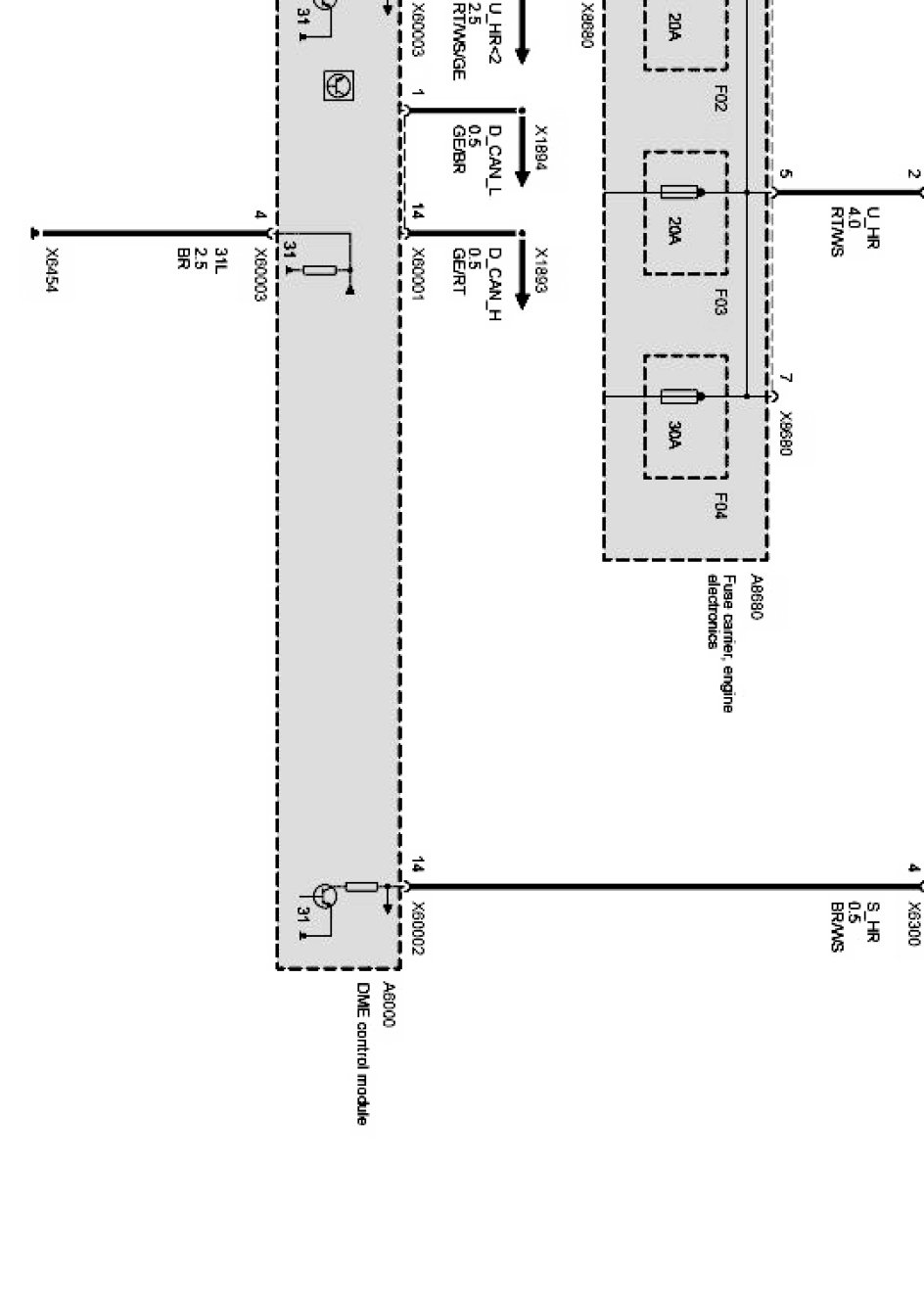

Voltage supply Part 3:



Voltage supply Part 4:
