Wiring Harness For Heated Rear Window

Replacing Wiring Harness For Heated Rear Window

Necessary preliminary tasks:
- Remove convertible top

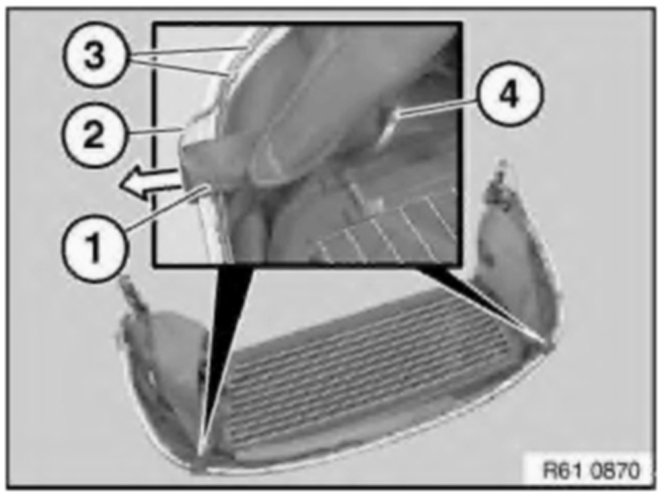

Disconnect plug connection (4).
Feed out cable loom (2) in direction of arrow out of pocket (1).
Release screws (3) and open cable holders (approx. 10 x) along aluminum rail.
Feed out and remove wiring harness for heated rear window.
