Base of Tab Connector Housings




Base Of Tab Connector Housings

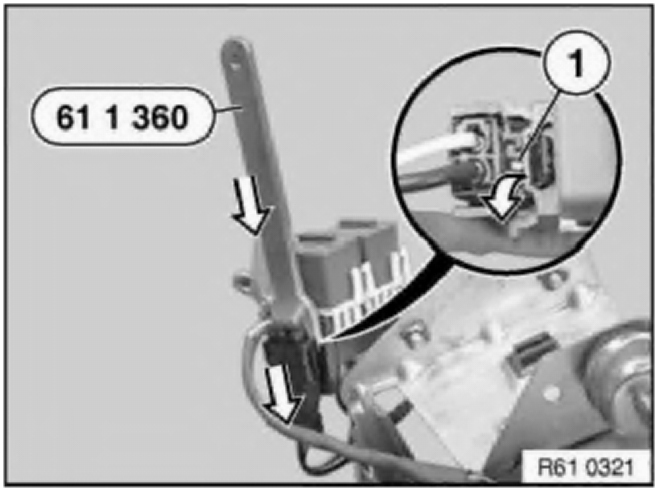

Unlock hook (1) with special tool 61 1 360 and slide plug housing downwards out of base.
