Removing and Installing/Replacing Left or Right Wind Deflector



54 34 ... Removing And Installing/Replacing Left Or Right Wind Deflector

Necessary preliminary tasks:
- Remove cover on rollover protection bar

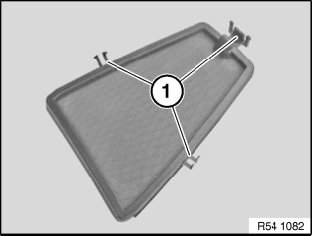

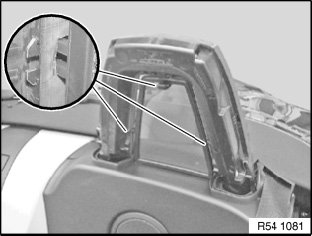

Unclip wind deflector and remove towards rear.







Wind deflector must be replaced if clips are faulty.
