Front Door Window Motor: Service and Repair

Removing And Installing/Replacing Flat Motor For Front Left Or Right Power Window

Necessary preliminary tasks:
- Close window in front door.
- Remove sound insulation on front door.

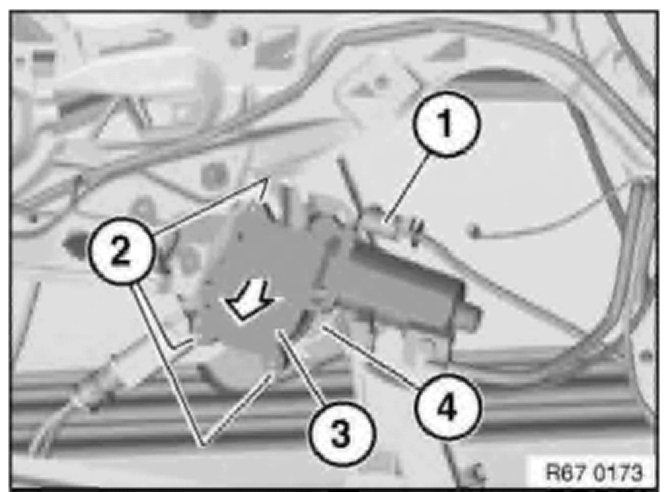

Unlock plug connection (1) and disconnect.
Loosen screws (2).

Installation:
Tightening torque 4.5 ± 0.5 Nm.

Detach flat motor for window lift (3) in direction of arrow from window lift (4) and remove from door.
