Steering Wheel: Service and Repair

32 33 000 Removing and installing/replacing steering wheel

Necessary preliminary tasks:
^ Remove airbag unit.
^ Move steering wheel/wheels to straight-ahead position





Release screw and remove steering wheel.
If necessary, modify switch unit.





Installation:
Move wheels to straight-ahead position.

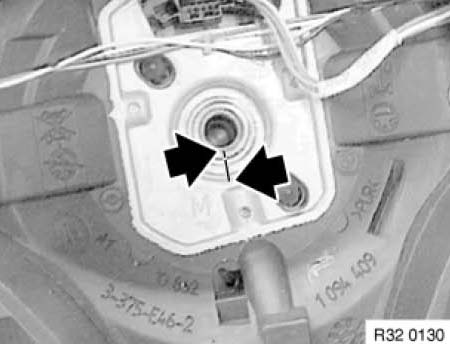

Fit steering wheel. Markings on steering wheel and steering spindle must match up.
