Engine Speed

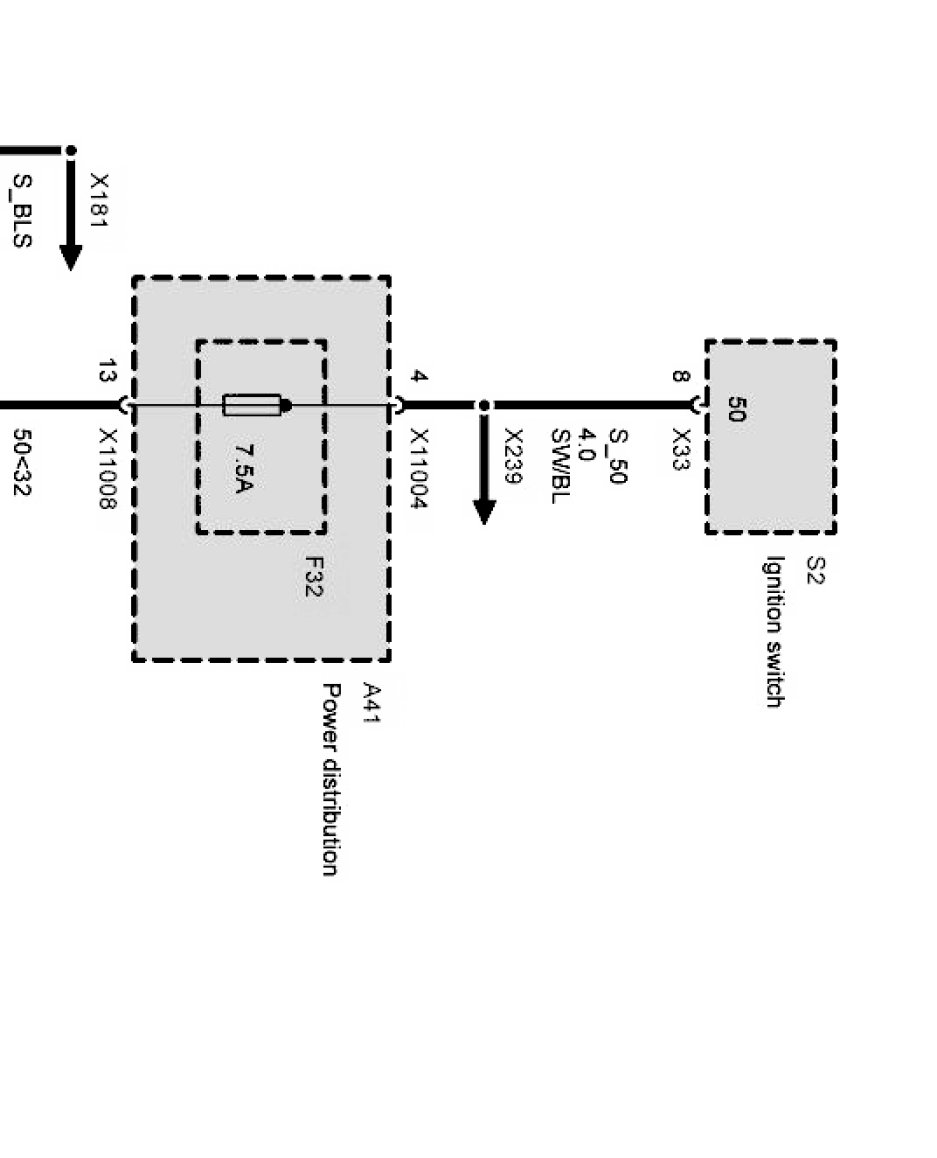

SMG interfaces Part 1:

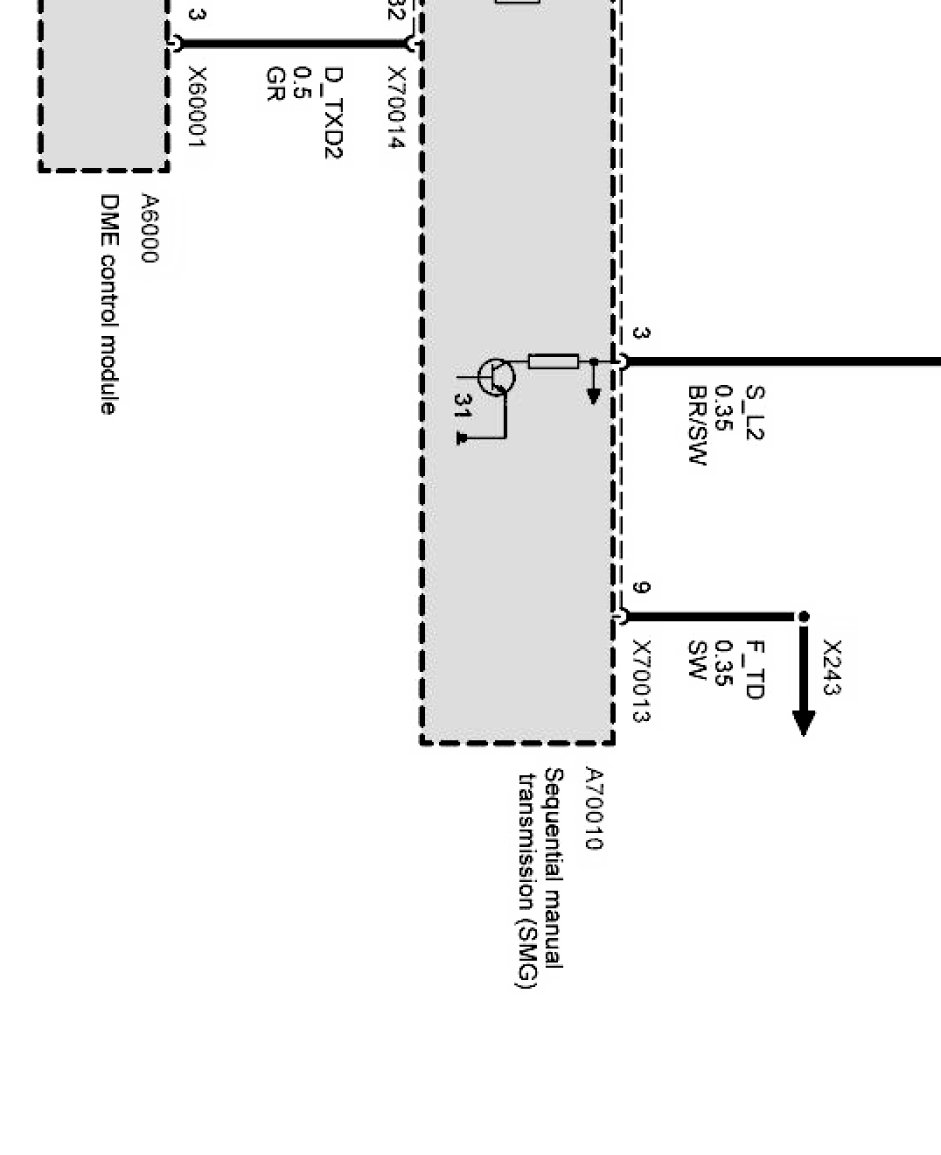

SMG interfaces Part 2:

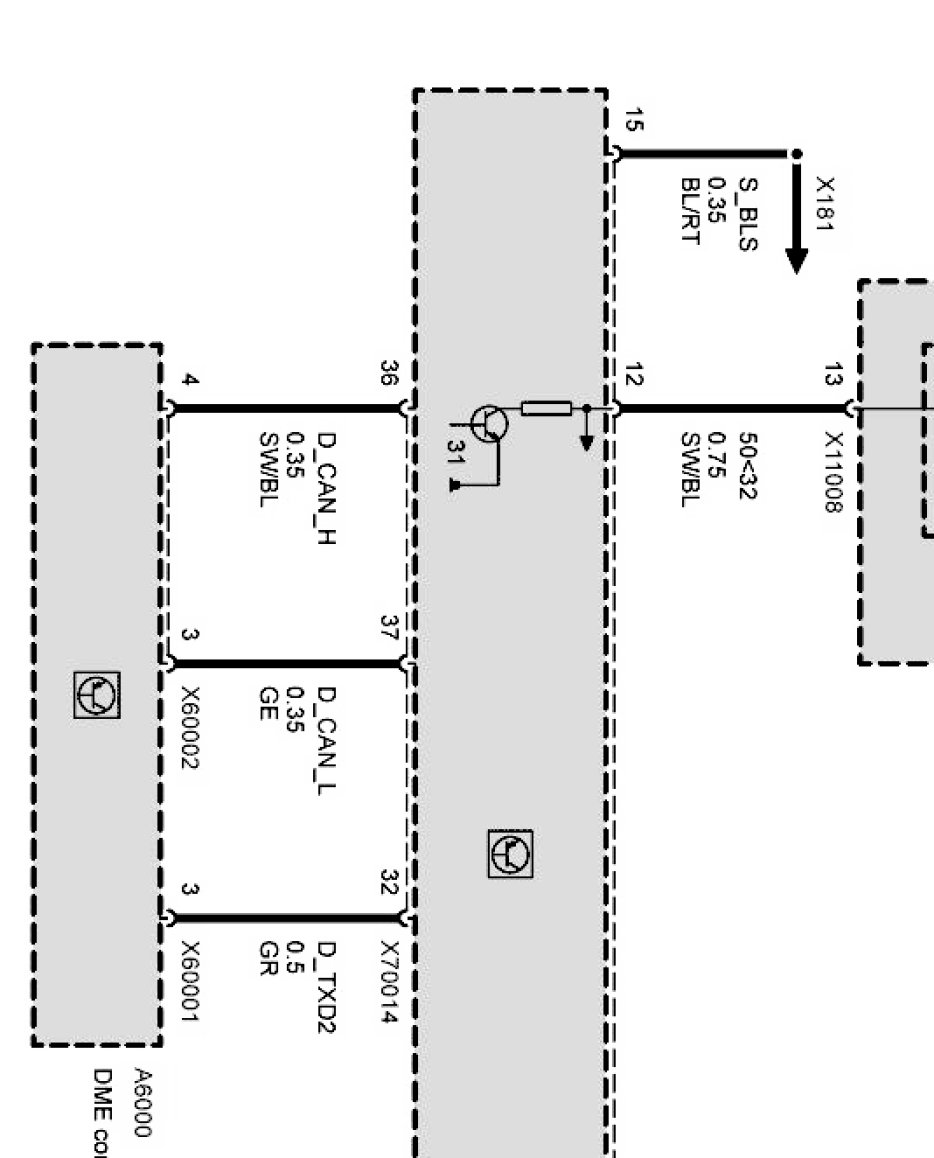

SMG interfaces Part 3:

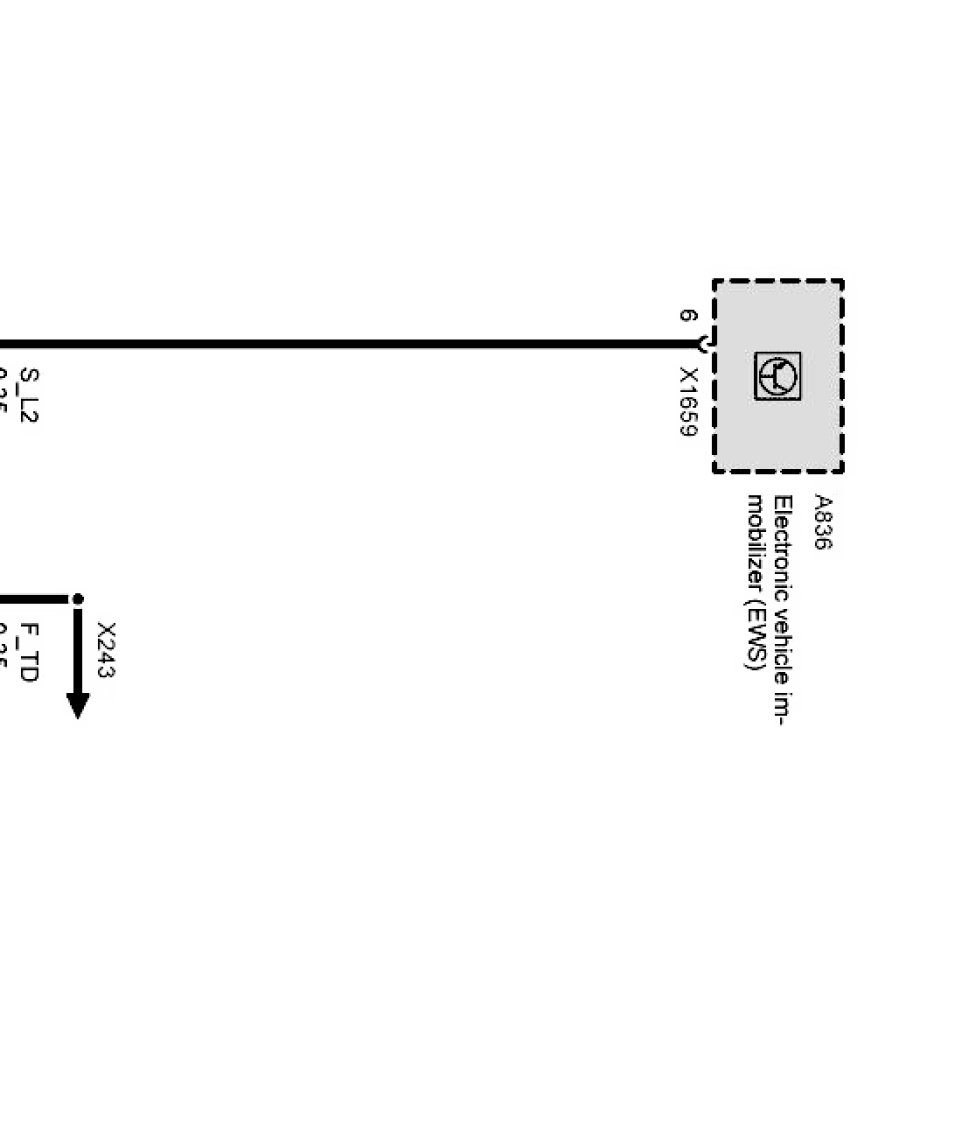

SMG interfaces Part 4:
