Side Light (Z Series_Z4-E85/E86 With (As of 03/04 Up to 01/06))
Side Light (Z Series_Z4-E85/E86 With (As of 03/04 Up to 01/06))

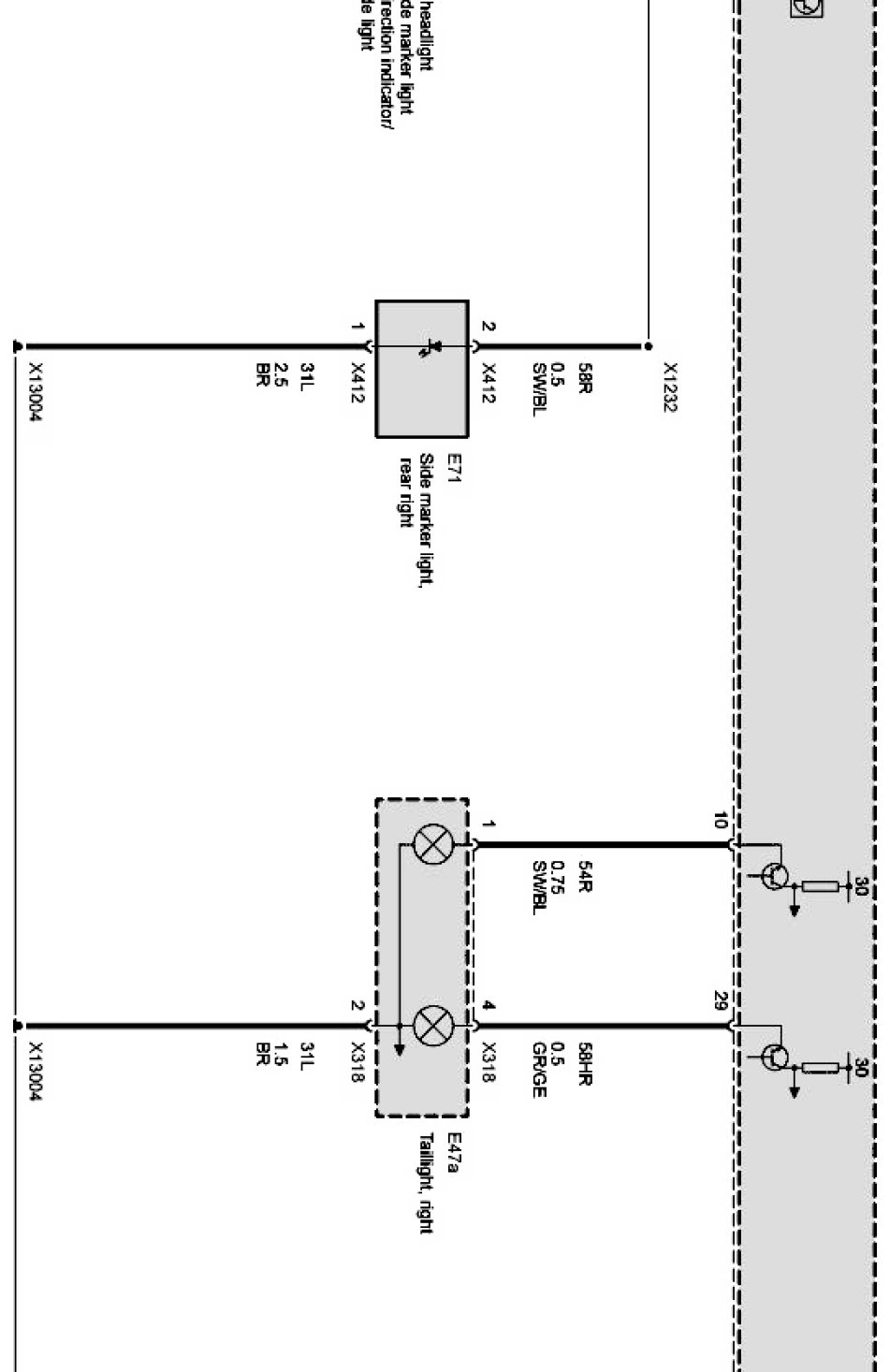

Sidelights Part 1:

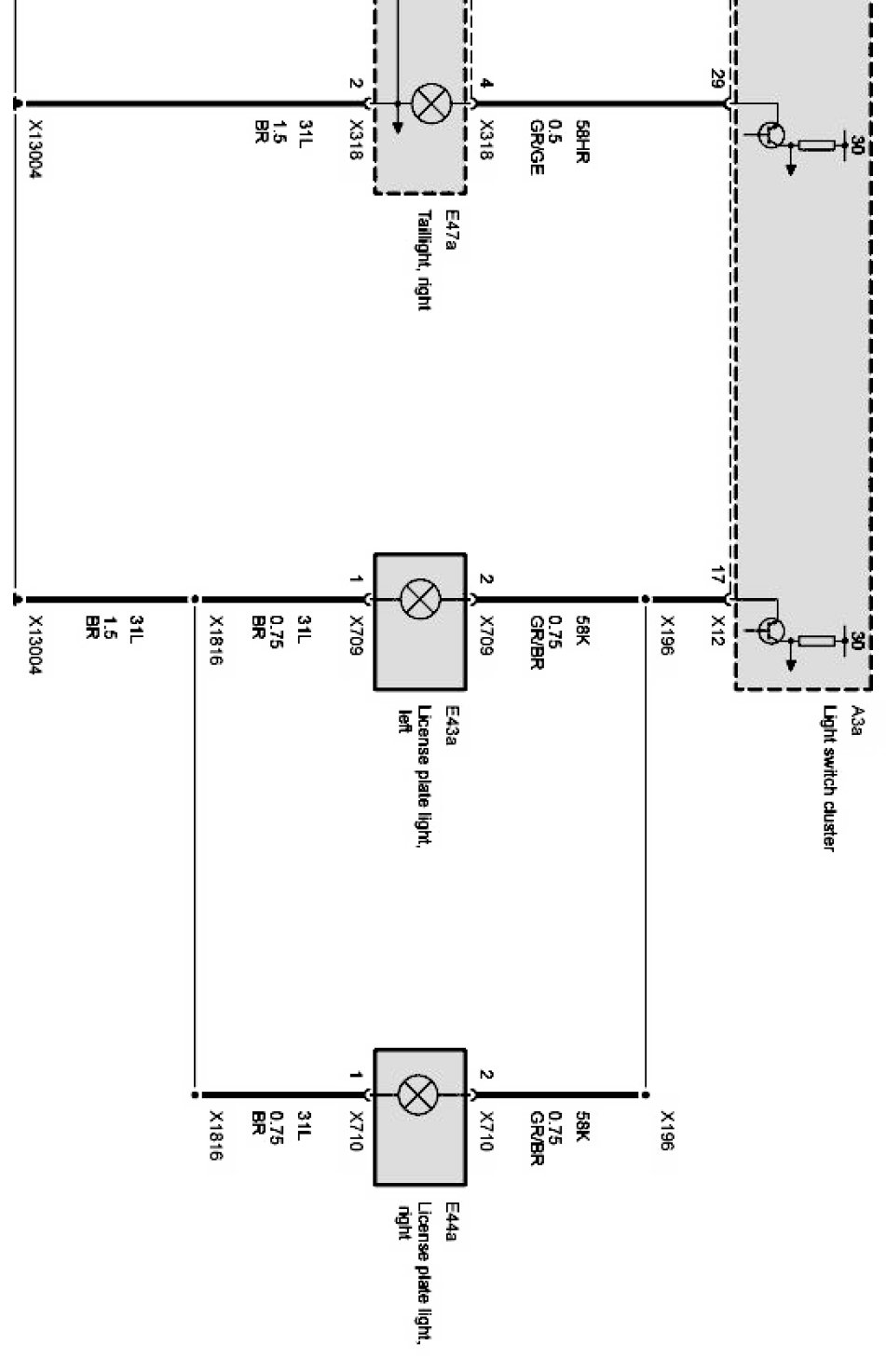

Sidelights Part 2:

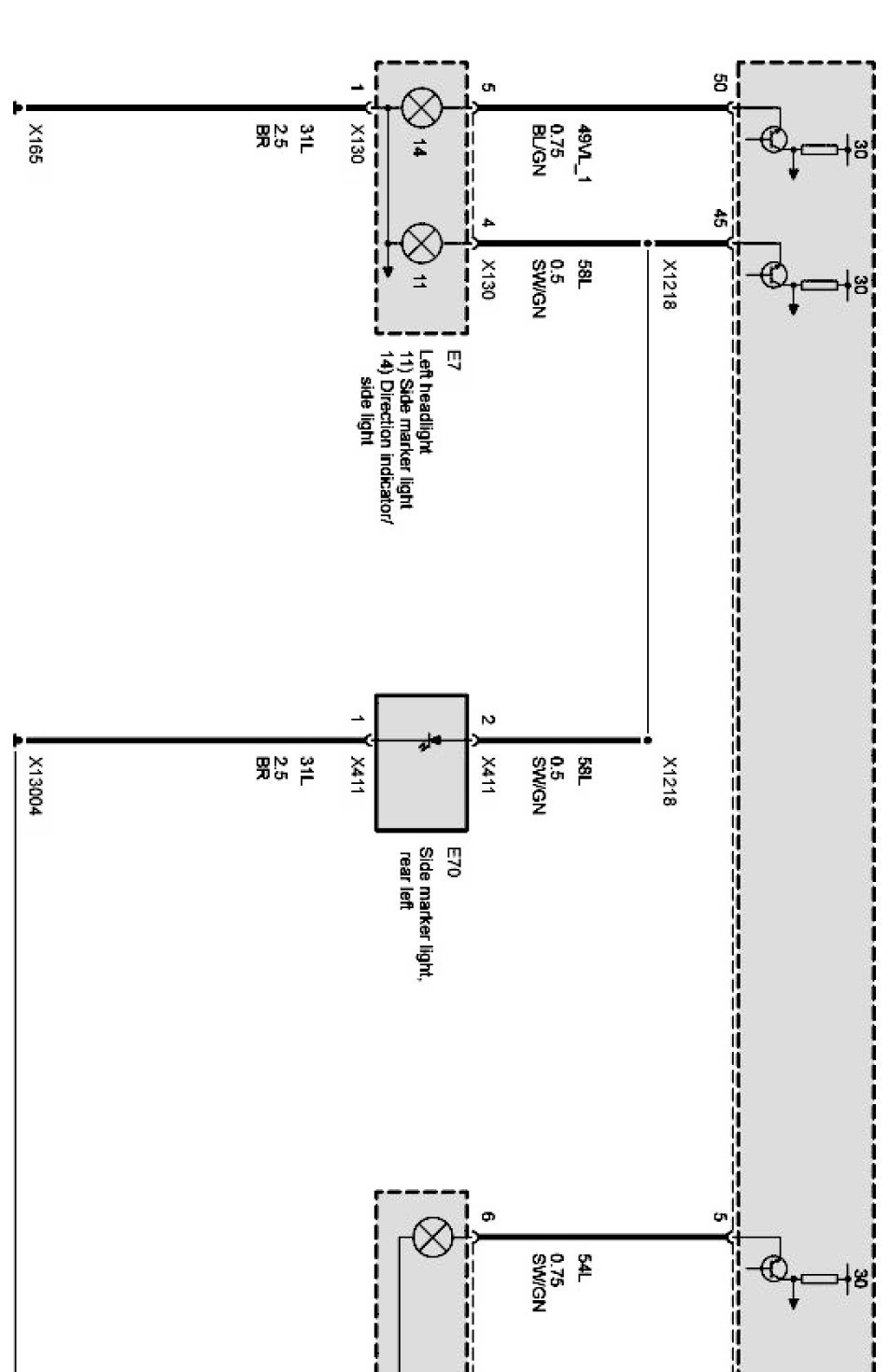

Sidelights Part 3:
Sidelights Part 4:
