Instrument and Locator Lights For Control Modules (Z Series_Z4-E85/E86 As of 01/06 Up to 03/06)

Instrument and locator lights for control modules Part 1:

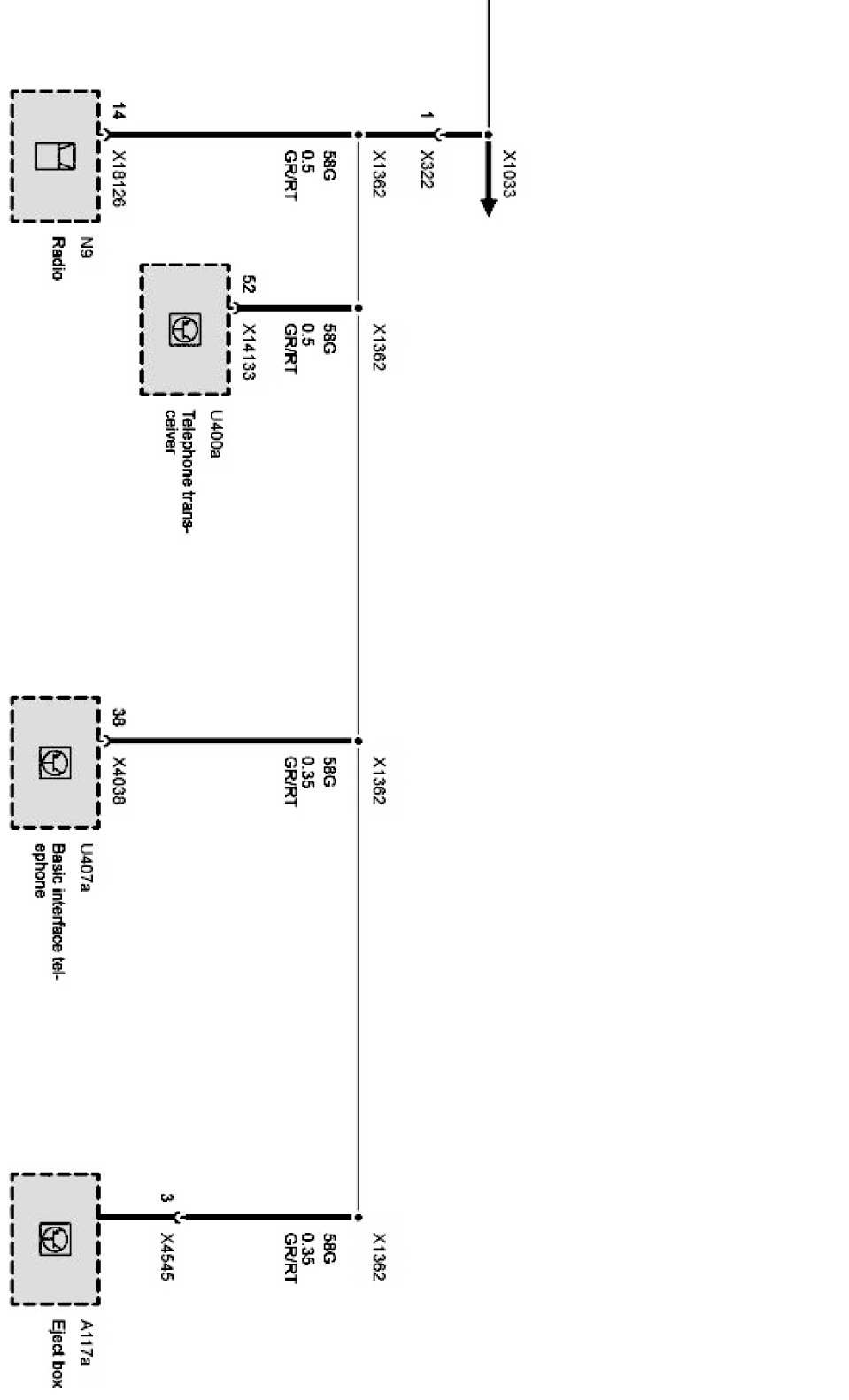

Instrument and locator lights for control modules Part 2:
