Interface Signals CD Changer/Radio (Z Series_Z4-E85/E86 Without NAV Computer Without Top Hifi System E85)
Interface Signals CD Changer/Radio (Z Series_Z4-E85/E86 Without NAV Computer Without Top Hifi System E85)

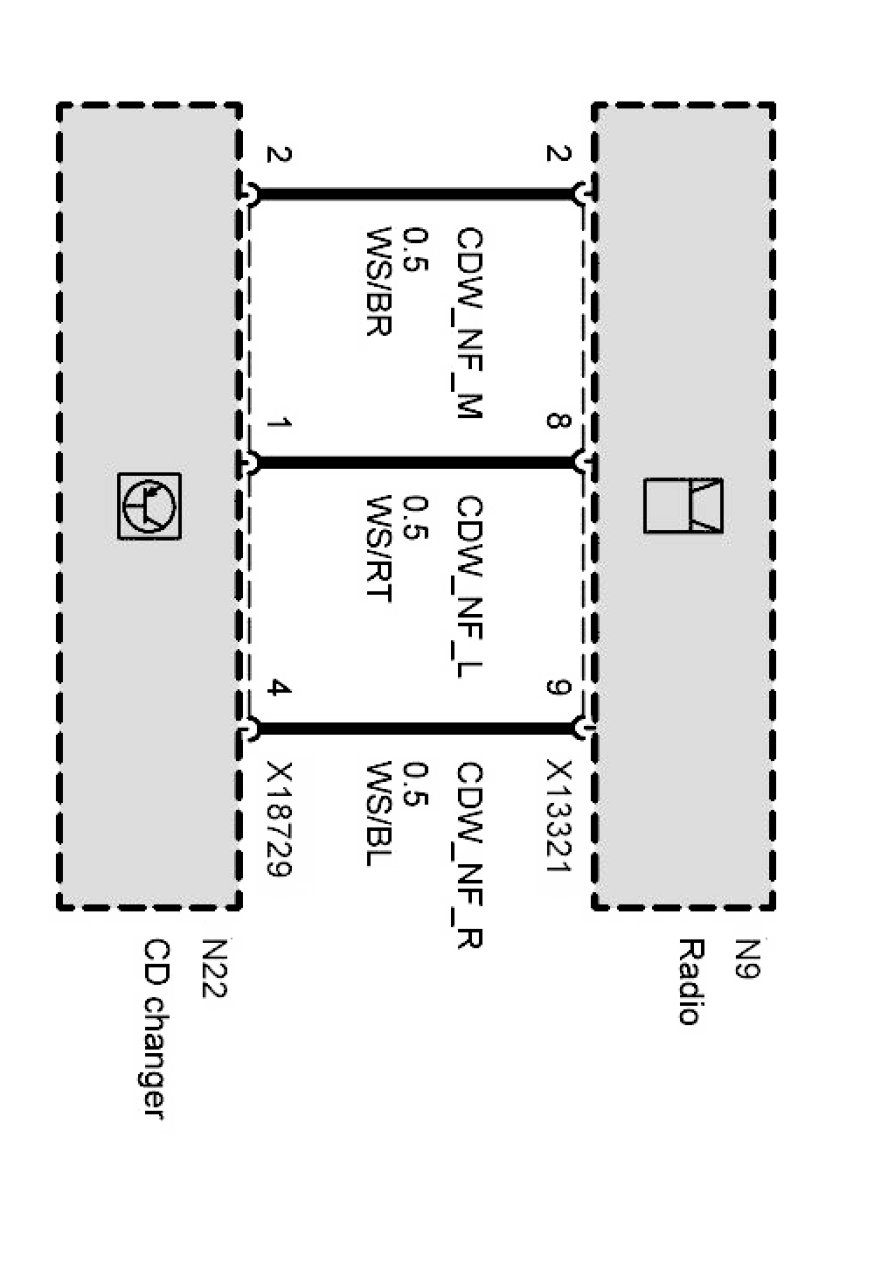

Interface signals CD changer/radio:
