X60005
>>
A6000 DME Control Module (Z Series With N52 Engine Up to 09/06)
A6000 DME Control Module (Z Series With N52 Engine Up to 09/06)
X60005:

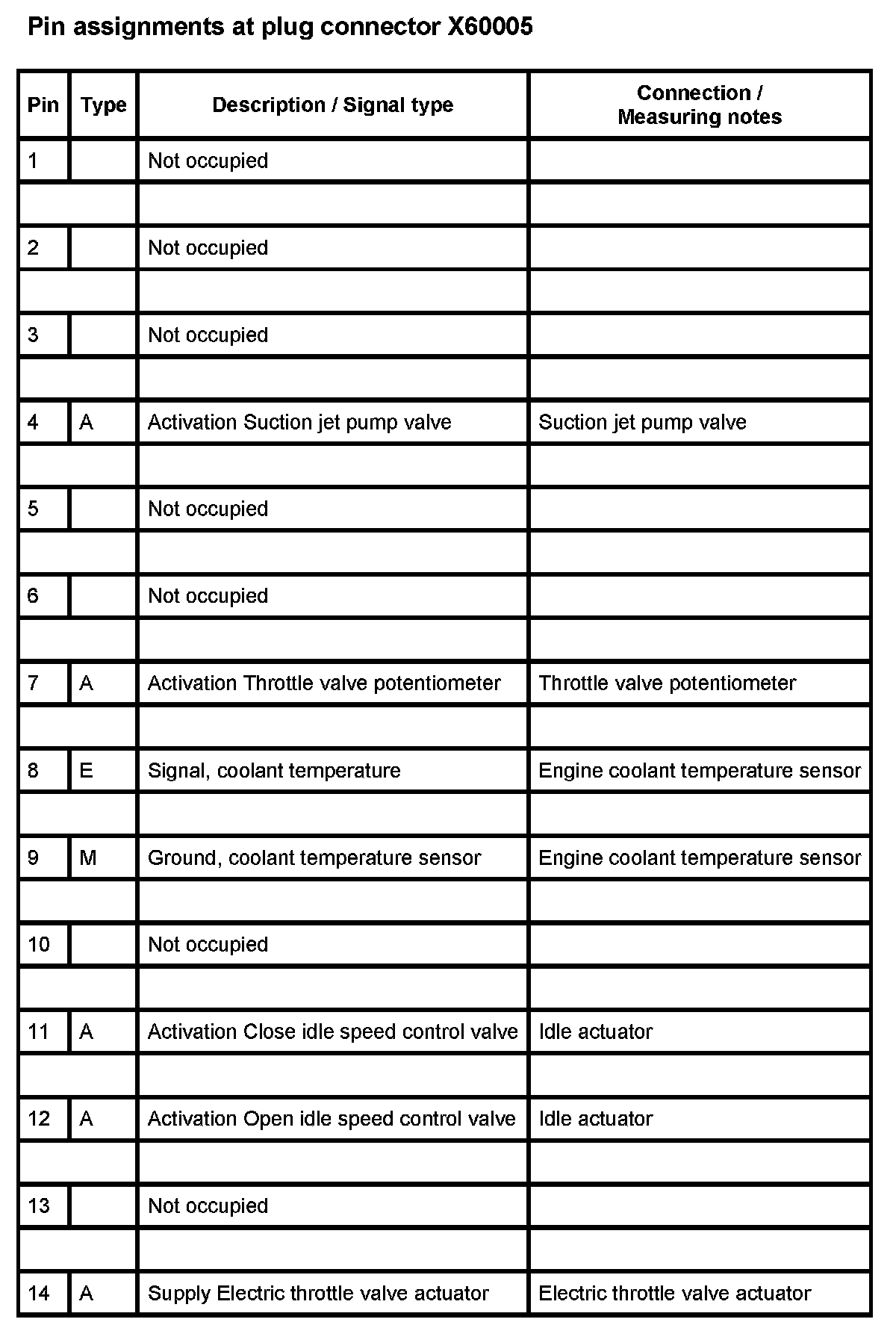

X60005 - Part 1:

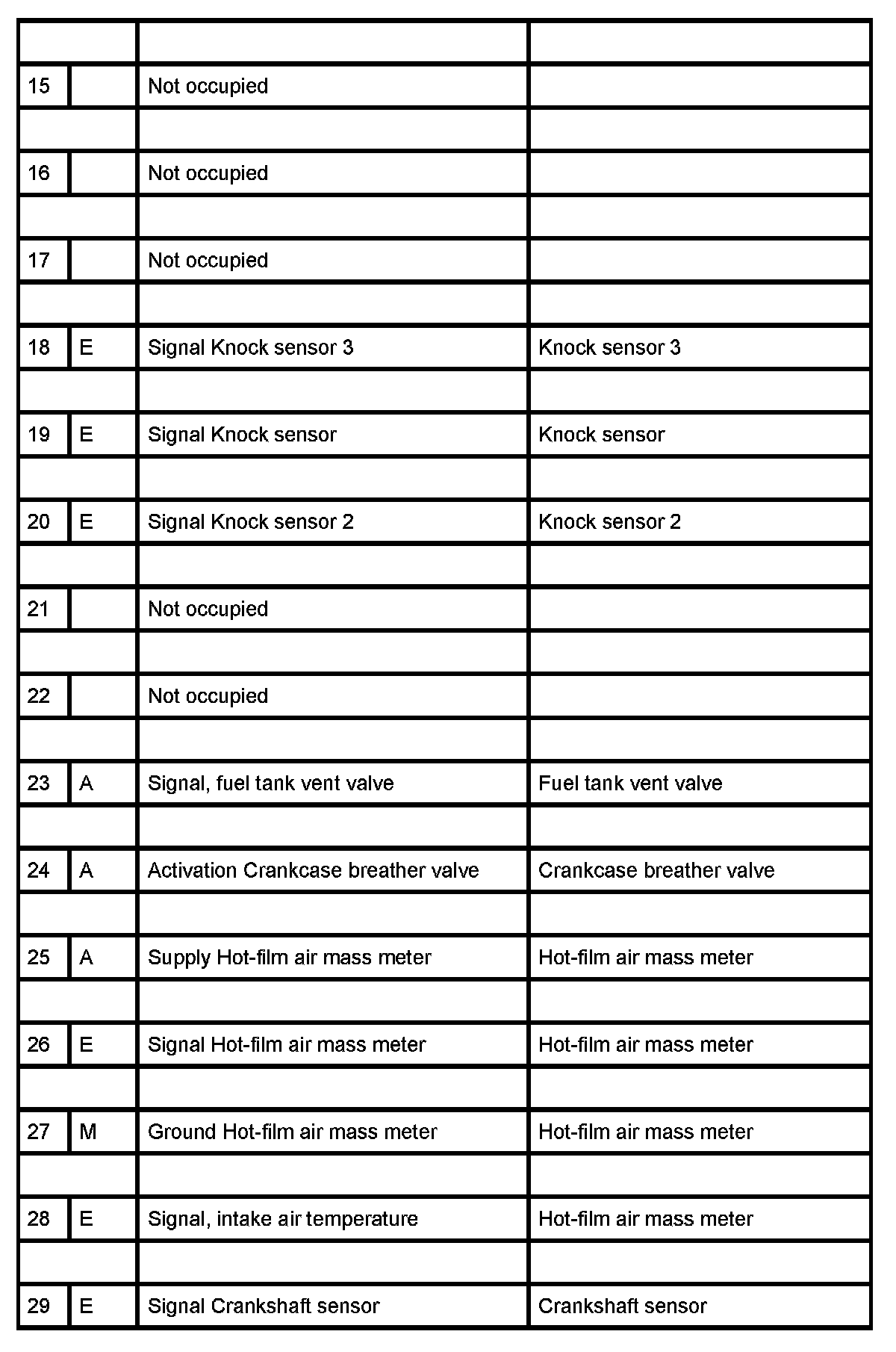

X60005 - Part 2:

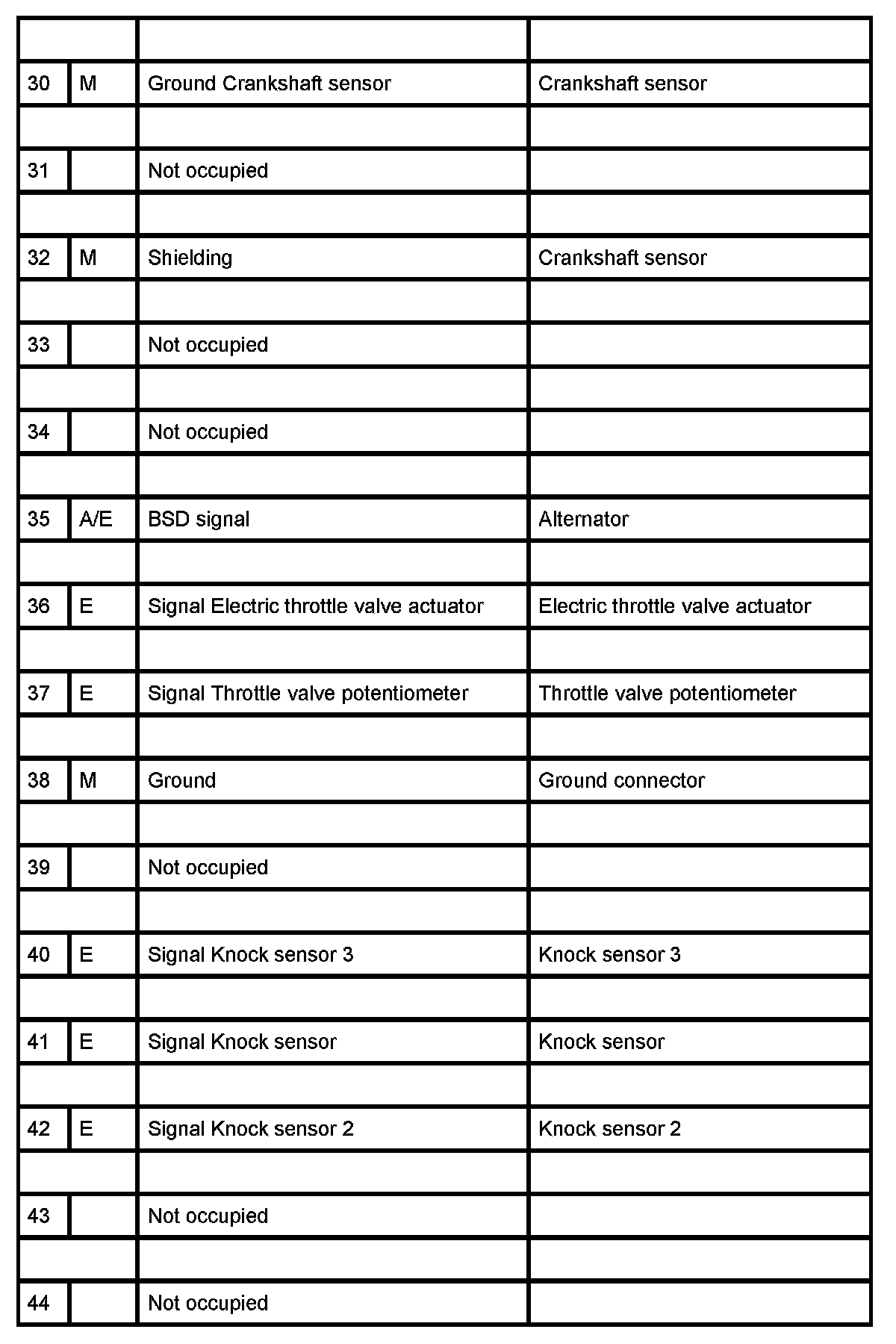

X60005 - Part 3:
