Removing and Installing/Replacing Brake Unit (MK60)

34 33 505 Removing and installing/replacing brake unit (MK60)

DSC (Dynamic Stability Control)

Note: General Information.

Remove brake master cylinder for DSC (MK60).
Remove brake pedal.
Remove vacuum hose for brake booster.
Remove sound generator. (Applicable to Z4 3.0 only)
After completing work: Bleed brake system with DSC.





Release nuts (1).

Installation:
Replace self-locking nuts.






Note: Do not use any force when removing and installing the brake unit; the brake unit can be damaged under certain circumstances.

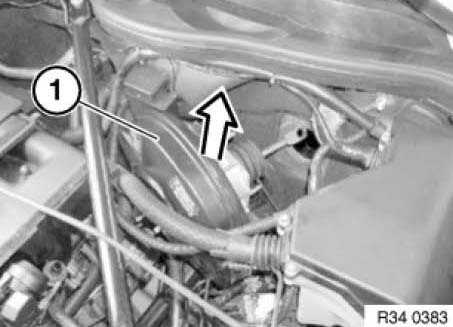

Carefully remove brake unit (1) from bulkhead and tilt out in direction of engine.

Remove brake unit vertically upwards out of equipment compartment.
