41 11 734 Replacing Complete Rear Tension Strut Mounting (Luggage Compartment Floor And Tail Panel Removed)

41 11 734 Replacing Complete Rear Tension Strut Mounting (Luggage Compartment Floor And Tail Panel Removed)

Read contents of body, General.
Place vehicle on straightening bench.

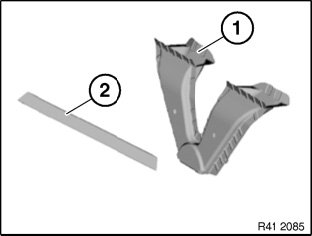

Following new body parts are required (refer to EPC):
- (1) Mounting, tension strut
- (2) Tension strut

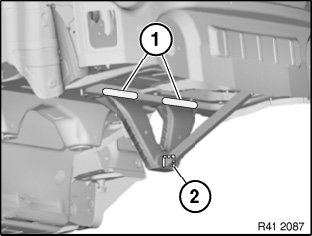

Open weld joints in areas (1).

Installation information:
Adjust tension strut mounting to fit with straightening attachment or universal mount.
Weld weld joints in area (2) after fitting luggage compartment floor.








Open weld joints in areas (1).


Installation:
Weld weld joints in areas (2) after fitting luggage compartment floor.
