Trunk / Liftgate Lock Cylinder: Service and Repair

51 24 050 Removing And Installing/Replacing Lock Element (Lock Cylinder) For Rear Lid

Necessary preliminary tasks:
- Remove lock cylinder trim

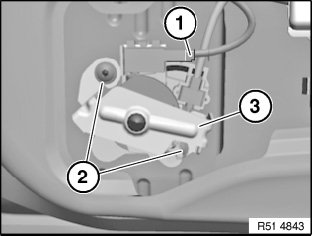

Disconnect plug connection (1).
Turn lock fastener with ignition key until screws (2) are accessible.
Release screws (2) and remove bracket (3).

Installation:
Perform function check with rear lid open.

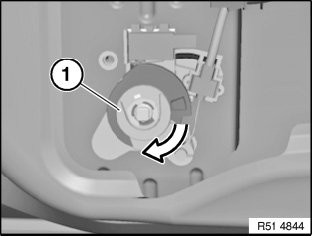

Turn lock fastener (1) through approx. 90° in direction of arrow and feed out in inwards direction.

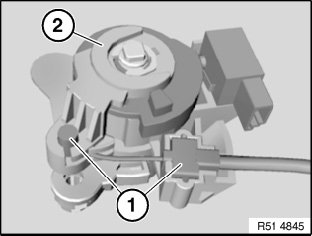

Release Bowden cable (1) from lock fastener (2).







Replacement:

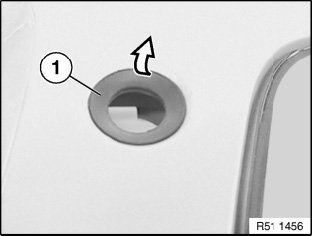

Pull off rubber grommet (1).
