RGB Signals (Without VID Video Module)

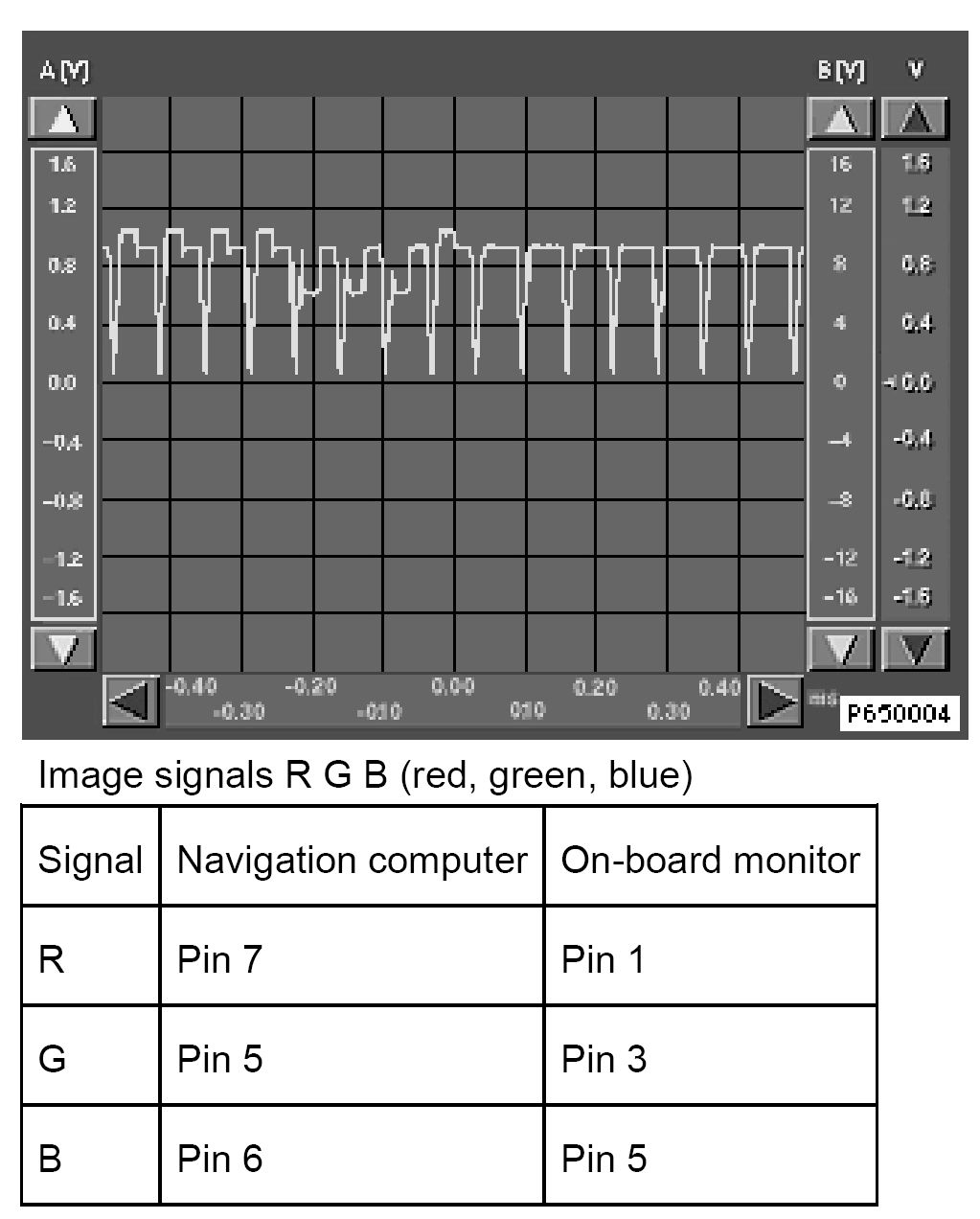

RGB Signals

All oscilloscope images are reference values and may deviate depending on the image content!












Ground LC display < Evaluate voltage range only ! >

Navigation computer On-board monitor
Pin 12 Pin 7
