32 31 010 Removing and Installing/Replacing Lower Section of Steering Column Cover

32 31 010 Removing and installing/replacing lower section of steering column cover

Necessary preliminary tasks:
^ Move steering column in "bottom" and "extended" position.
^ Remove steering wheel.

Release screw.
Open adjusting lever.
Detach cover in rear area downwards and unclip.

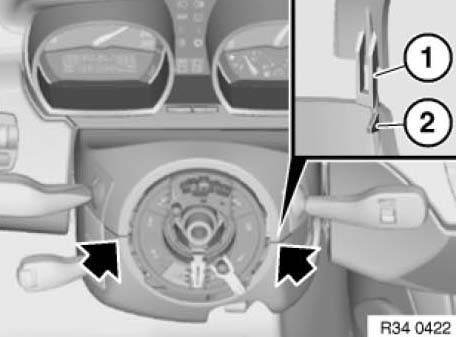

Move plastic wedge from front between upper and lower sections. Press lock (1) on left and right out of hook (2). Pull off lower section of steering column cover towards bottom.

Important:
Do not scratch steering column cover.
Do not damage locks.





Installation: Locks (1) must snap into place in hooks (2) on left and right.
