32 31 004 Removing and Installing/Replacing Upper Section of Steering Column Cover

32 31 004 Removing and installing/replacing upper section of steering column cover

Necessary preliminary tasks:
^ Remove lower section of steering column cover.

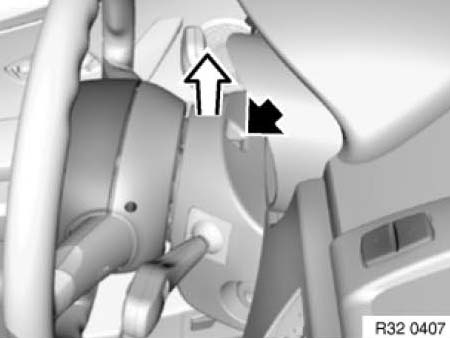

Release screw.
Pull off upper section of steering column cover upwards.
Unclip steering wheel cover from instrument cluster.
Installation: Fit new expanding nut.

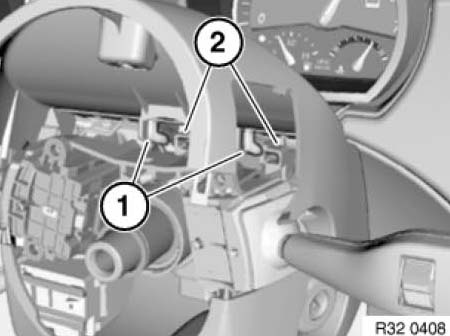

Installation: Hooks (1) must engage in guides (2) of steering column.





Installation: Clip steering wheel cover (1) into retaining clips (2) on instrument cluster.
