Replacing Spray Nozzles For Both Headlight Cleaning System

Removing And Installing/Replacing Spray Nozzles For Left Or Right Headlight Cleaning System

Necessary preliminary tasks:
- Remove fog lamp.

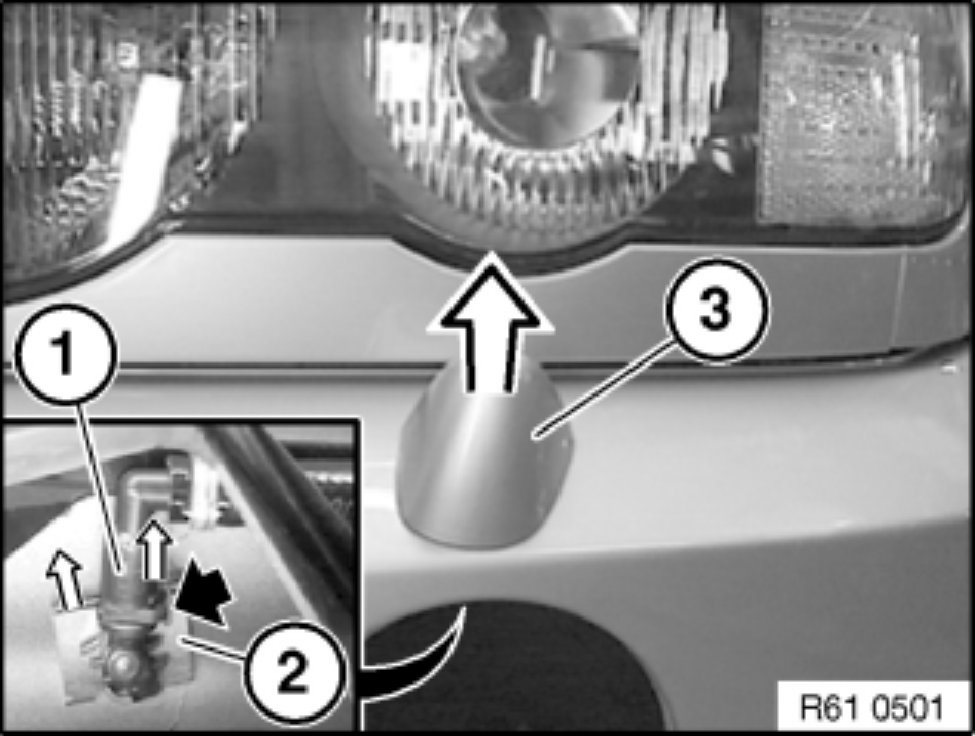

Unlock hose connection (1) and disconnect.
Unlock retainer (2) in direction of arrow and remove.
Pull out spray nozzle of headlight cleaning system (3) in direction of arrow.

Installation:







If necessary, replace backing (1).
Guides (2) of backing (1) must be located in openings (3) in trim (4).







NOTE: For purposes of clarity, illustration shows backing removed.

Replacement:

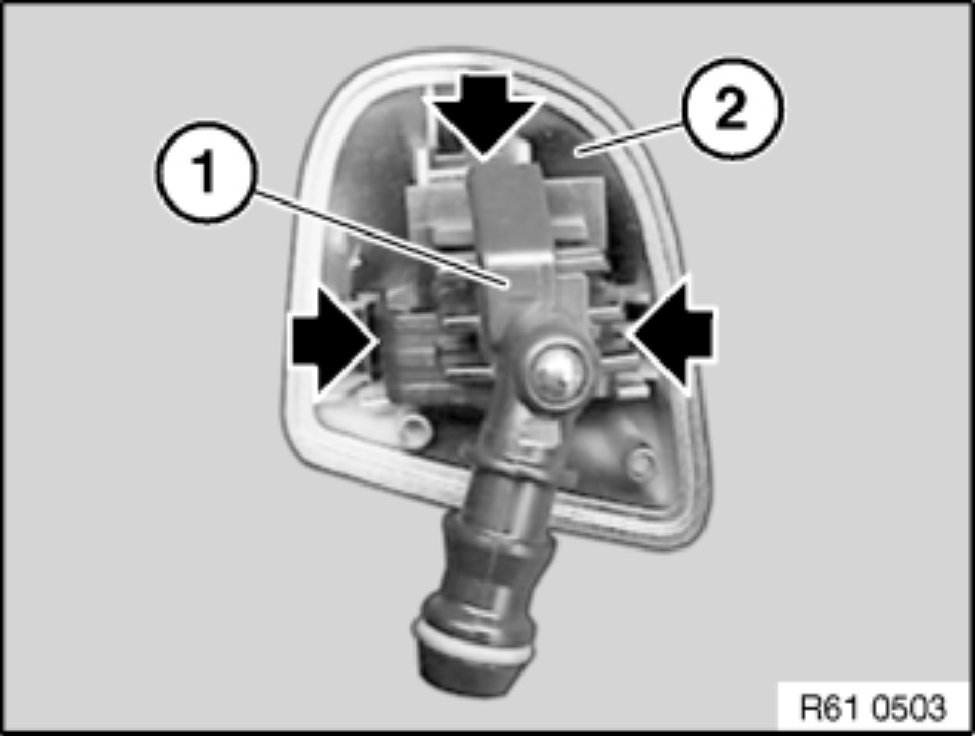

Unclip spray nozzle (1) from trim (2).
