Replacing Spray Nozzle For Rear Window Washer Unit

Removing And Installing/Replacing Spray Nozzle For Rear Window Washer Unit

Special tools required:
- 00 9 317

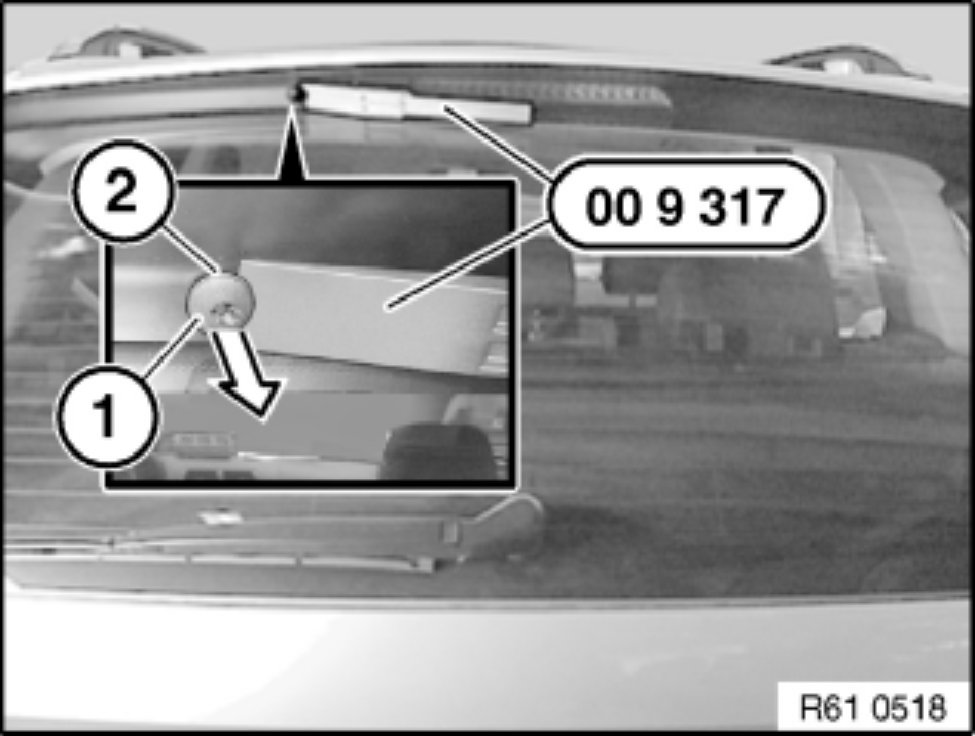

Lever spray nozzle for rear window washer system (1) with special tool 00 9 317 out of spray nozzle holder (2).

Installation:

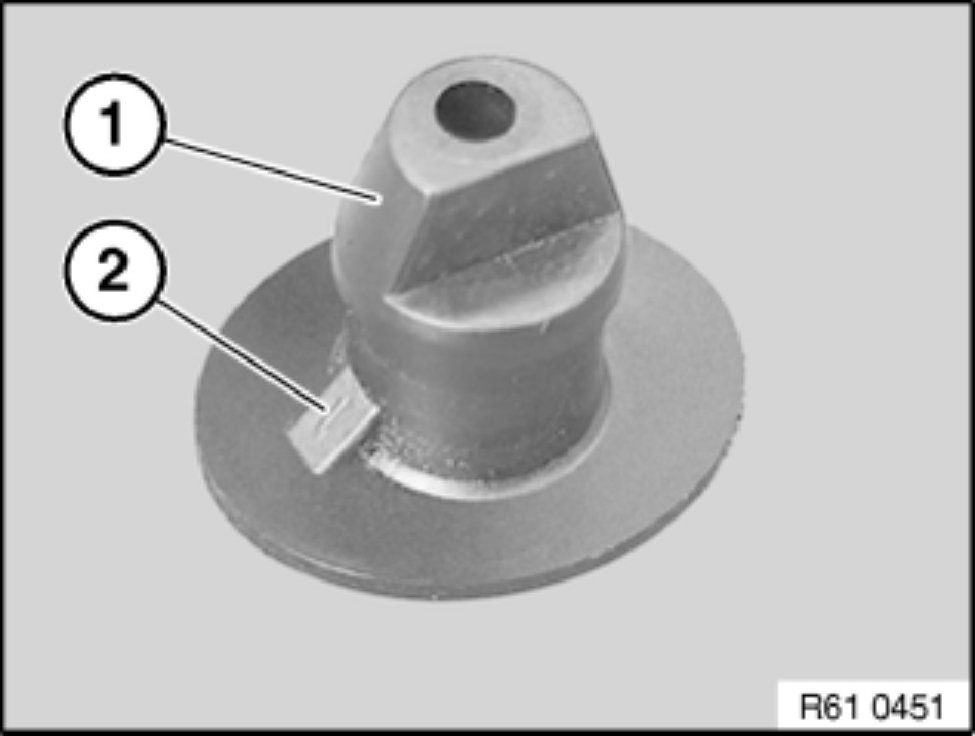

Insert lug (2) of spray nozzle for rear window washer system (1) into groove of spray nozzle holder.

Replacement only:
Adjusting spray nozzle on rear window washer unit.
