Replacing A Jet Nozzle In Windshield Washer System

Removing And Installing/Replacing A Jet Nozzle In Windshield Washer System

Special tools required:
- 00 9 317

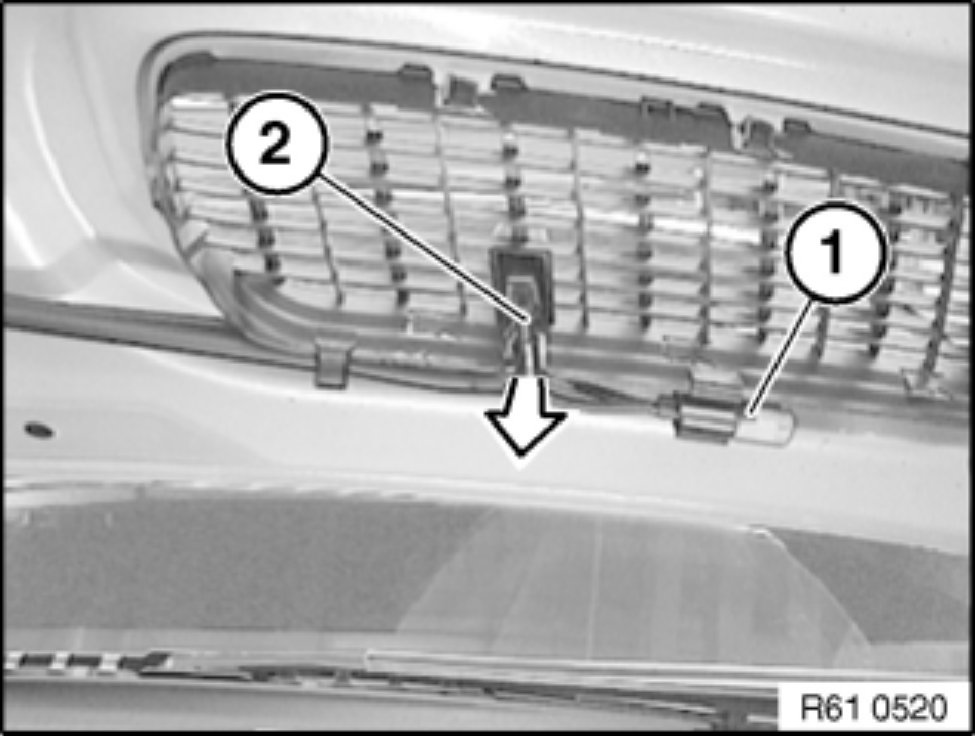

Unclip plug connection (1) and disconnect.
Detach angle (2) or T-piece from jet nozzle.

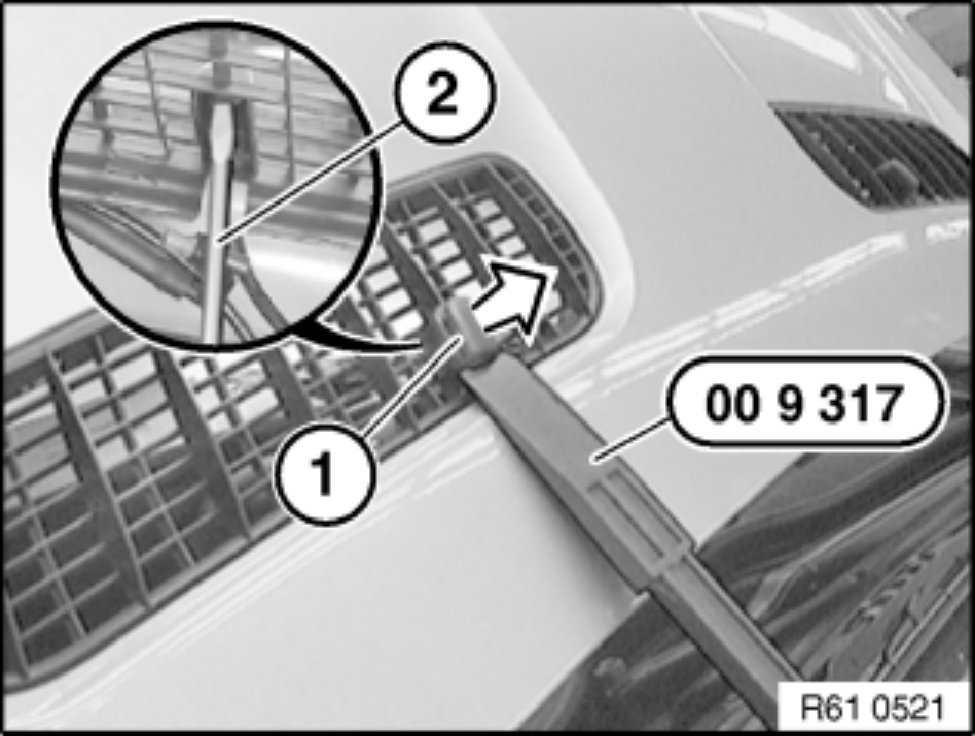

Unlock jet nozzle (1) with a suitable screwdriver (2).
Lever out jet nozzle (1) with special tool 00 9 317 and remove.

Installation:
Ensure hose is laid without kinks.

Adjust jet nozzle.
