Replacing Blind At Side Window of Left or Right Rear Door




Removing And Installing Or Replacing Blind At Side Window Of Left Or Right Rear Door

Remove rear door trim panel.

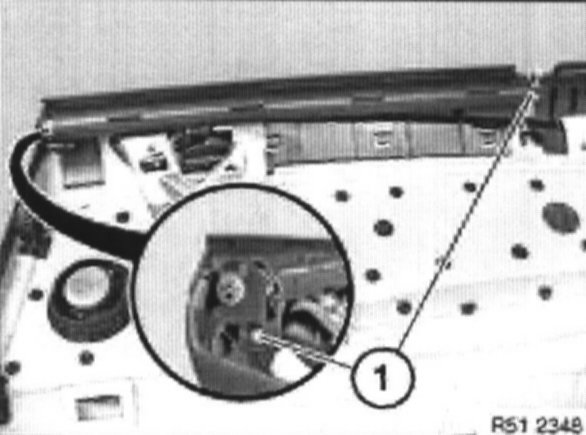

Release screws (1).

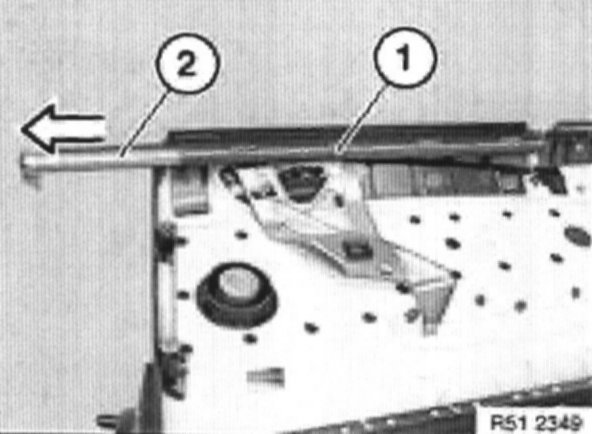

Raise cover (1) and pull out roller sun blind (2).
