Replacing Window Cavity Seal on Inner Left or Right Rear Door

Replacing Window Cavity Seal On Inner Left Or Right Rear Door

Remove rear door trim panel.

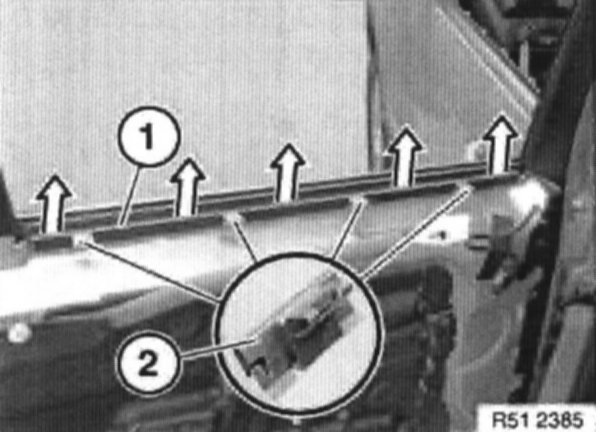

Pull window cavity seal (1) off rear door.

Installation Note: If necessary, replace faulty clips (2).
