Replacing Trim on Window Frame of Rear Door, Rear Left or Right

Removing And Installing/Replacing Trim On Window Frame Of Rear Door, Rear Left Or Right

Remove window cavity covering strip on outside.

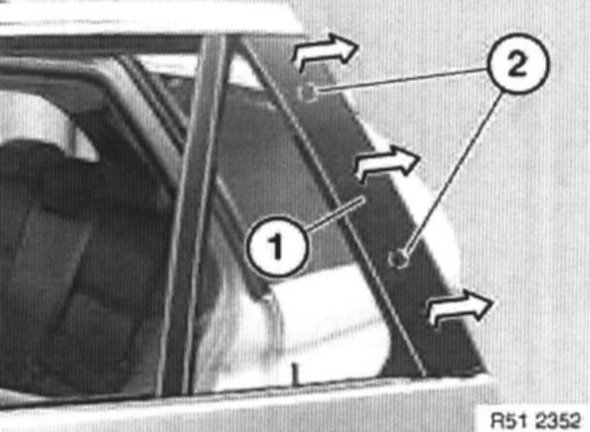

Unclip trim (1) from clips (2) and detach towards rear.







Installation:

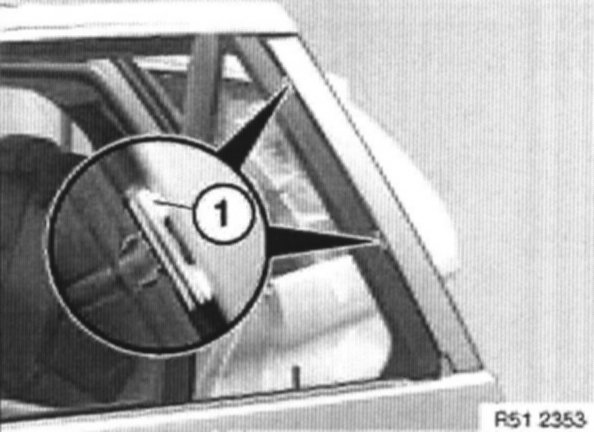

Retainers (1) must not be damaged.

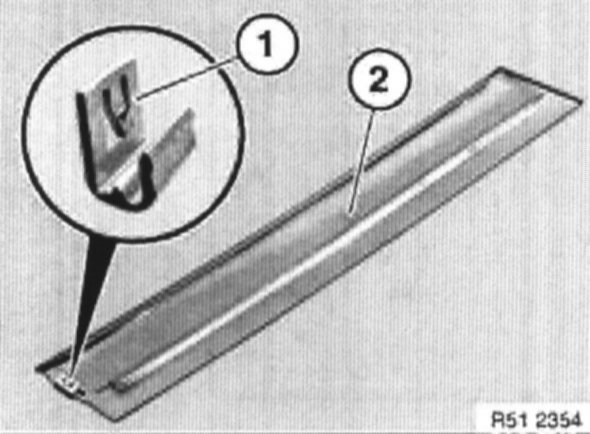

If necessary, replace faulty clips (1) on trim (2).
