Replacing Rear Left or Right Door Window

51 34 171 Replacing Rear Left Or Right Door Window

Remove sound insulation on rear door.

NOTE:
- When removing the power window lift (51 37 000), do not remove the door window glass.
- Only for removal and installation of door window glass:
- If necessary, remove trim on window frame of rear door (front).

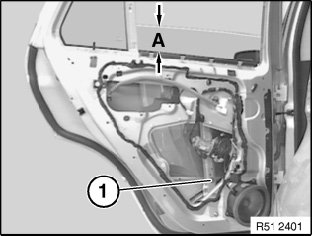

Open door window glass to distance (A).
A approx. 85 mm

CAUTION: Disconnect battery negative lead.

Loosen bolt (1).

NOTE:
- When removing the power window lift (51 37 000), do not remove the door window glass.
- If necessary, stow door window glass towards bottom in rear door.

After removing or replacing door window glass:
Remove door window glass towards top.







Installation:

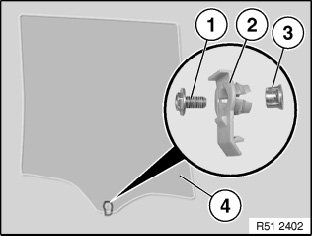

Each time the door window glass is removed or replaced, the holder (2) must be replaced.
If necessary, fit new screw (1) and nut (3) on door window glass (4).

NOTE: Door window glass does not need to be adjusted.
