Removing and Installing/Replacing Cover (Anti-Trapping Protection) on Door Window Frame (Rear Door), Inside Left or Right

51 34 160 Removing And Installing/Replacing Cover (Anti-trapping Protection) On Door Window Frame (Rear Door), Inside Left Or Right

Remove rear door trim panel.

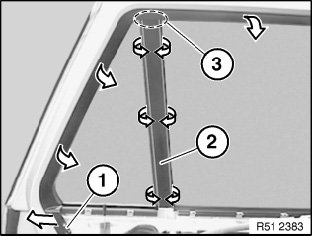

Carefully lever out clip (1) and lever out trim (2) in rear area.
Disconnect plug connection (3).







Carefully lever out clip (1).
Lift out cover (1) from fixed door window.

NOTE: Do not tear off cover (1) in area (2).

Lift out and remove cover (2).







Installation:

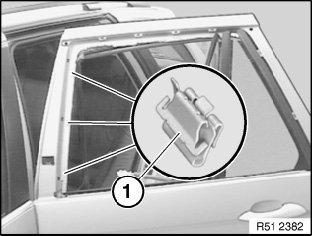

If applicable, replace defective clips (1).







Installation:

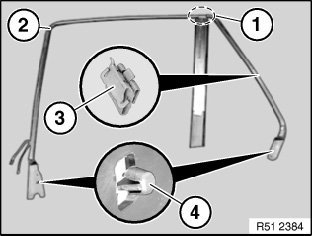

Connection (1) of cover (2) must not be damaged.
If necessary, replace faulty clip (3).
Clips (4) must not be damaged.
Carry out function check.
