Transfer Case Mount: Tools and Equipment

22 1 010 Set Of Tools
Minimum set: Mechanical tools

In conjunction with: 33 3 144

Note: For removing and fitting transfer case rubber mount Series: E46/1 6, E53

SI number: 11599(483)

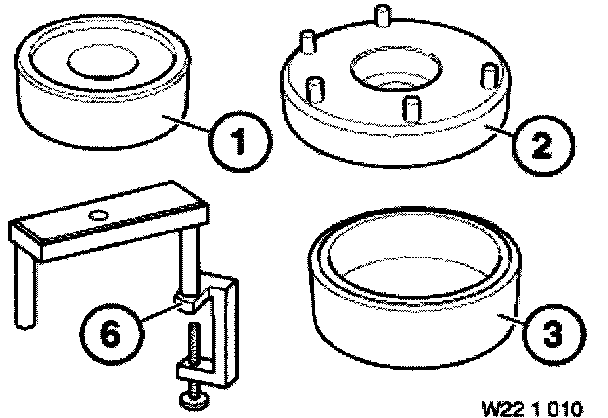

Order number: 22 1 010 Set of tools

Consisting of:
3 = 221 013 Thrust piece

Note: For fitting transfer case rubber mount - Series: E53

22 1 014 Thrust piece

Note: For fitting transfer case rubber mount - Series: E46/16

22 1 015 Disc

Note: Model series: E46/16

22 1 017 Nut

Note: For fitting and removing transfer case rubber mount - series: E46/16

22 1 018 Bush

Note: For removing transfer case rubber mount - series: E53

22 1 019 Disc

Note: For fitting transfer case rubber mount - Series: E53
